TURN SIGNAL-TURN SIGNAL RELAY

A100 AS100 AC100 1969 USA (E03)

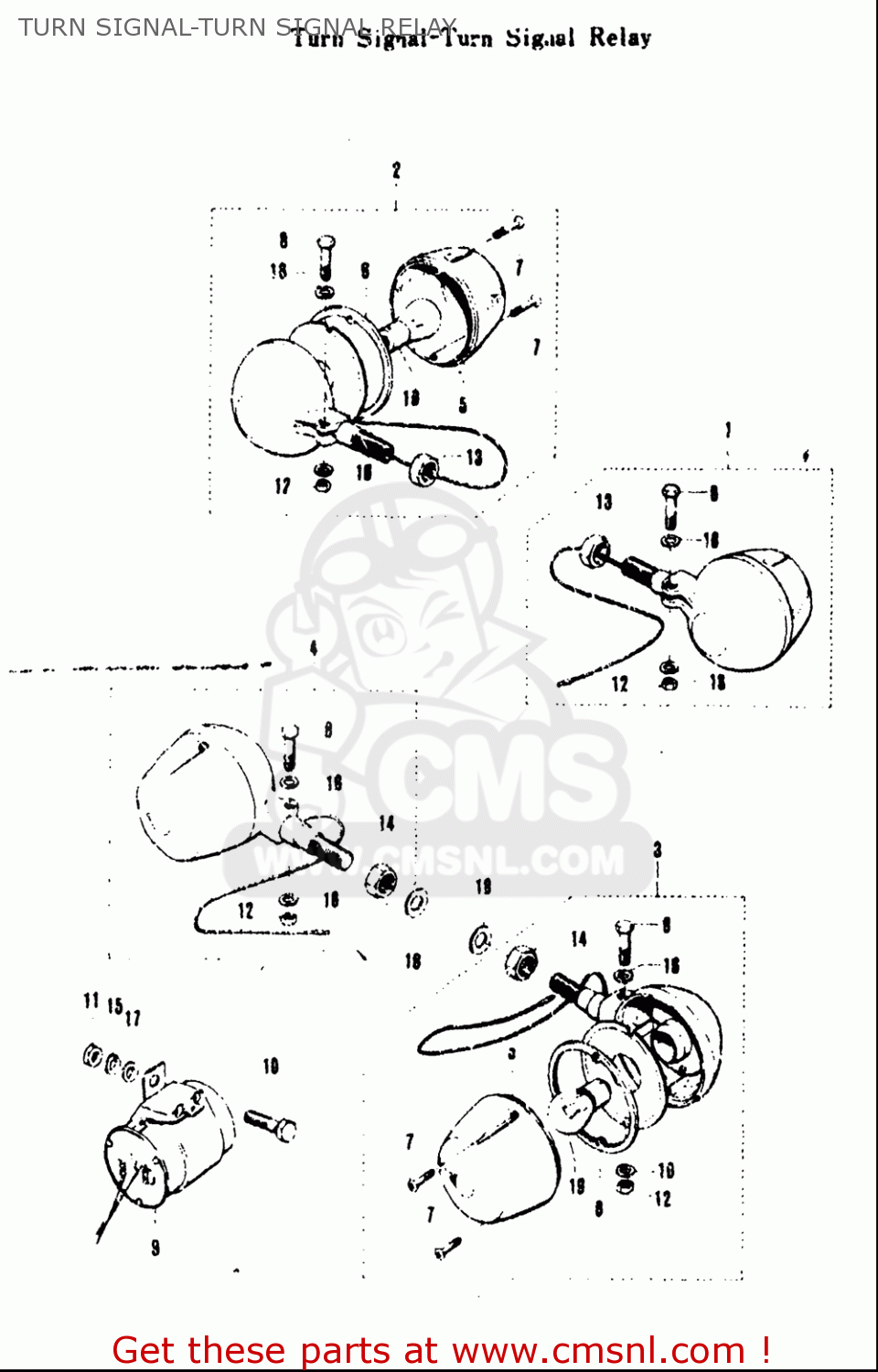

Turn signal-turn signal relay diagram A100 AS100 AC100 1969 USA (E03)

TURN SIGNAL-TURN SIGNAL RELAY A100 AS100 AC100 1969 USA (E03)

TURN SIGNAL-TURN SIGNAL RELAY A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

5

3561212611
ref: 5

LENS,TURNSIGNAL

€ 11.00

6

3561303610
ref: 6

GASKET,TURNSIGNAL LENS (NAS)

€ 24.00

11

0831000067
ref: 11

NUT

€ 2.50

12

0831000067
ref: 12

NUT

€ 2.50

13

0831000087
ref: 13

NUT

€ 2.00

14

0831000107
ref: 14

NUT

€ 2.50

15

0832101067
ref: 15

WASHER,LOCK

€ 2.50

16

083220106A
ref: 16

WASHER

€ 2.00

17

0832201067
ref: 17

WASHER

€ 2.00

18

0832201107
ref: 18

WASHER

€ 2.50
