CYLINDER-CRANKCASE

A100 AS100 AC100 1969 USA (E03)

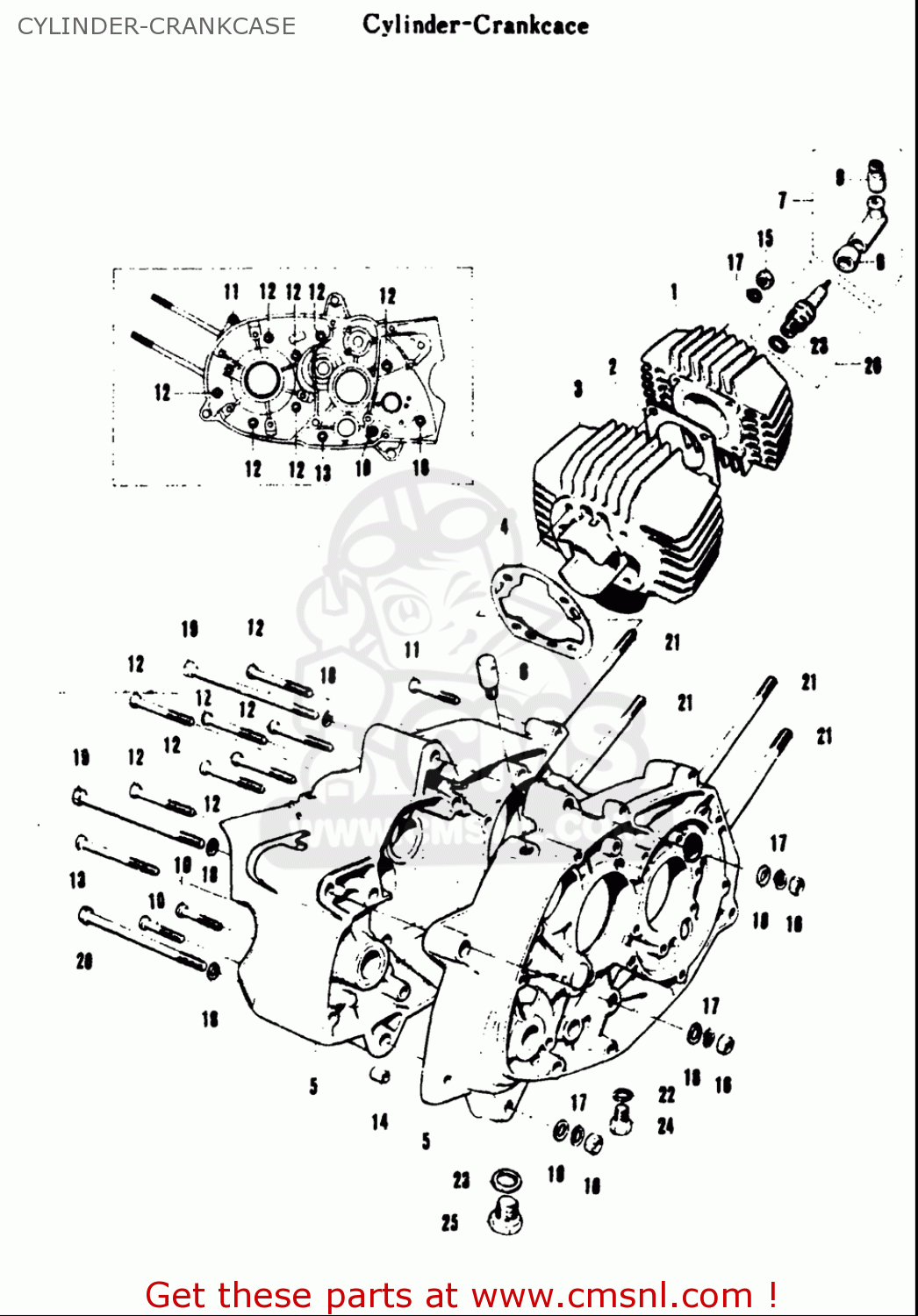

Cylinder-crankcase diagram A100 AS100 AC100 1969 USA (E03)

CYLINDER-CRANKCASE A100 AS100 AC100 1969 USA (E03)

CYLINDER-CRANKCASE A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

2

1114112401
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 8.00

4

1124112010
ref: 4

GASKET,CYLINDER

€ 5.50

6

2482109001
ref: 6

PLUG,T/M BREATHER

€ 5.50

10

0211206357
ref: 10

SCREW

€ 2.50

11

0211206407
ref: 11

SCREW

€ 2.00

12

0211206457
ref: 12

SCREW

€ 2.00

13

0211206607
ref: 13

SCREW

€ 2.50

14

0421109129
ref: 14

PIN

€ 2.00

15

0831000087
ref: 15

NUT

€ 2.00

16

0831000087
ref: 16

NUT

€ 2.00

17

0832101087
ref: 17

WASHER,LOCK

€ 2.00

18

0832201087
ref: 18

WASHER

€ 2.00

19

0910008228
ref: 19

BOLT(8X105)

€ 4.00

21

0910808006
ref: 21

BOLT,STUD

€ 5.00

22

0916810002
ref: 22

GASKET(10X14X3.6) (NAS)

€ 2.00

23

0916814004
ref: 23

GASKET(14X19.2X2) (NAS)

€ 2.50

24

0924710001
ref: 24

PLUG

€ 3.00

25

0924714002
ref: 25

PLUG(MAGNETO)

€ 5.00
