SPEEDOMETER-HEAD LAMP
A100 AS100 AC100 1969 USA (E03)

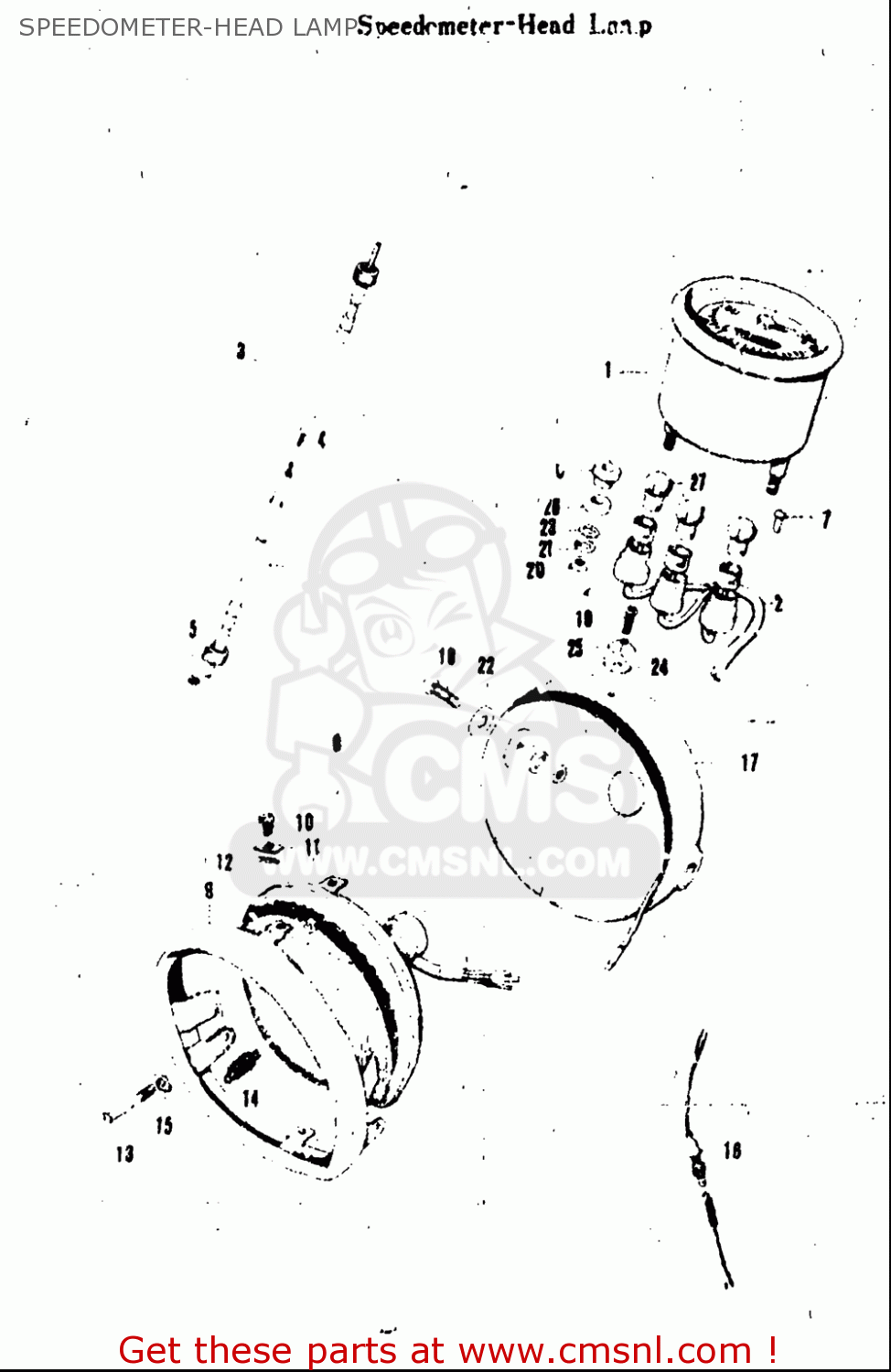

Speedometer-head lamp diagram A100 AS100 AC100 1969 USA (E03)
SPEEDOMETER-HEAD LAMP A100 AS100 AC100 1969 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5
3492801030
ref: 5
SEAL,OIL METER CABLE
€ 4.00
11
3515548510
ref: 11
NUT
€ 2.00
13
3515112610
ref: 13
SCREW,HEADLAMP ADJUST
€ 0.00
14
3515412610
ref: 14
SPRING,HEADLAMP ADJUST
€ 0.00
15
3515501321
ref: 15
NUT,HEADLAMP ADJUSTER
€ 2.50
18
0120408257
ref: 18
BOLT
€ 2.00
19
021220412A
ref: 19
SCREW
€ 2.00
20
0831000057
ref: 20
NUT
€ 2.50
21
0832101057
ref: 21
WASHER,LOCK
€ 2.00
22
0832201087
ref: 22
WASHER
€ 2.00
23
0916005006
ref: 23
WASHER (5.5X18X1.6)
€ 4.00
24
0916104005
ref: 24
WASHER(4X12.5X0.3)
€ 1.50
25
0916504004
ref: 25
WASHER
€ 3.00
26
0932008010
ref: 26
CUSHION
€ 3.00
