OIL TANK-OIL TANK OUTLET

A100 AS100 AC100 1969 USA (E03)

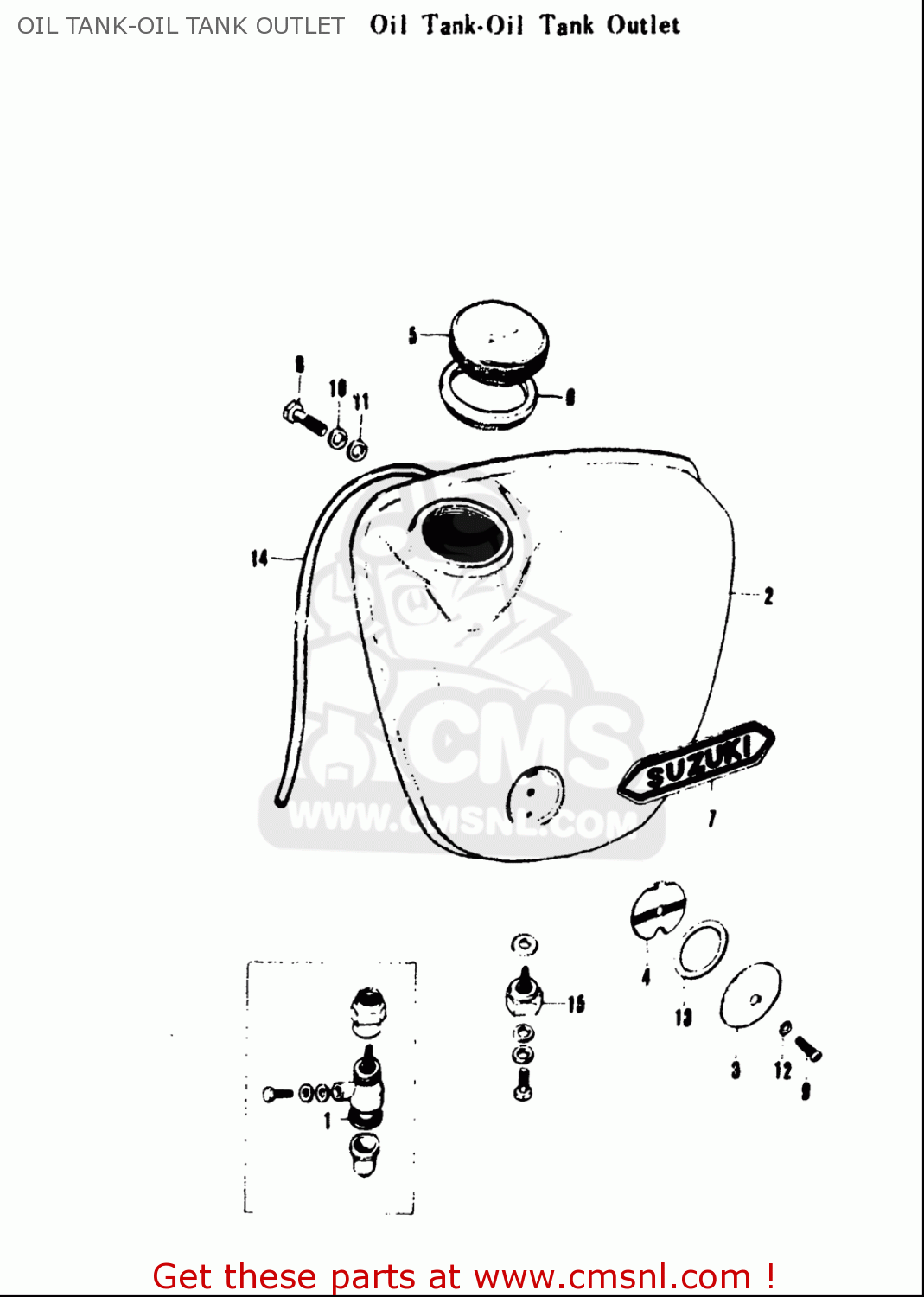

Oil tank-oil tank outlet diagram A100 AS100 AC100 1969 USA (E03)

OIL TANK-OIL TANK OUTLET A100 AS100 AC100 1969 USA (E03)
OIL TANK-OIL TANK OUTLET A100 AS100 AC100 1969 USA (E03)
OIL TANK-OIL TANK OUTLET A100 AS100 AC100 1969 USA (E03)
prices are in EUR
ref
part #
description
quantity
4
4464011843
ref: 4
LENS SET,OIL INSPECTION
4464011843
€ 8.50
5
4465111040
ref: 5
CAP,OIL TANK
4465111040
€ 14.00
6
4466111000
ref: 6
GASKET,OIL TANK FILLER CAP (NAS)
4466111000
€ 4.00
9
0211205167
ref: 9
SCREW
0211205167
€ 2.50
10
0832101067
ref: 10
WASHER,LOCK
0832101067
€ 2.50
11
0916108002
ref: 11
WASHER
0916108002
€ 2.50
12
0916805001
ref: 12
GASKET(5X9.5X1) (NAS)
0916805001
€ 2.00
13
0928023001
ref: 13
O RING(D:3,ID:23)
0928023001
€ 2.00
14
093515080300B
ref: 14
HOSE(5X8X2000)
093515080300B
€ 10.00
