THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH

A100 AS100 AC100 1969 USA (E03)

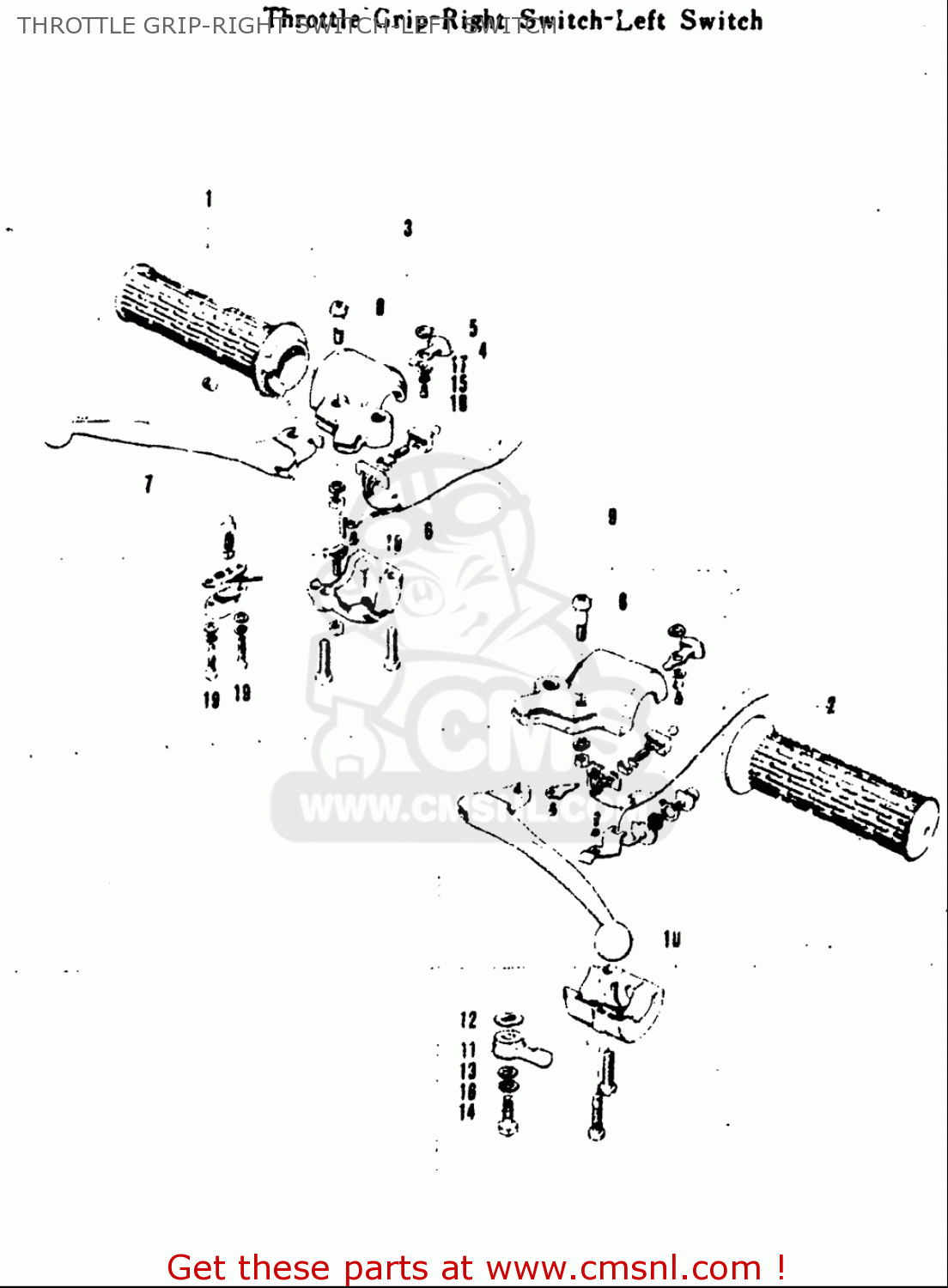

Throttle grip-right switch-left switch diagram A100 AS100 AC100 1969 USA (E03)

THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH A100 AS100 AC100 1969 USA (E03)

THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711020010
ref: 1

GRIP,THROTTLE

€ 18.00

7

5742127212
ref: 7

LEVER,BRAKE

€ 28.00

8

5743101012
ref: 8

BOLT,LEVER PIVOT

€ 5.00

10

5762127210
ref: 10

LEVER,CLUTCH

€ 27.50

11

5872125611
ref: 11

LEVER,STARTER

€ 27.00

12

5872203010
ref: 12

WASHER,ADJUSTER

€ 3.00

13

0916006129
ref: 13

WASHER(6.5X16X1)

€ 2.00

15

0916203001
ref: 15

WASHER,LOCK

€ 1.50

16

0832101067
ref: 16

WASHER,LOCK

€ 2.50

17

0832201037
ref: 17

WASHER

€ 2.00
