GEAR SHIFTING CAM-GEAR SHIFTING LEVER-KICK STARTER LEVER

A100 AS100 AC100 1969 USA (E03)

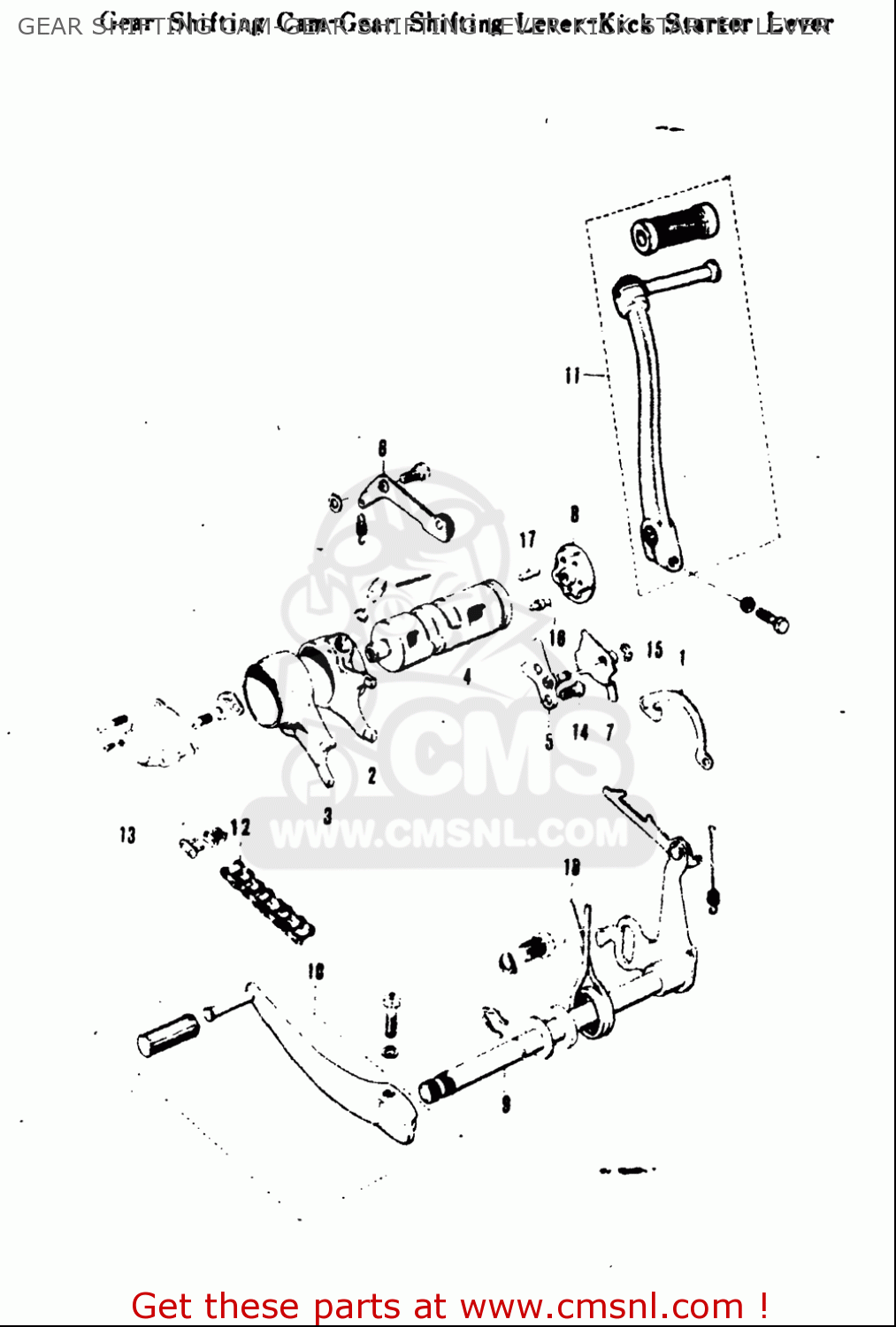

Gear shifting cam-gear shifting lever-kick starter lever diagram A100 AS100 AC100 1969 USA (E03)

GEAR SHIFTING CAM-GEAR SHIFTING LEVER-KICK STARTER LEVER A100 AS100 AC100 1969 USA (E03)

GEAR SHIFTING CAM-GEAR SHIFTING LEVER-KICK STARTER LEVER A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

3

2522112100
ref: 3

FORK,GEAR SHIFT NO.2

€ 40.00

5

2534012101
ref: 5

GUIDE,GEAR SHIFT CAM

€ 11.50

7

2537012101
ref: 7

PAWL,GEAR SHIFT CAM STOPPER

€ 5.50

9

2551012102
ref: 9

SHAFT,GEAR SHIFT

€ 40.00

14

0212206167
ref: 14

SCREW

€ 2.00

15

083321105A
ref: 15

E RING

€ 1.50

17

0926104003
ref: 17

PIN(4X20)

€ 2.00

18

0944426005
ref: 18

SPRING

€ 4.50
