THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH

A100 AS100 AC100 1969 USA (E03)

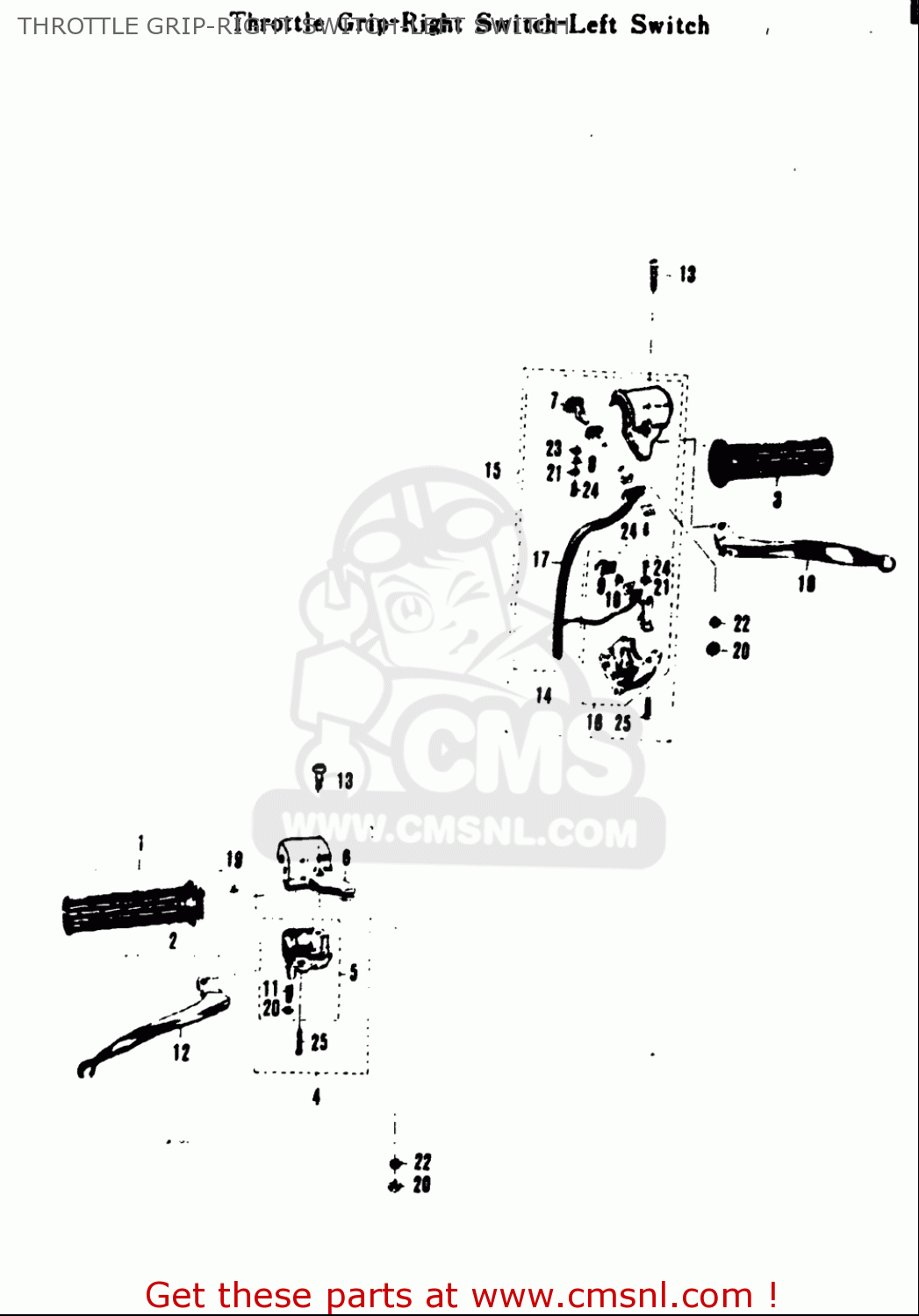

Throttle grip-right switch-left switch diagram A100 AS100 AC100 1969 USA (E03)

THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH A100 AS100 AC100 1969 USA (E03)

THROTTLE GRIP-RIGHT SWITCH-LEFT SWITCH A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711020601
ref: 1

GRIP,THROTTLE

€ 11.50

9

5737001311
ref: 9

BUTTON

€ 4.00

10

5738201311
ref: 10

SPRING

€ 3.00

18

5762105010
ref: 18

LEVER,CLUTCH

€ 29.50

19

5863107010
ref: 19

PIECE,THROTTLE END

€ 3.00

20

0831000057
ref: 20

NUT

€ 2.50

21

0916203001
ref: 21

WASHER,LOCK

€ 1.50

22

0832101057
ref: 22

WASHER,LOCK

€ 2.00

23

0832201037
ref: 23

WASHER

€ 2.00

25

0912505105
ref: 25

SCREW

€ 4.50
