EXHAUST PIPE-MUFFLER
A100 AS100 AC100 1969 USA (E03)

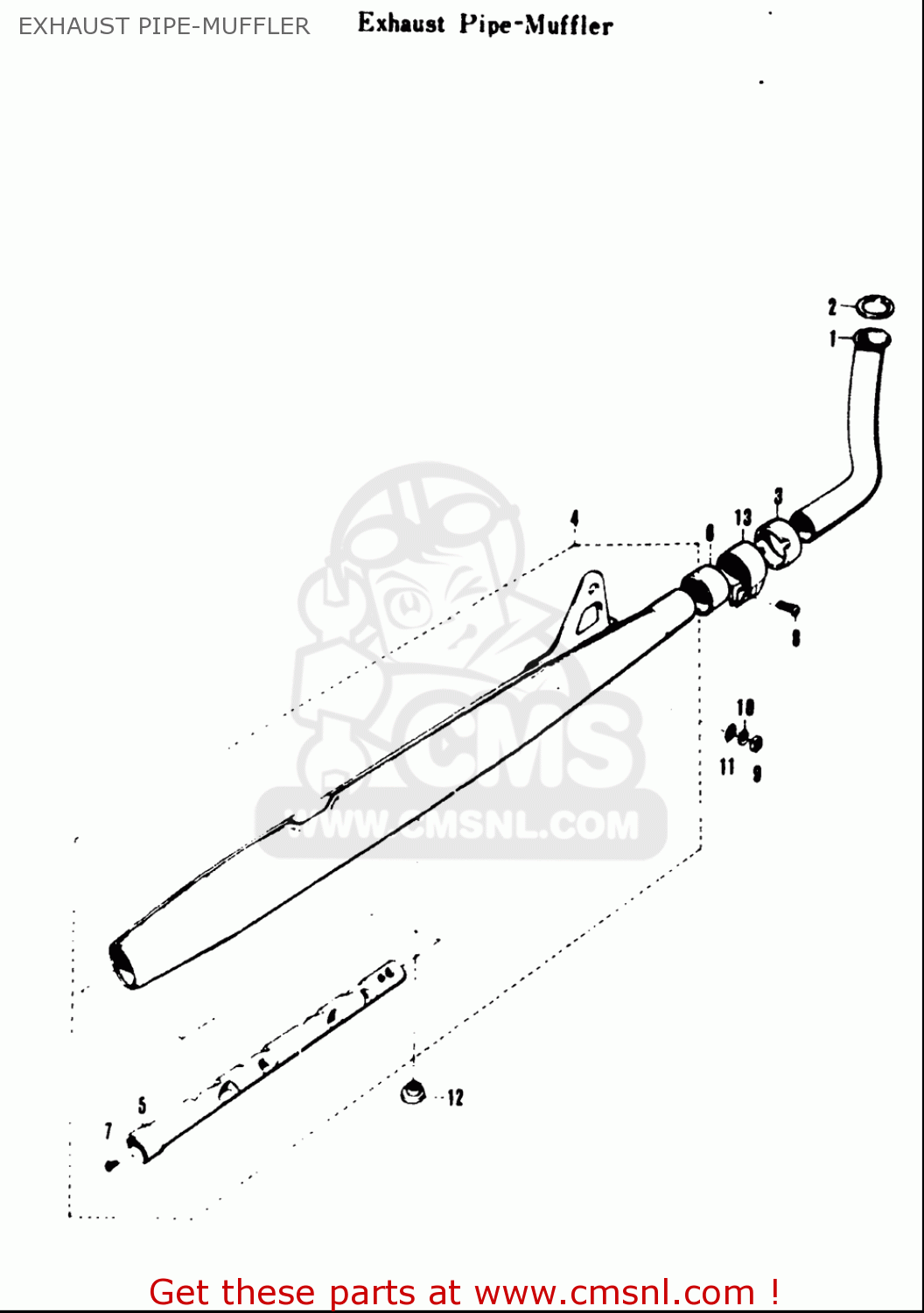

Exhaust pipe-muffler diagram A100 AS100 AC100 1969 USA (E03)
EXHAUST PIPE-MUFFLER A100 AS100 AC100 1969 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415112000
ref: 1
PIPE,EXHAUST
€ 83.50
2
1418142A00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 8.50
3
1418212600
ref: 3
CLAMP,EXHAUST PIPE
€ 73.50
5
1451005003
ref: 5
PIPE,BAFFLE
€ 24.00
6
1477112011
ref: 6
CONNECTOR,MUFFLER
€ 15.50
7
0912505122
ref: 7
SCREW(5X6)
€ 4.00
9
0831000087
ref: 9
NUT
€ 2.00
10
0832101087
ref: 10
WASHER,LOCK
€ 2.00
11
0832101087
ref: 11
WASHER,LOCK
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
0932110002
ref: 12
CUSHION(11.5X22X20)
€ 2.00
