FRONT WHEEL

A100 AS100 AC100 1969 USA (E03)

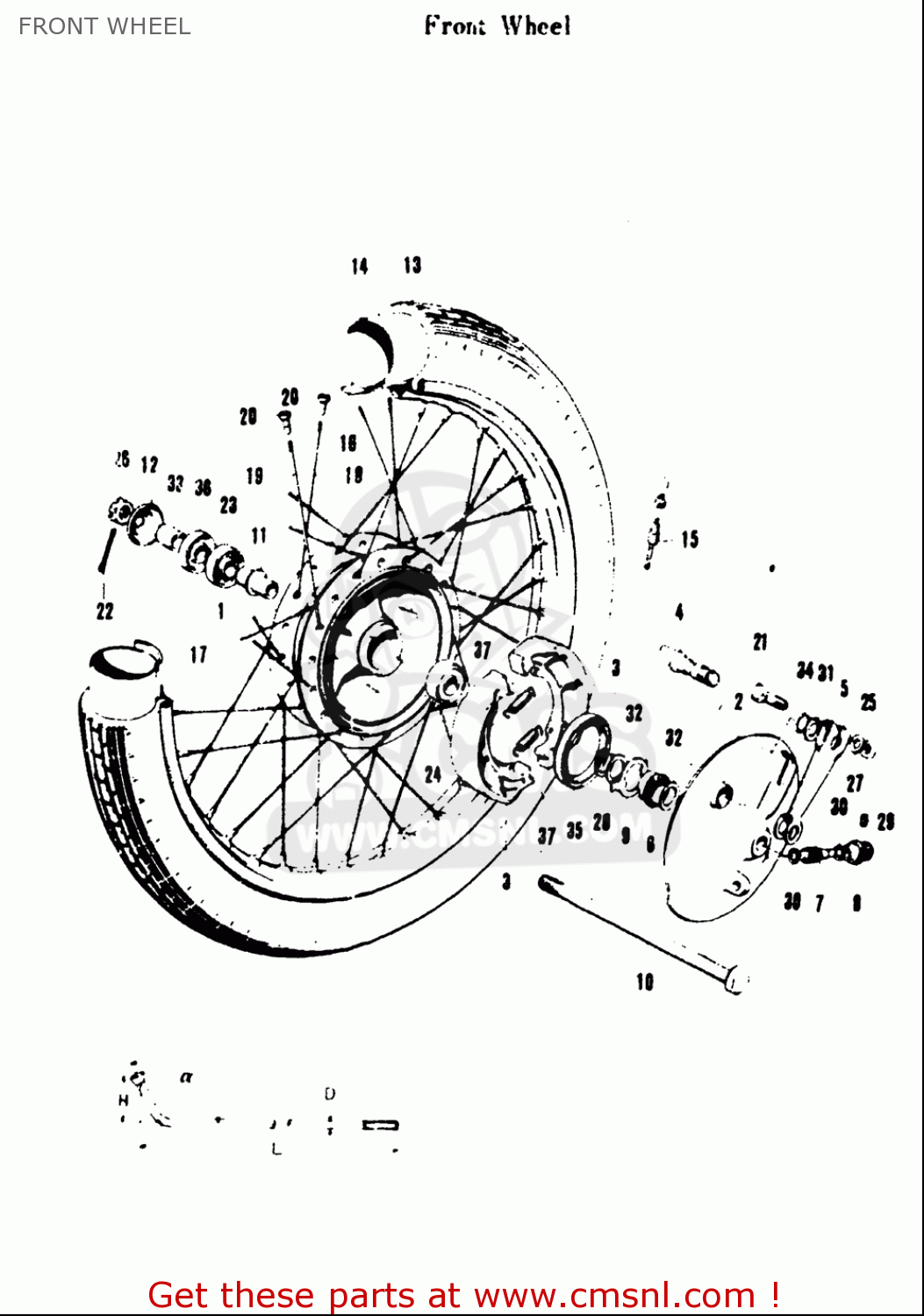

Front wheel diagram A100 AS100 AC100 1969 USA (E03)

FRONT WHEEL A100 AS100 AC100 1969 USA (E03)

FRONT WHEEL A100 AS100 AC100 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

5

5445103002
ref: 5

LEVER,FR BRAKE CAM

€ 10.50

6

5461107002
ref: 6

GEAR,SPEEDOMETER(NT:24)

€ 16.50

9

5466107000
ref: 9

DRIVER,SPEEDOMETER GEAR

€ 3.00

16

5526102B40
ref: 16

PROTECTOR,WHL INR TUBE

€ 3.50

17

5531107020
ref: 17

RIM,WHEEL(1.40X17)

€ 71.00

23

0811363010
ref: 23

BEARING

€ 9.50

24

0814363017
ref: 24

BEARING

€ 14.50

25

0831000067
ref: 25

NUT

€ 2.50

27

0832201067
ref: 27

WASHER

€ 2.00

28

0833111189
ref: 28

CIRCLIP

€ 2.00

29

0913403101
ref: 29

SCREW

€ 1.50

30

0916005001A05
ref: 30

WASHER(5.1X9X0.4)

€ 2.00

31

0916012011
ref: 31

WASHER(12.5X20X1)

€ 1.50

32

0916018002
ref: 32

WASHER(18.5X24X1)

€ 2.00

33

0918012007
ref: 33

SPACER(12X18X19.4)

€ 4.00

34

0928012001
ref: 34

O RING(D:2.5,ID:11.4)

€ 2.50

36

0928418001
ref: 36

OIL SEAL(17X38X5)

€ 12.50
