AIR CLEANER

GN250 1988 (J) USA (E03)

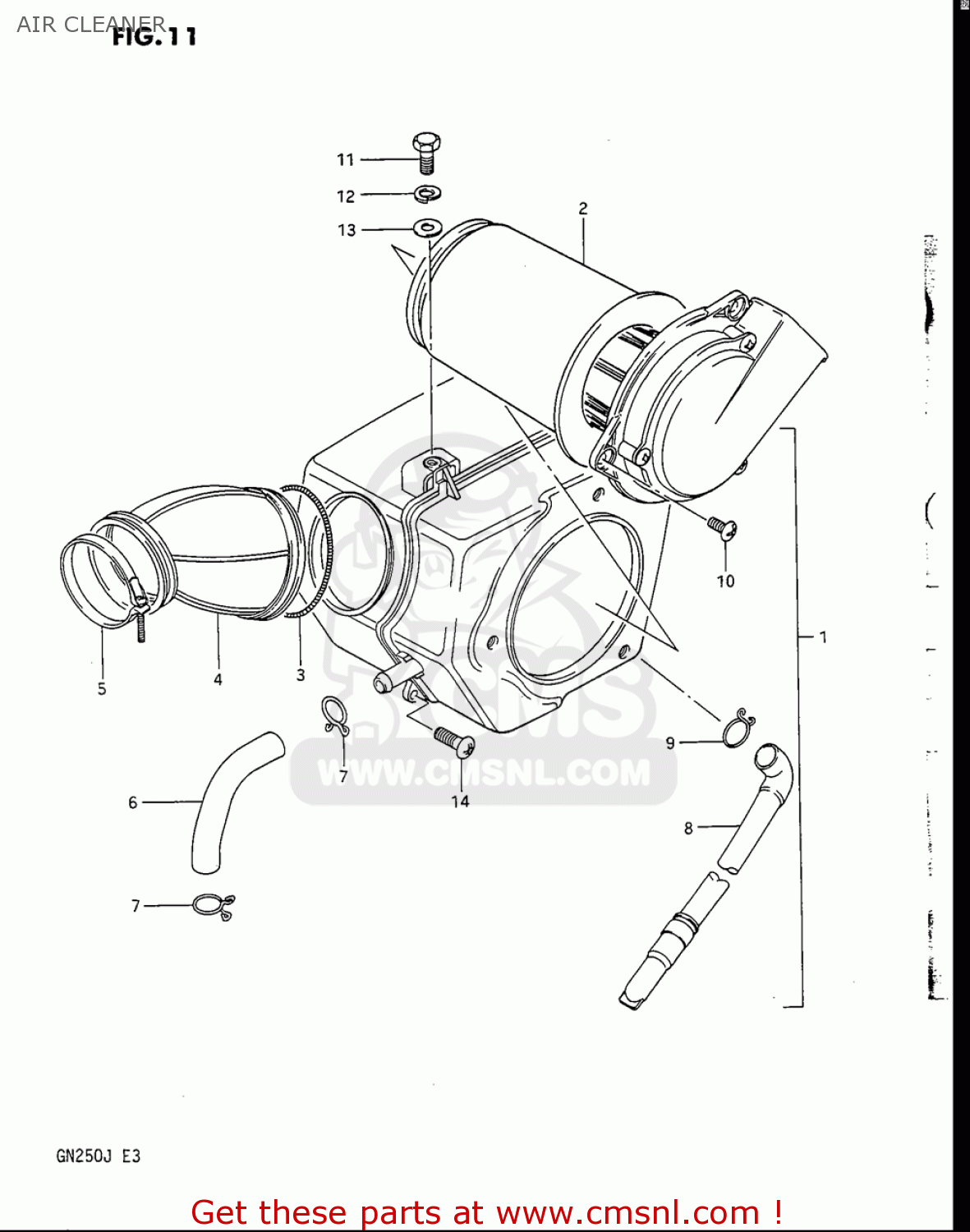

Air cleaner diagram GN250 1988 (J) USA (E03)

AIR CLEANER GN250 1988 (J) USA (E03)

AIR CLEANER GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370025D00
ref: 1

CLEANER ASSY,AIR

€ 153.00

2

1378038301
ref: 2

FILTER

€ 21.50

3

1382638300
ref: 3

CLAMP,AIR CLEANER SIDE

€ 3.00

4

1388138300
ref: 4

TUBE,OUTLET

€ 24.50

5

0940256208
ref: 5

CLAMP

€ 3.50

6

1385338300
ref: 6

TUBE,BREATHER

€ 8.00

7

0940114401
ref: 7

CLIP

€ 2.00

8

1387021458
ref: 8

TUBE,DRAIN

€ 23.50

9

0940113409
ref: 9

CLIP

€ 2.50

10

0214205127
ref: 10

SCREW

€ 1.50

11

0150006167
ref: 11

BOLT

€ 3.00

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

13

0916006084
ref: 13

WASHER(6.5X18X1.6)

€ 2.00

14

0214206167
ref: 14

SCREW

€ 2.00
