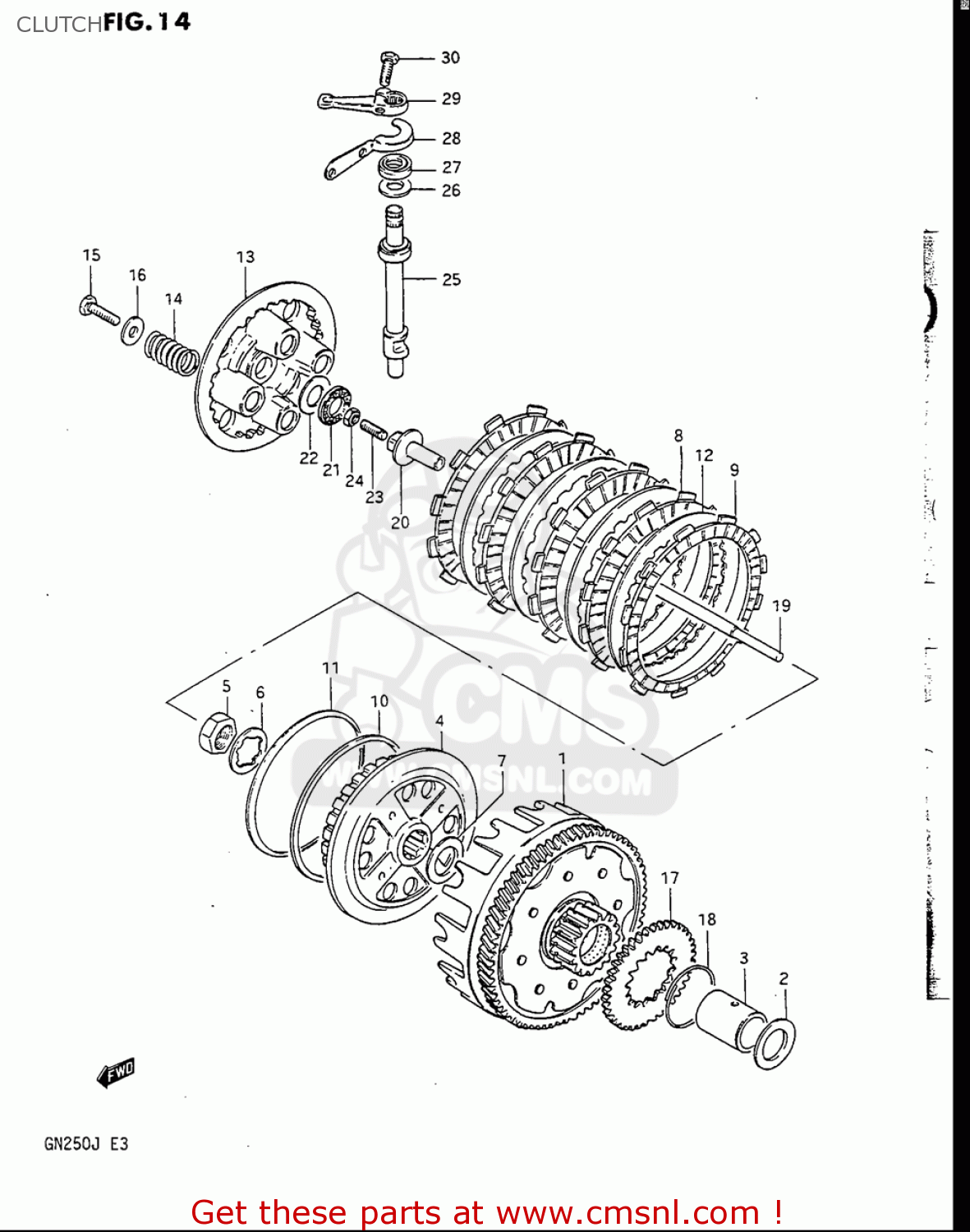

CLUTCH

ref

part #

description

quantity

1

2120038201
ref: 1

GEAR ASSY,PRI DRIVEN

€ 263.00

2

0821122363
ref: 2

WASHER

€ 2.50

3

0918022024
ref: 3

SPACER(22X28X37.5)

€ 16.50

4

2141138201
ref: 4

HUB,CLUTCH SLEEVE

€ 97.50

5

0914022005
ref: 5

NUT

€ 4.00

6

0916722010
ref: 6

WASHER,LOCK

€ 4.00

7

0821122363
ref: 7

WASHER

€ 2.50

8

2144137400
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

9

2144237401
ref: 9

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145114A00
ref: 12

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

13

2146227A00
ref: 13

DISC,CLUTCH PRESSURE

€ 37.00

14

0944019007
ref: 14

SPRING

€ 3.00

15

0150006167
ref: 15

BOLT

€ 3.00

16

0916006066
ref: 16

WASHER(6.5X20X1.6)

€ 2.00

17

1632138200
ref: 17

GEAR,OIL PUMP DRIVE

€ 16.00

18

0938050001
ref: 18

CIRCLIP

€ 2.50

19

2311038201
ref: 19

ROD,CLUTCH PUSH

€ 14.50

20

2312138201
ref: 20

PIECE,CLUTCH PUSH

€ 17.00

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0916015045
ref: 22

WASHER(15.5X28X1)

€ 4.00

23

0913406010
ref: 23

SCREW(6X25)

€ 3.00

24

0831000067
ref: 24

NUT

€ 2.50

25

2312238200
ref: 25

CAMSHAFT,CLUTCH RELEASE

€ 60.50

26

0916014054
ref: 26

WASHER(14.5X22X1)

€ 1.00

27

0928512006
ref: 27

SEAL,OIL (12X22X9)

€ 7.00

28

2311738200
ref: 28

PLATE,CLUTCH RRS CAMSHAFT SEAL

€ 4.50

29

2327145400
ref: 29

ARM,CLUTCH RELEASE

€ 31.50

30

0150006207
ref: 30

BOLT

€ 2.00
