RIGHT HANDLE SWITCH (MODEL J)
GN250 1988 (J) USA (E03)

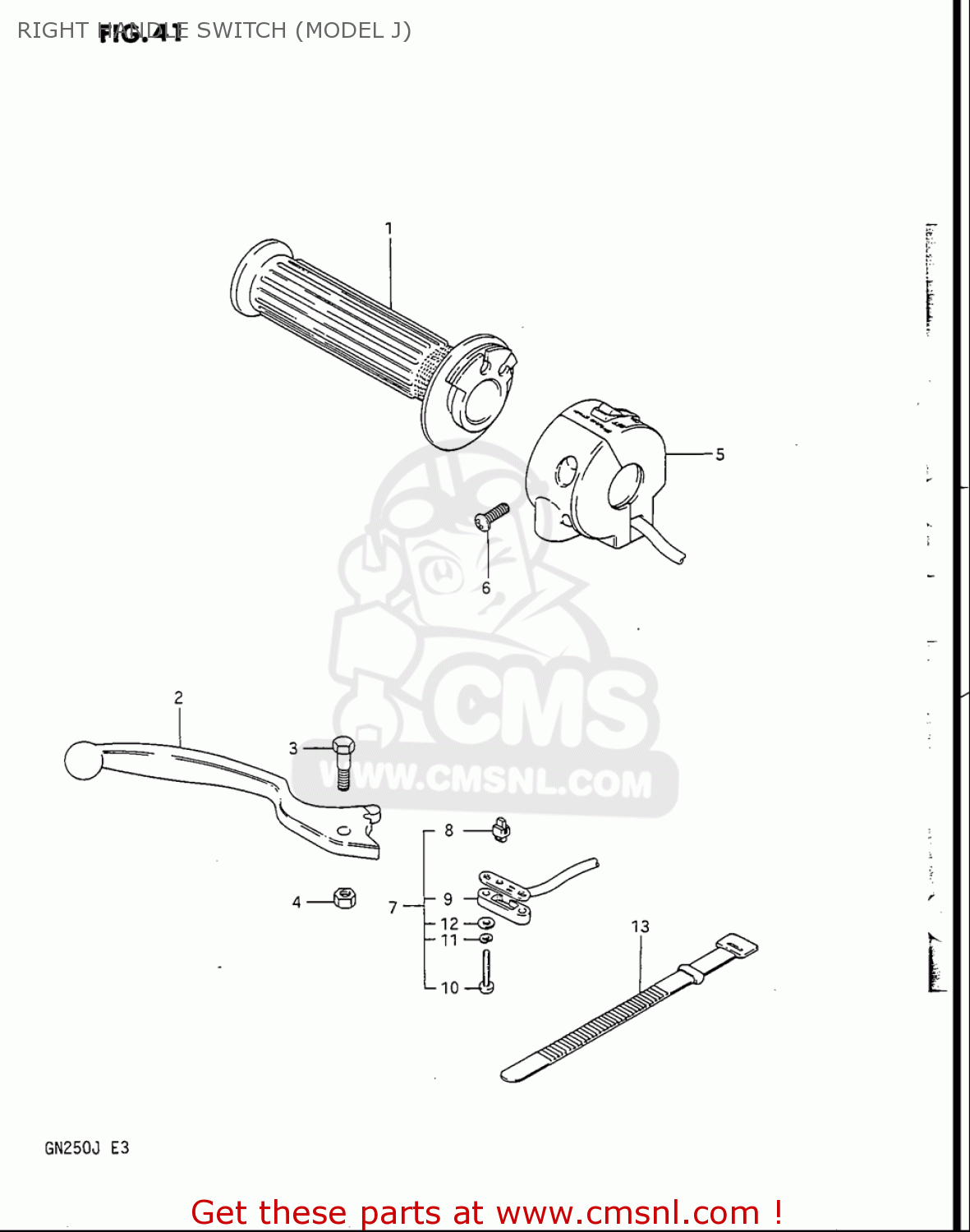

Right handle switch (model j) diagram GN250 1988 (J) USA (E03)
RIGHT HANDLE SWITCH (MODEL J) GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711045000
ref: 1
GRIP,THROTTLE
€ 25.50
2
5742049101
ref: 2
LEVER,BRAKE
€ 36.50
3
5743149100
ref: 3
BOLT,LEVER PIVOT
€ 6.00
4
0831921063
ref: 4
NUT
€ 2.50
5
3720049471
ref: 5
SWITCH ASSY,HANDLE,R
€ 105.00
6
0912505102
ref: 6
SCREW(5X14)
€ 2.50
7
5746045500
ref: 7
SWITCH ASSY,STOP
€ 40.00
8
5746518601
ref: 8
CONTACT,SWITCH
€ 4.50
9
5748133010
ref: 9
COVER,FR BK TERMINAL BASE
€ 19.50
10
0912503105
ref: 10
SCREW
€ 2.50
11
0916203001
ref: 11
WASHER,LOCK
€ 1.50
12
0832201037
ref: 12
WASHER
€ 2.00
13
0940712402
ref: 13
CLAMP(L:120)
€ 3.00
