FRONT BRAKE HOSE (MODEL J)

GN250 1988 (J) USA (E03)

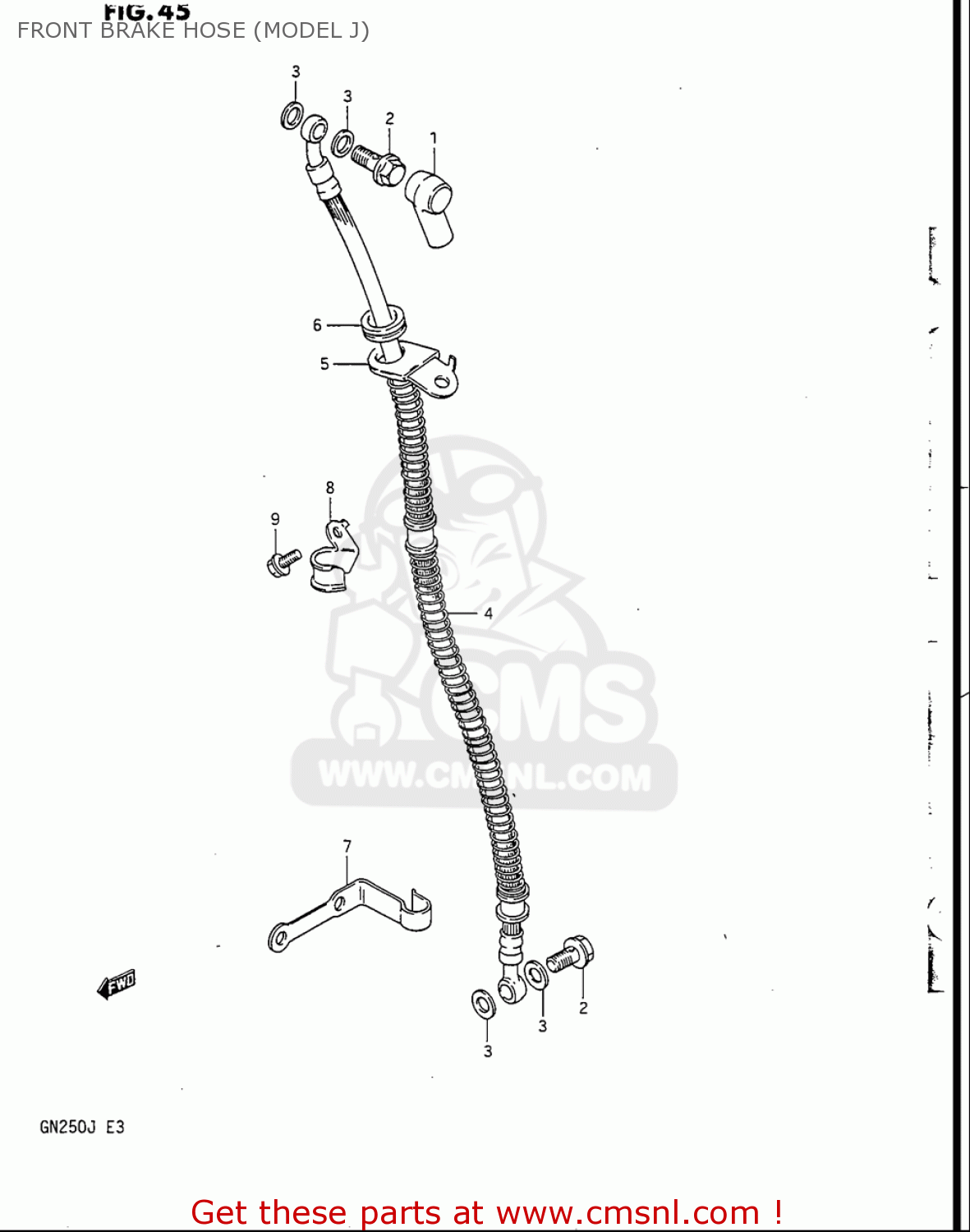

Front brake hose (model j) diagram GN250 1988 (J) USA (E03)

FRONT BRAKE HOSE (MODEL J) GN250 1988 (J) USA (E03)

FRONT BRAKE HOSE (MODEL J) GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948037362
ref: 4

HOSE,FR BRAKE

€ 111.50

5

5924345010
ref: 5

GUIDE,BRAKE HOSE

€ 8.50

6

0930814007
ref: 6

GROMMET

€ 4.00

8

5924611400
ref: 8

GUIDE,BRAKE HOSE NO.3

€ 4.50

9

015500610A
ref: 9

BOLT

€ 2.00
