HEADLAMP HOUSING - FRONT FENDER

GN250 1988 (J) USA (E03)

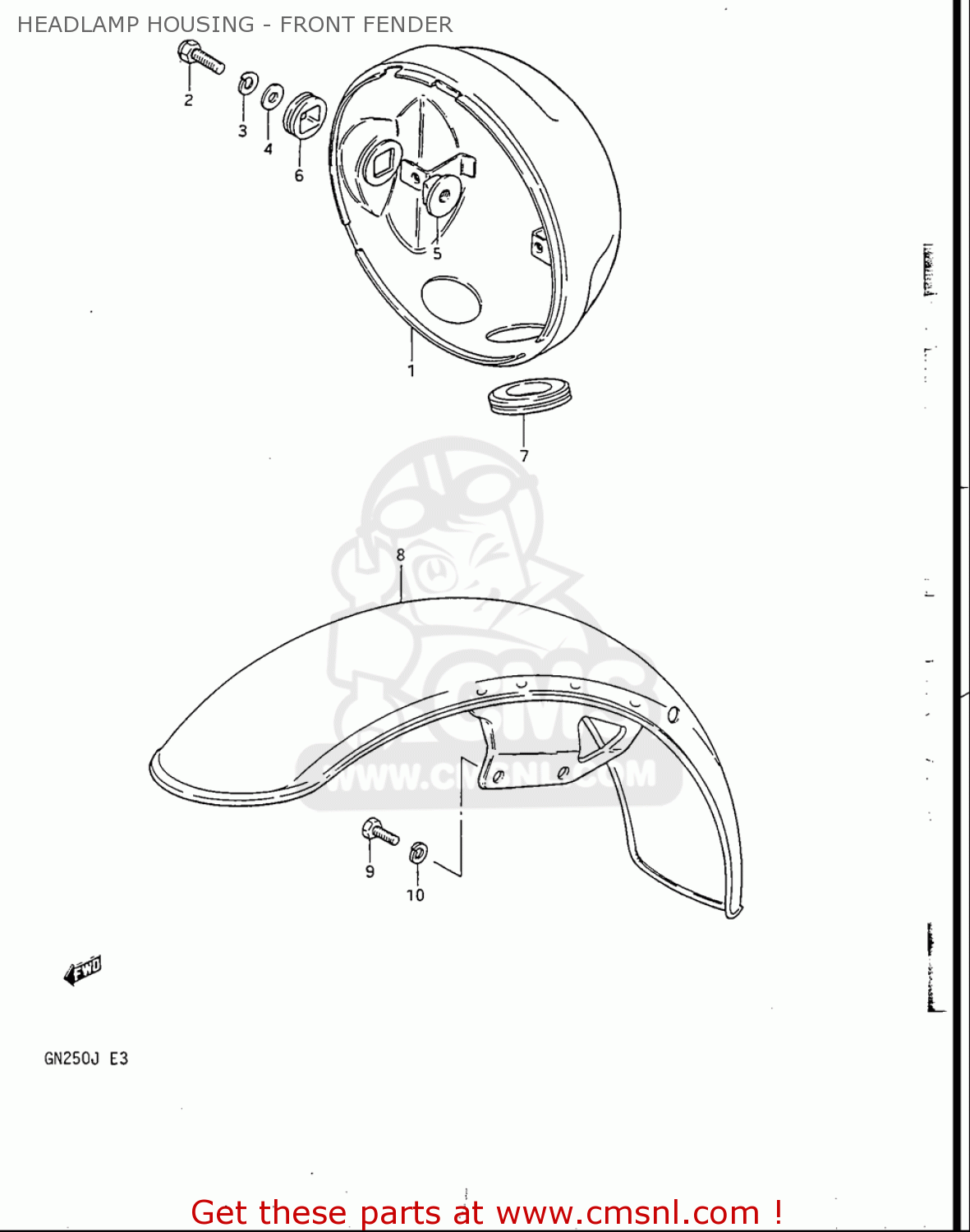

Headlamp housing - front fender diagram GN250 1988 (J) USA (E03)

HEADLAMP HOUSING - FRONT FENDER GN250 1988 (J) USA (E03)

HEADLAMP HOUSING - FRONT FENDER GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181045300
ref: 1

HOUSING,HEADLAMP

€ 46.50

2

0120408207
ref: 2

BOLT

€ 3.00

3

0832101087
ref: 3

WASHER,LOCK

€ 2.00

4

0832201087
ref: 4

WASHER

€ 2.00

5

5182136200
ref: 5

SPACER,HEADLAMP HOUSING

€ 7.50

6

5182727302
ref: 6

CUSHION,HEADLAMP HOUSING

€ 3.00

7

5184531031
ref: 7

GROMMET,HEADLAMP HOUSING

€ 4.00

8

5311038311
ref: 8

FENDER,FR

€ 295.50

9

0150008163
ref: 9

BOLT

€ 2.00

10

0832101087
ref: 10

WASHER,LOCK

€ 2.00
