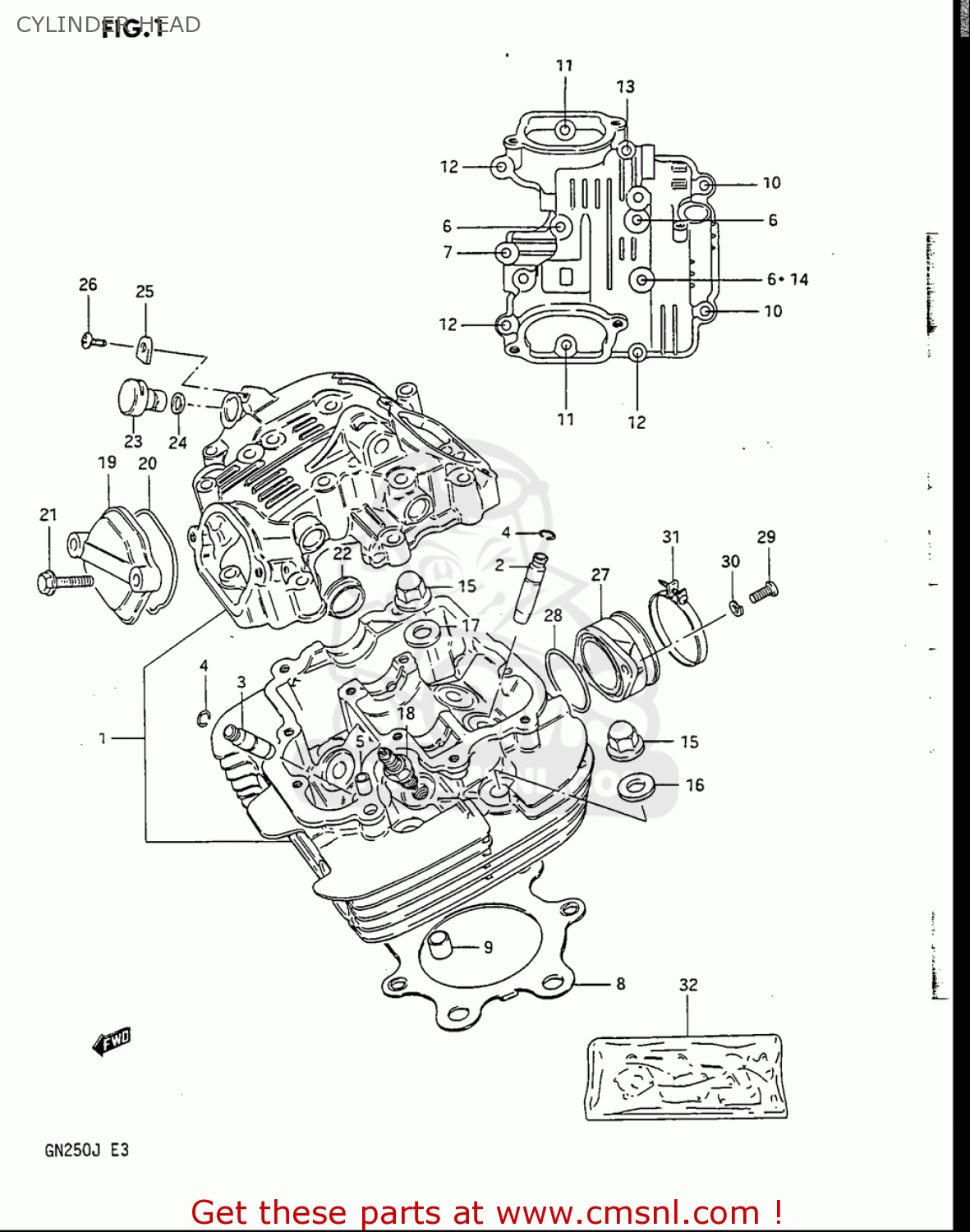

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110038204
ref: 1-1

HEAD ASSY,CYLINDER

€ 787.00

1-2

1110038204
ref: 1-2

HEAD ASSY,CYLINDER

€ 787.00

2

1111538270
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111505270
ref: 3

GUIDE,VALVE

€ 18.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0155006607
ref: 6

BOLT

€ 2.50

7

0155006307
ref: 7

BOLT

€ 2.00

8

1114138201
ref: 8

GASKET,CYLINDER HEAD (NAS)

€ 37.50

9

0421113189
ref: 9

PIN

€ 2.50

10

0910306052
ref: 10

BOLT(6X115)

€ 5.00

11

0155006307
ref: 11

BOLT

€ 2.00

12

0155006457
ref: 12

BOLT

€ 2.50

13

0155006607
ref: 13

BOLT

€ 2.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15

0915910026
ref: 15

NUT

€ 6.00

16

0916010039
ref: 16

WASHER(10.5X22X2.3)

€ 2.50

17

0916810017
ref: 17

GASKET(10.5X22X2) (NAS)

€ 3.50

18-1

0948200144
ref: 18-1

SPARK PLUG D8EA

€ 3.50

18-2

0948200145
ref: 18-2

SPARK PLUG X24ES-U

€ 3.50

19

1117538202
ref: 19

CAP,INSPECTION

€ 23.50

20

0928055003
ref: 20

O RING(D:2.4,ID:23)

€ 4.50

21

0155006257
ref: 21

BOLT

€ 2.50

22

0924130004
ref: 22

PLUG(OD:30)

€ 6.50

23

2644245000
ref: 23

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

24

2645145000A
ref: 24

SEAL,TACHOMETER DRIVEN

€ 4.50

25

2644933000
ref: 25

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

26

0912805101
ref: 26

SCREW(5X12)

€ 1.50

27

1311038200
ref: 27

PIPE,INTAKE

€ 38.50

28

0928040010
ref: 28

O RING(D:2.4,ID:39.7)

€ 3.50

29

0211206167
ref: 29

SCREW

€ 2.50

30

0832101067
ref: 30

WASHER,LOCK

€ 2.50

31-1

0940252306
ref: 31-1

CLAMP

€ 6.00

31-2

0940252208
ref: 31-2

CLAMP

€ 5.50

32

1140038829
ref: 32

GASKET SET

€ 97.00

all assemblies
