HANDLEBAR
GN250 1988 (J) USA (E03)

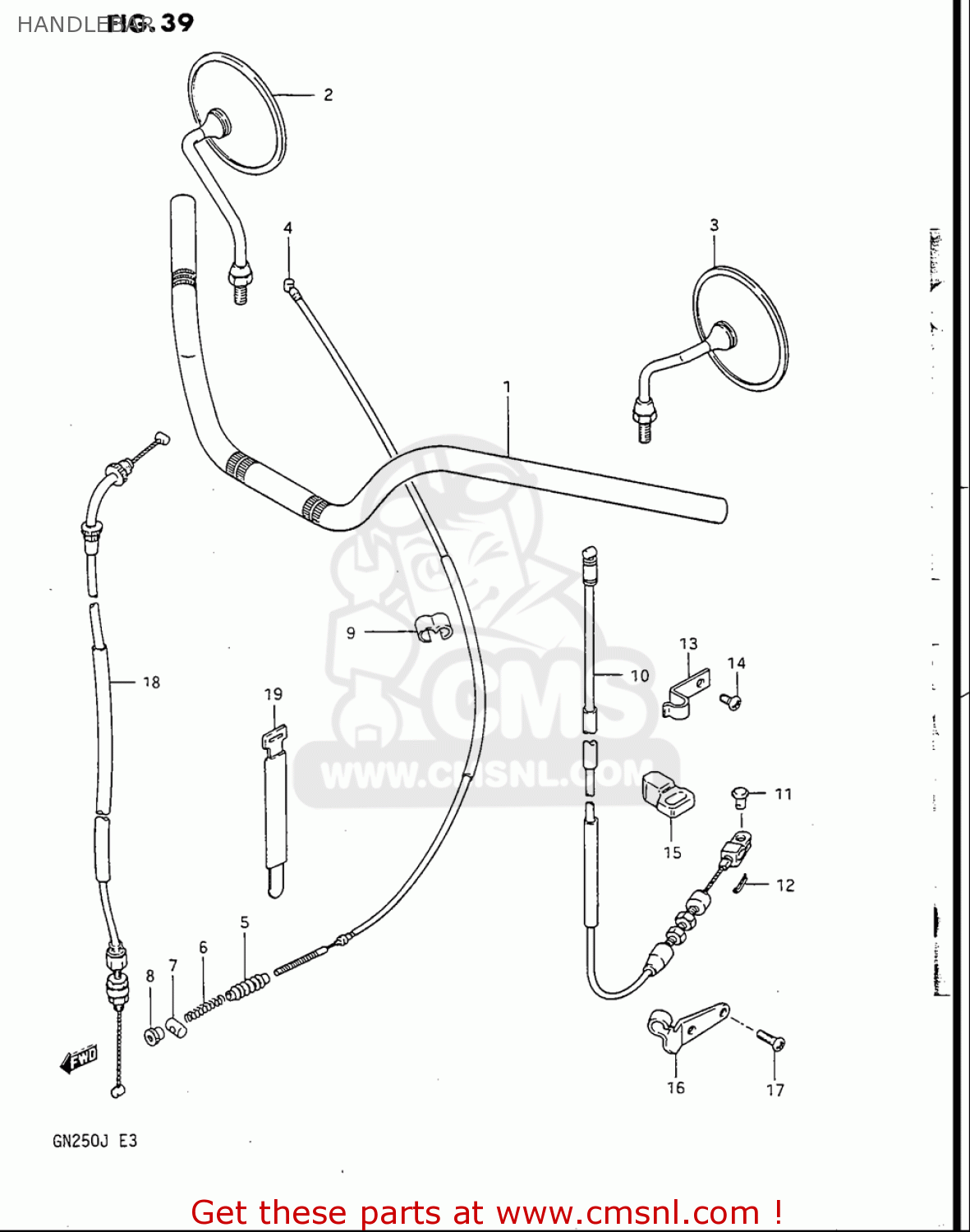

Handlebar diagram GN250 1988 (J) USA (E03)
HANDLEBAR GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611038311
ref: 1
HANDLEBAR
€ 178.00
2
5650044201
ref: 2
MIRROR ASSY,RR VIEW,R
€ 72.00
3
5660044201
ref: 3
MIRROR ASSY,RR VIEW,L
€ 72.00
4
5810038300
ref: 4
CABLE ASSEMBLY,FRONT BRAKE
€ 25.50
7
0920913018
ref: 7
PIN(13X18)
€ 3.50
8
0915006014
ref: 8
NUT
€ 3.50
9
0940800002
ref: 9
CLIP
€ 2.00
10
5820038301
ref: 10
CABLE ASSY,CLUTCH
€ 25.50
11
0920006004
ref: 11
PIN(L:13)
€ 1.50
12
0411120158
ref: 12
PIN
€ 1.50
14
021420610A
ref: 14
SCREW
€ 2.00
15
5862138300
ref: 15
GUIDE,CLUTCH CABLE
€ 7.00
16
5863438210
ref: 16
STOPPER,CLUTCH CABLE
€ 7.00
17
0211206127
ref: 17
SCREW
€ 2.00
18
5830038302
ref: 18
CABLE ASSY,THROTTLE
€ 27.00
19
0940725301
ref: 19
CLAMP(L:250)
€ 4.50
