FRAME
GN250 1988 (J) USA (E03)

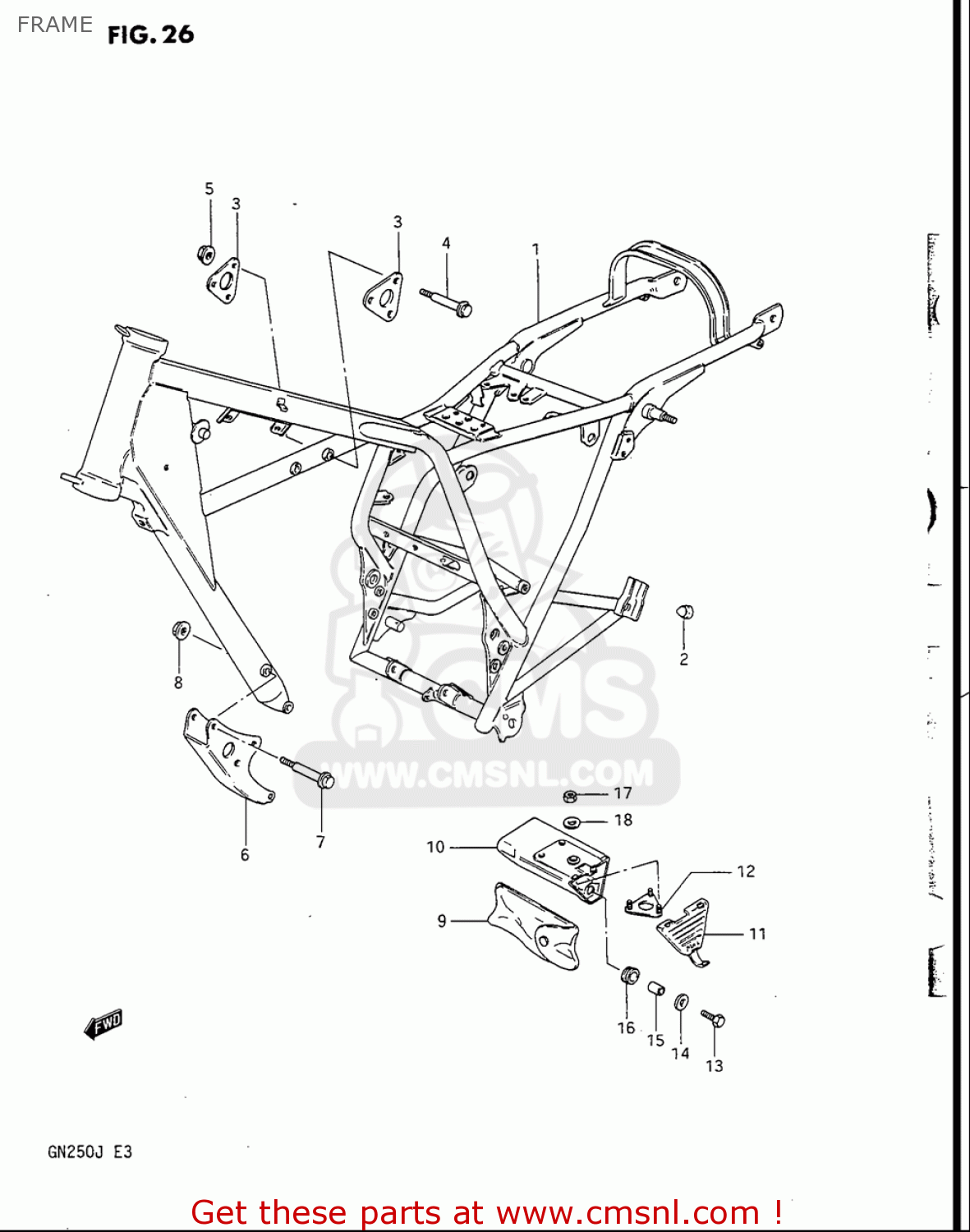

Frame diagram GN250 1988 (J) USA (E03)
FRAME GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110038300019
ref: 1-1
FRAME
€ 357.00
1-2
4110038350019
ref: 1-2
FRAME(BLACK)
€ 680.50
2
0925015010
ref: 2
PLUG(OD:19)
€ 2.00
3
4199138200
ref: 3
PLATE,ENGINE MOUNT UPR
€ 8.00
4
0155008507
ref: 4
BOLT
€ 3.50
5
0831931087
ref: 5
NUT
€ 2.50
6
4199238300019
ref: 6
PLATE,ENGINE MOUNT LWR
€ 14.50
7
0155008657
ref: 7
BOLT
€ 3.00
8
083193108A
ref: 8
NUT
€ 2.50
9
0980021021
ref: 9
TOOL ASSY
€ 33.00
10
4743105300
ref: 10
BOX,TOOL
€ 15.00
11
4743205300
ref: 11
CAP,TOOL BOX
€ 2.50
12
4744005301
ref: 12
PLATE,TOOL HOLDER
€ 3.00
13
0150006167
ref: 13
BOLT
€ 3.00
14
0916006077
ref: 14
WASHER(6.5X20X1.2)
€ 2.00
15
0918006038
ref: 15
SPACER(6.1X9X7.5)
€ 2.00
16
0932008021
ref: 16
CUSHION
€ 4.00
17
0831000067
ref: 17
NUT
€ 2.50
18
0832201067
ref: 18
WASHER
€ 2.00
