FUEL TANK

GN250 1988 (J) USA (E03)

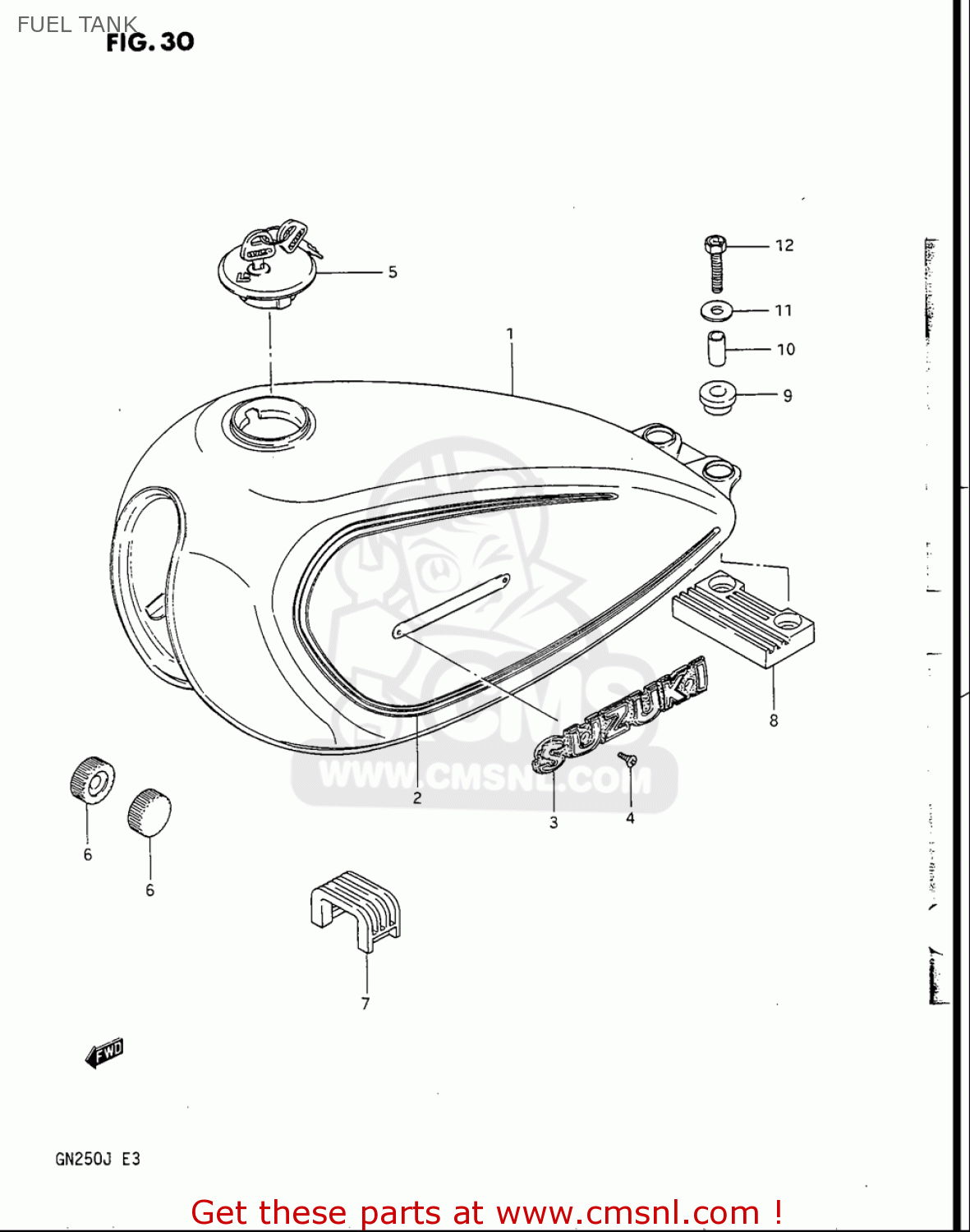

Fuel tank diagram GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

441003837113Z
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 260.00

1-2

441003837119A
ref: 1-2

TANK ASSEMBLY,FUEL

€ 390.00

2-1

681103831062F
ref: 2-1

TAPE SET,FUEL TANK

€ 29.00

2-2

68110383109WE
ref: 2-2

TAPE SET,FUEL TANK STRIPE

€ 38.00

3-1

6811137300
ref: 3-1

EMBLEM,FUEL TANK

€ 14.00

3-2

6811115500
ref: 3-2

EMBLEM,FUEL TANK

€ 28.50

0212203063
ref: 4

SCREW

€ 2.00

4420030830
ref: 5

CAP SET,FUEL TANK

€ 112.00

0932910016
ref: 6

CUSHION

€ 3.00

4454238300
ref: 8

CUSHION,TANK RR NO.1

€ 8.00

0932010022
ref: 9

CUSHION

€ 2.50

0918006067
ref: 10

SPACER(6.5X10.5X22.5)

€ 2.50

0916006054
ref: 11

WASHER(6.5X22X1.6)

€ 2.00

0910006033
ref: 12

BOLT(6X35)

€ 12.50
