CRANKCASE

GN250 1988 (J) USA (E03)

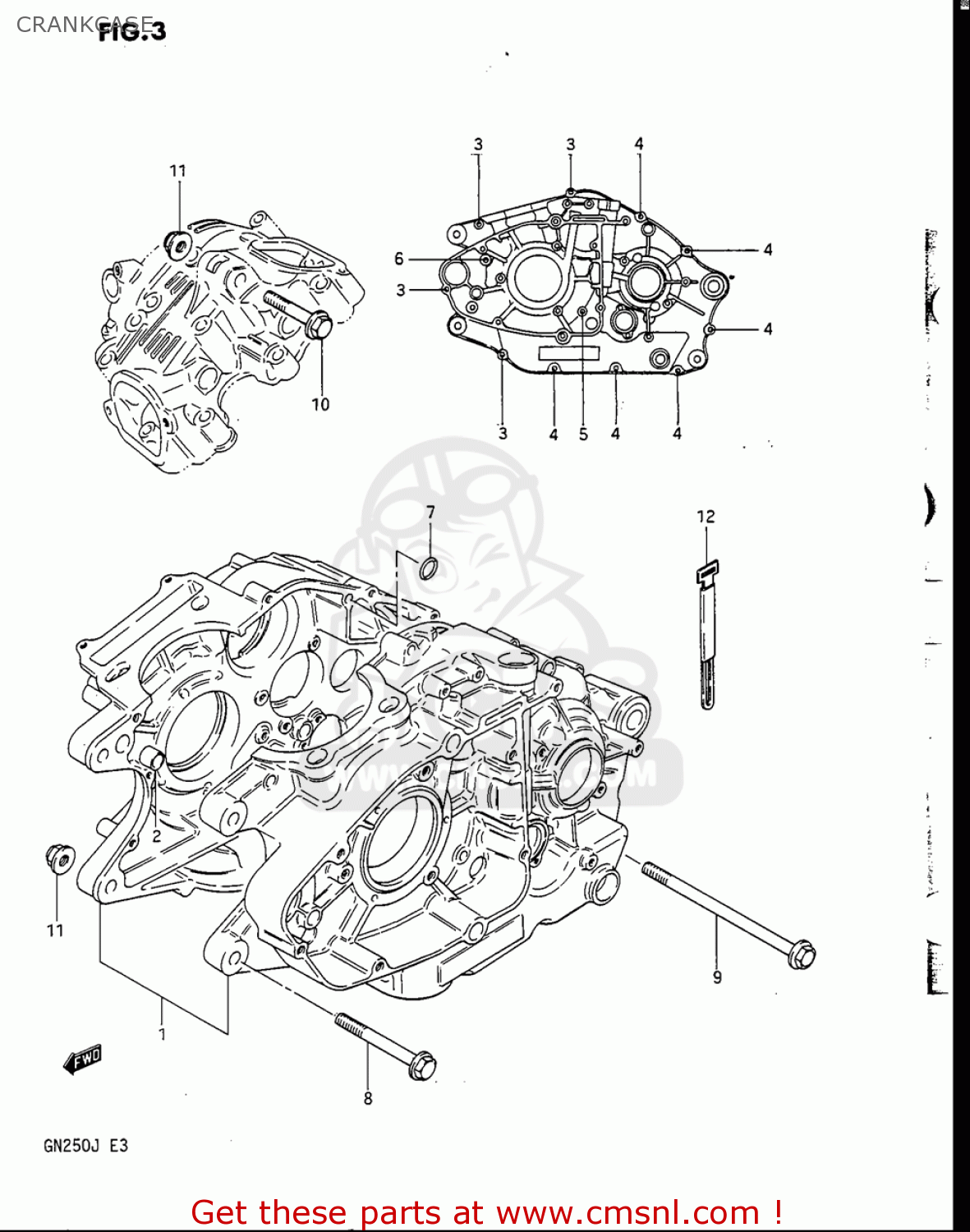

Crankcase diagram GN250 1988 (J) USA (E03)

CRANKCASE GN250 1988 (J) USA (E03)

CRANKCASE GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1130038866
ref: 1

CRANKCASE SET

€ 622.50

2

0421113189
ref: 2

PIN

€ 2.50

3

0154706357
ref: 3

BOLT

€ 2.50

4

0154706457
ref: 4

BOLT

€ 2.50

5

0154706557
ref: 5

BOLT

€ 2.50

6

0154706607
ref: 6

BOLT

€ 2.50

7

0928009005
ref: 7

O RING(D:1.9,ID:8.6)

€ 4.00

8

0910308037
ref: 8

BOLT(8X67)

€ 6.50

9

0910308070
ref: 9

BOLT(8X100)

€ 5.00

10

0910308081
ref: 10

BOLT(8X50)

€ 3.50

11

0831931087
ref: 11

NUT

€ 2.50
