STAND

GN250 1988 (J) USA (E03)

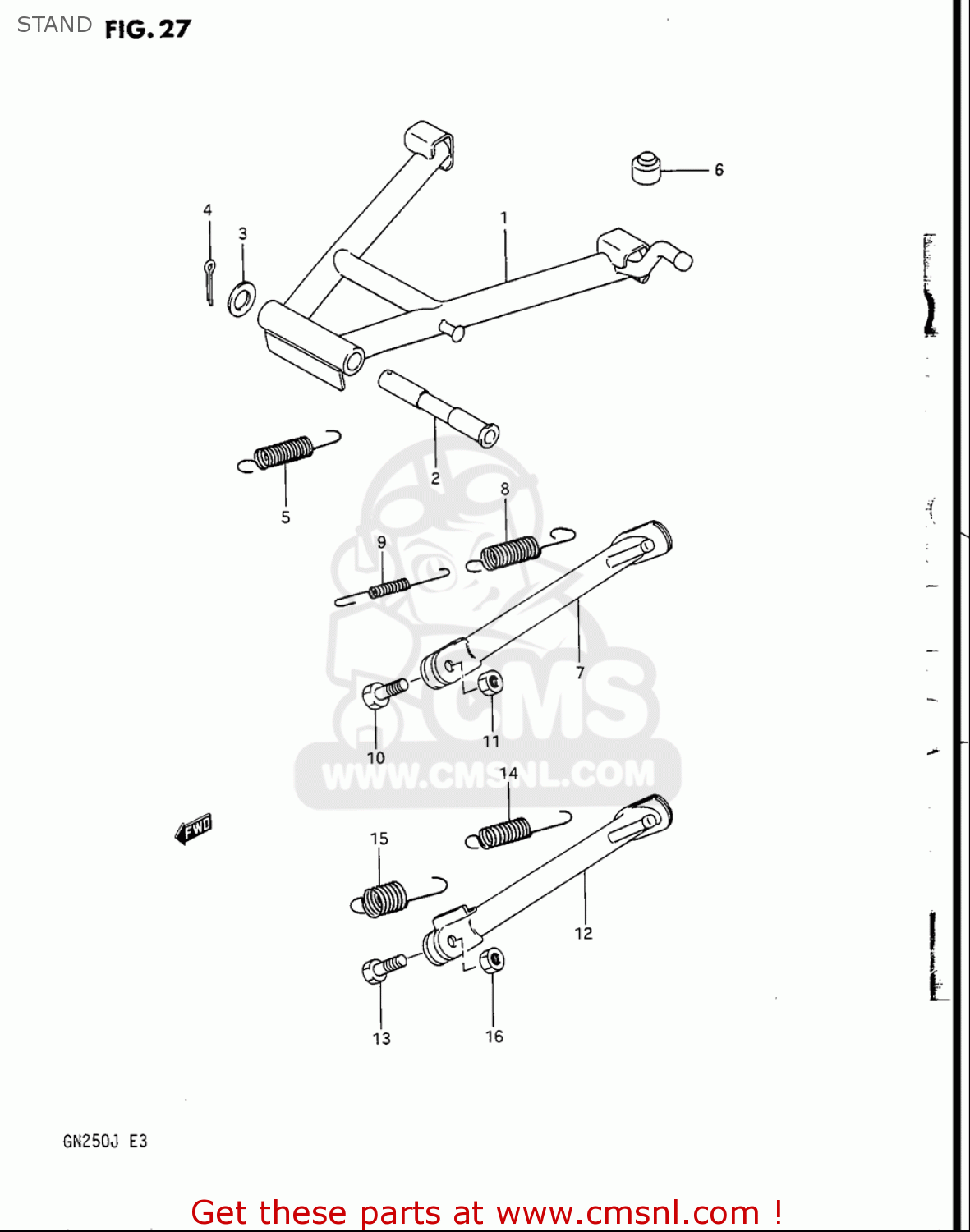

Stand diagram GN250 1988 (J) USA (E03)

STAND GN250 1988 (J) USA (E03)

STAND GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4210038301
ref: 1

STAND,CTR

€ 93.50

2

4221149F00
ref: 2

SHAFT UH125

€ 20.00

4

041113030A
ref: 4

PIN

€ 1.50

5

0944318006
ref: 5

SPRING

€ 5.50

6

0932110001
ref: 6

CUSHION

€ 2.50

7

4231038300
ref: 7

STAND,SIDE

€ 34.50

9

0944306058
ref: 9

SPRING

€ 18.00

10

0910010067
ref: 10

BOLT(10X30)

€ 3.50

11

083100010A
ref: 11

NUT

€ 2.00

12

4231038352
ref: 12

STAND,PROP

€ 141.50

13

0911110047
ref: 13

BOLT(10X30)

€ 4.50

14

0944312025
ref: 14

SPRING

€ 18.50

15

0944319006
ref: 15

SPRING

€ 18.00

16

083100010A
ref: 16

NUT

€ 2.00
