FRAME COVER

GN250 1988 (J) USA (E03)

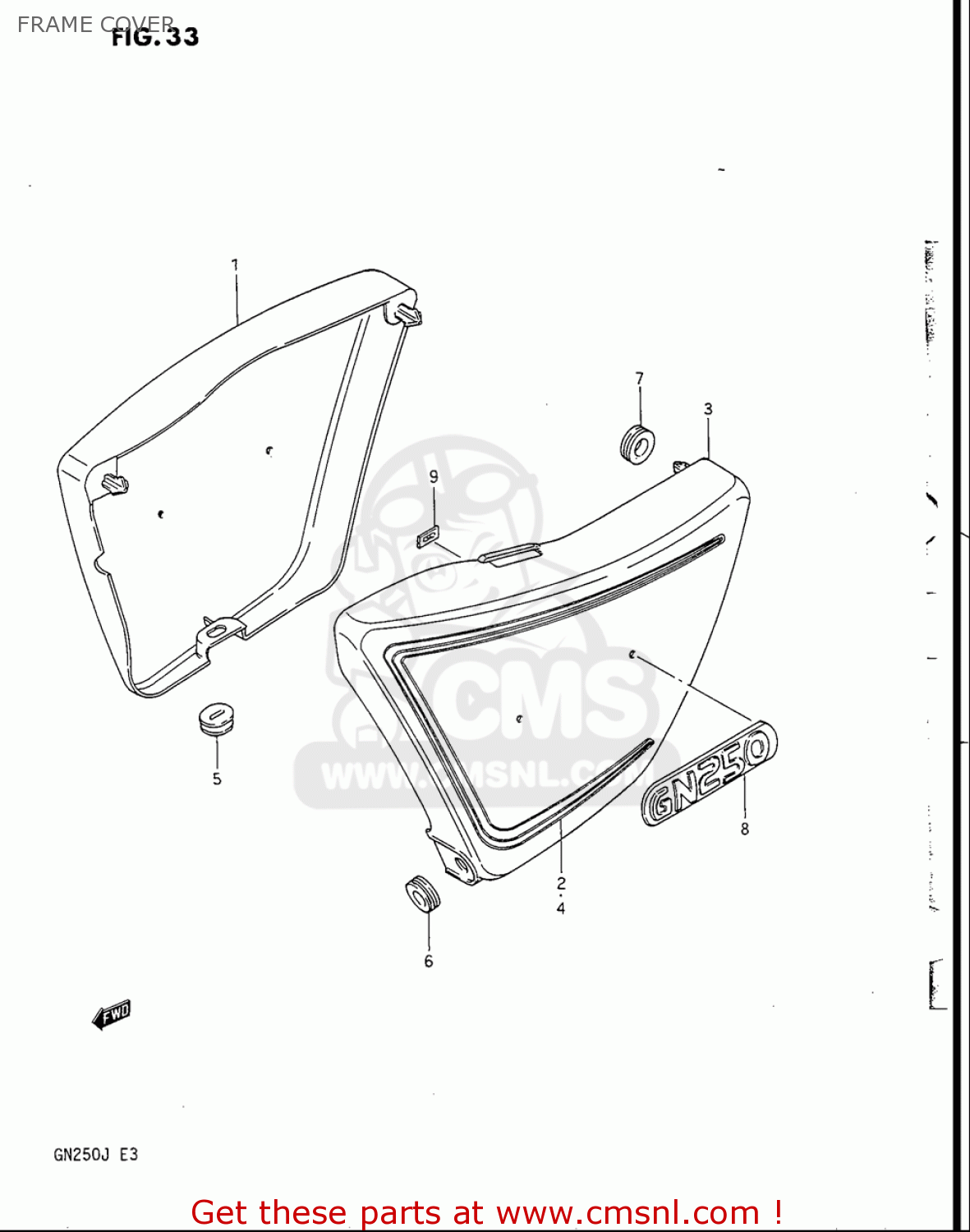

Frame cover diagram GN250 1988 (J) USA (E03)

FRAME COVER GN250 1988 (J) USA (E03)

FRAME COVER GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

471113830113Z
ref: 1-1

COVER,FRAME,RIGHT

€ 26.50

1-2

471113830119A
ref: 1-2

COVER,FRAME,R(RED)

€ 261.50

3-1

472113830113Z
ref: 3-1

COVER,FRAME,L(BLACK)

€ 90.00

3-2

472113830119A
ref: 3-2

COVER,FRAME,LEFT

€ 19.00

4-1

681403831062F
ref: 4-1

TAPE SET,FRAME COVER,L

€ 9.50

5

0932003004
ref: 5

CUSHION

€ 2.00

6

0932008013
ref: 6

CUSHION

€ 4.00

7

0932008018
ref: 7

CUSHION

€ 4.00

8

6813138310
ref: 8

EMBLEM,GN250

€ 18.00

9

0914803002
ref: 9

NUT

€ 3.00
