CRANKCASE COVER
GN250 1988 (J) USA (E03)

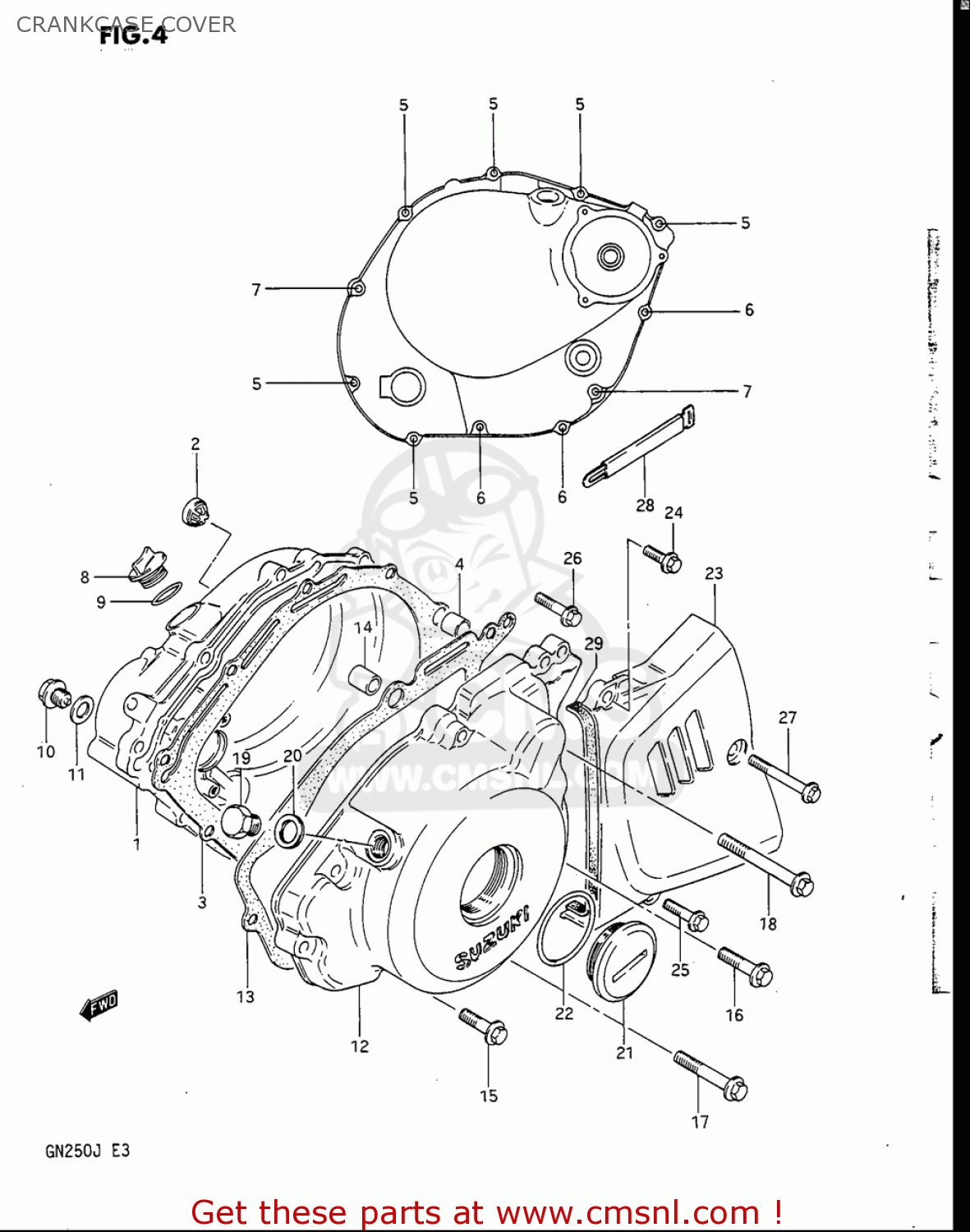

Crankcase cover diagram GN250 1988 (J) USA (E03)
CRANKCASE COVER GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134038302
ref: 1
COVER,CLUTCH
€ 230.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148238311
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 26.50
4
0421113189
ref: 4
PIN
€ 2.50
5
0154706257
ref: 5
BOLT
€ 2.50
6
0154706357
ref: 6
BOLT
€ 2.50
7
0154706457
ref: 7
BOLT
€ 2.50
8
0925920007
ref: 8
PLUG(20X10)
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10
0924714026
ref: 10
PLUG(14X12)
€ 3.50
11
0916814004
ref: 11
GASKET(14X19.2X2) (NAS)
€ 2.50
12
1135138300
ref: 12
COVER,MAGNETO
€ 156.50
13
1148337D00
ref: 13
GASKET,MAGNETO COVER (NAS)
€ 14.00
14
0421113189
ref: 14
PIN
€ 2.50
15
0154706257
ref: 15
BOLT
€ 2.50
16
0154706357
ref: 16
BOLT
€ 2.50
17
0154706507
ref: 17
BOLT
€ 2.50
18
0154706607
ref: 18
BOLT
€ 2.50
19
0924712104
ref: 19
PLUG,12X9
€ 2.50
20
0916812002
ref: 20
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
21
0925936011
ref: 21
PLUG,36X10
€ 8.50
22
0928033004
ref: 22
O RING(D:3.1,ID:32.7)
€ 2.50
23
1136138300
ref: 23
COVER,ENGINE SPROCKET
€ 92.50
24
0154705207
ref: 24
BOLT
€ 2.00
25
0154705257
ref: 25
BOLT
€ 2.00
26
0154705307
ref: 26
BOLT
€ 2.00
27
0154705458
ref: 27
BOLT
€ 2.00
28
0940714301
ref: 28
CLAMP
€ 6.00
