GN250 1988 (J) USA (E03)

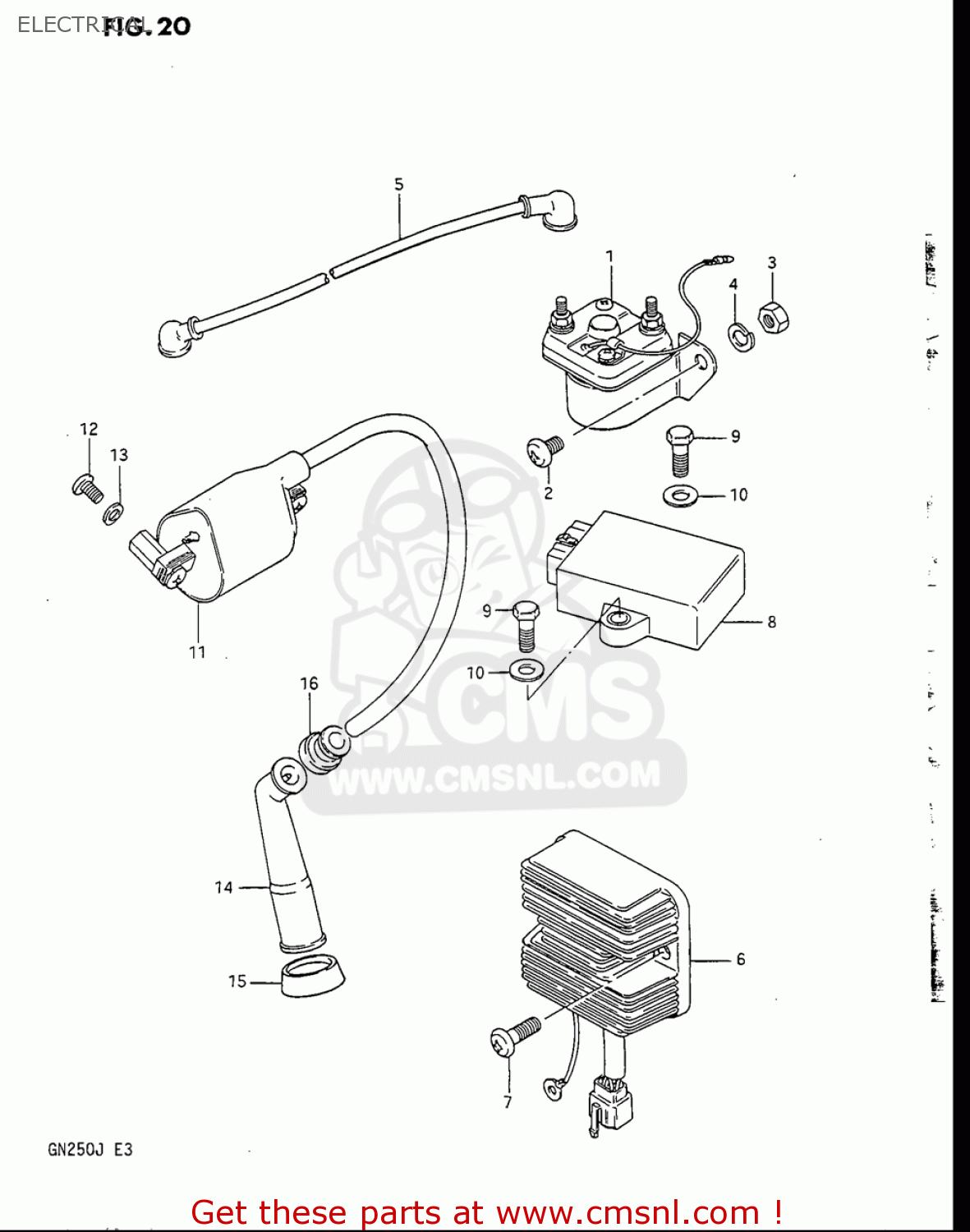

Electrical diagram GN250 1988 (J) USA (E03)
ELECTRICAL GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206107
ref: 2
SCREW
€ 1.50
3
0831022066
ref: 3
NUT
€ 2.00
4
083210106A
ref: 4
WASHER,LOCK
€ 2.00
5
3385005301
ref: 5
WIRE,STARTER MOTOR
€ 16.50
6
3280005320
ref: 6
RECTIFIER ASSY
€ 188.00
7
0912806011
ref: 7
SCREW(6X12)
€ 3.00
8
3290038300
ref: 8
IGNITOR UNIT
€ 512.00
9
0150006207
ref: 9
BOLT
€ 2.00
10
0832201067
ref: 10
WASHER
€ 2.00
11
3341038300
ref: 11
COIL ASSY,IGNITION
€ 151.50
12
0211205107
ref: 12
SCREW
€ 2.00
13
0832201057
ref: 13
WASHER
€ 2.50
14
3351045010
ref: 14
CAP ASSY,SPARK PLUG
€ 23.00
15
3354147D00
ref: 15
SEAL,SPARK PLUG
€ 7.00
16-1
3354238B00
ref: 16-1
SEAL,HIGH TENSION CORD
€ 4.50
16-2
3354238B00
ref: 16-2
SEAL,HIGH TENSION CORD
€ 4.50
