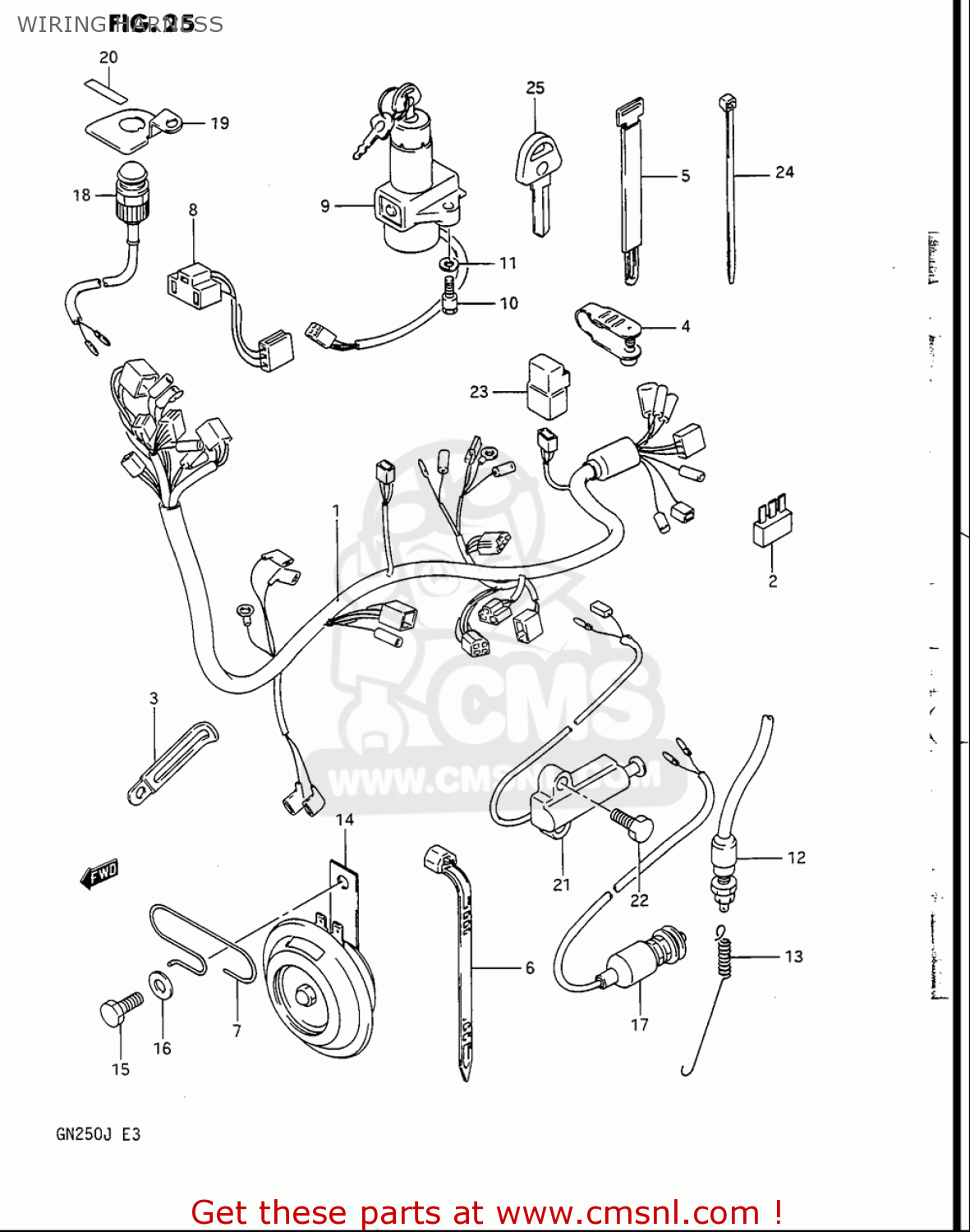

WIRING HARNESS

ref

part #

description

quantity

1-1

3661038320
ref: 1-1

HARNESS,WIRING

€ 0.00

1-2

3661038331
ref: 1-2

HARNESS,WIRING

€ 209.50

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0940408420
ref: 3

CLAMP(L:120 T:1.0)

€ 3.50

4

0940705403
ref: 4

CLAMP,L:88

€ 1.50

5-1

0940714301
ref: 5-1

CLAMP

€ 6.00

5-2

0940718301
ref: 5-2

CLAMP

€ 6.00

5-3

0940725301
ref: 5-3

CLAMP(L:250)

€ 4.50

6-1

0940714403
ref: 6-1

CLAMP(L:125)

€ 2.50

6-3

0940718402
ref: 6-3

CLAMP(L:165)

€ 2.50

7

3661905300
ref: 7

GUIDE,WIRING HARNESS

€ 0.00

8-1

3685330500
ref: 8-1

LEAD WIRE,HEADLAMP

€ 13.00

8-2

3685330500
ref: 8-2

LEAD WIRE,HEADLAMP

€ 13.00

9-2

3710049201
ref: 9-2

SWITCH ASSY,IGNITION

€ 141.00

10

071300616A
ref: 10

BOLT

€ 3.00

11

0832101067
ref: 11

WASHER,LOCK

€ 2.50

12

3774048071
ref: 12

SWITCH ASSY,STOP LAMP

€ 22.00

13

0944306031
ref: 13

SPRING

€ 21.00

14

3850038361
ref: 14

HORN ASSY

€ 29.00

15

0150008163
ref: 15

BOLT

€ 2.00

16

083220108A
ref: 16

WASHER

€ 2.00

17

3784038301
ref: 17

SWITCH ASSY,SIDE STAND WARNING

€ 33.50

21

3784012X50
ref: 21

SWITCH ASSY,SIDE STAND WARNING

€ 76.00

22

0155006167
ref: 22

BOLT

€ 1.50

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

0940714407
ref: 24

CLAMP(L:145)

€ 4.00

25

3714647010
ref: 25

KEY,BLANK

€ 15.00
