FRONT FORK
GN250 1988 (J) USA (E03)

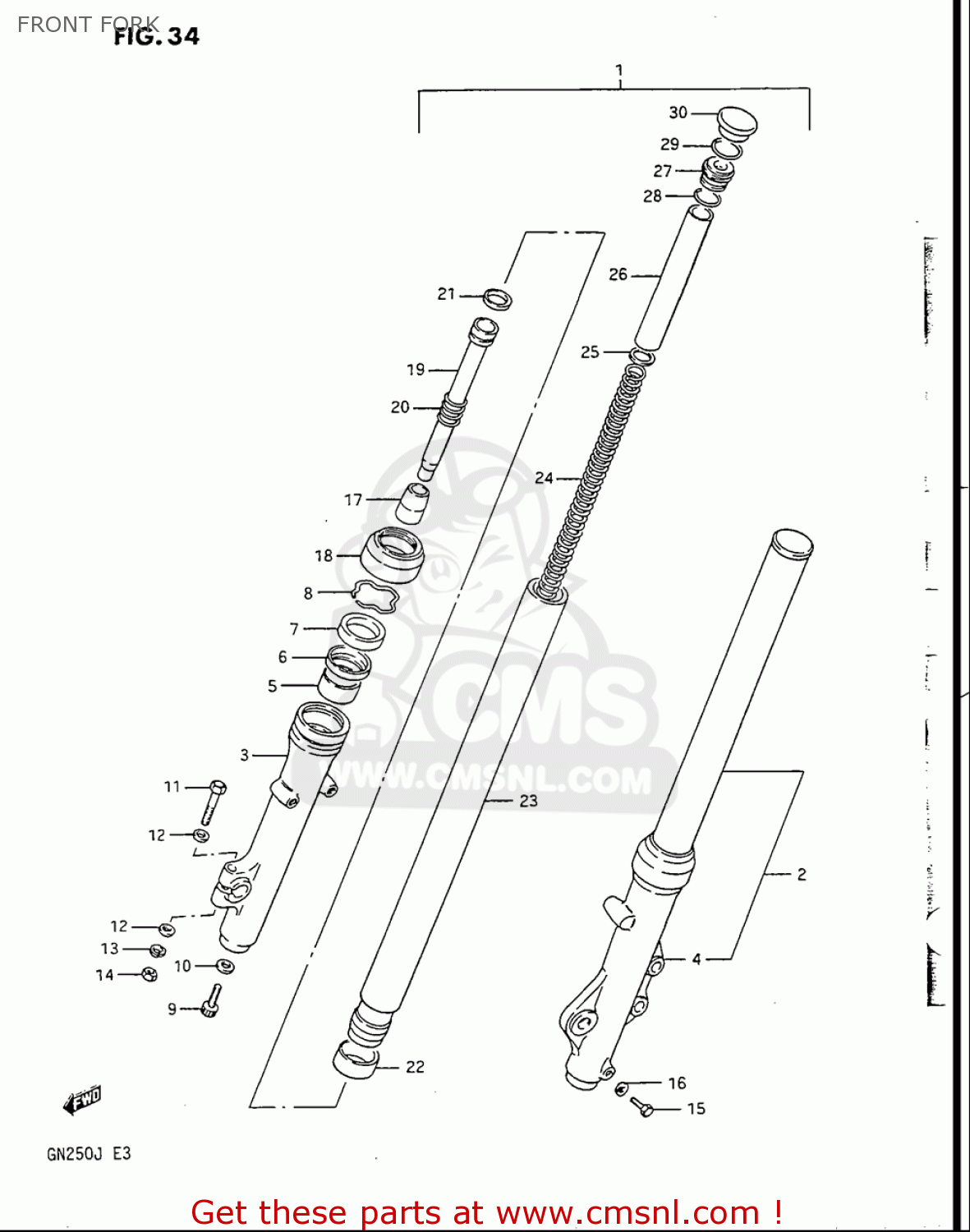

Front fork diagram GN250 1988 (J) USA (E03)
FRONT FORK GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2-2
5110438310
ref: 2-2
DAMPER ASSEMBLY,LEFT
€ 447.00
3
5113038300
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 272.00
5
5115211420
ref: 5
BUSH,GUIDE
€ 16.50
6
5116844030
ref: 6
SPACER,OIL SEAL
€ 4.50
7
5115302B00
ref: 7
SEAL,OIL
€ 15.00
8
5115602B00
ref: 8
RING,OIL SEAL STOPPER
€ 4.50
9
5114748130
ref: 9
BOLT(8X27)
€ 3.50
10
5114836011
ref: 10
GASKET (NAS)
€ 4.00
11
0150008507
ref: 11
BOLT
€ 3.00
12
0832201087
ref: 12
WASHER
€ 2.00
13
0832101087
ref: 13
WASHER,LOCK
€ 2.00
14
0831000087
ref: 14
NUT
€ 2.00
15
0910006157
ref: 15
BOLT(6X8)
€ 2.50
16
5118331030
ref: 16
GASKET,DRAIN,PLUG (NAS)
€ 4.00
18
5157137310
ref: 18
DUST SEAL
€ 22.00
22
5112111420
ref: 22
BUSH
€ 16.50
23
5111038300
ref: 23
TUBE,INNER
€ 217.00
26
5117636331
ref: 26
SPACER,FRONT FORK SPRING
€ 4.00
27
5117548500
ref: 27
SEAT,SPRING
€ 9.00
28
5118133131
ref: 28
O RING
€ 5.00
29
51169C48500J000
ref: 29
STOPPER RING FO
€ 0.00
30
5118944031
ref: 30
CAP
€ 7.00
