STARTER CLUTCH

GN250 1988 (J) USA (E03)

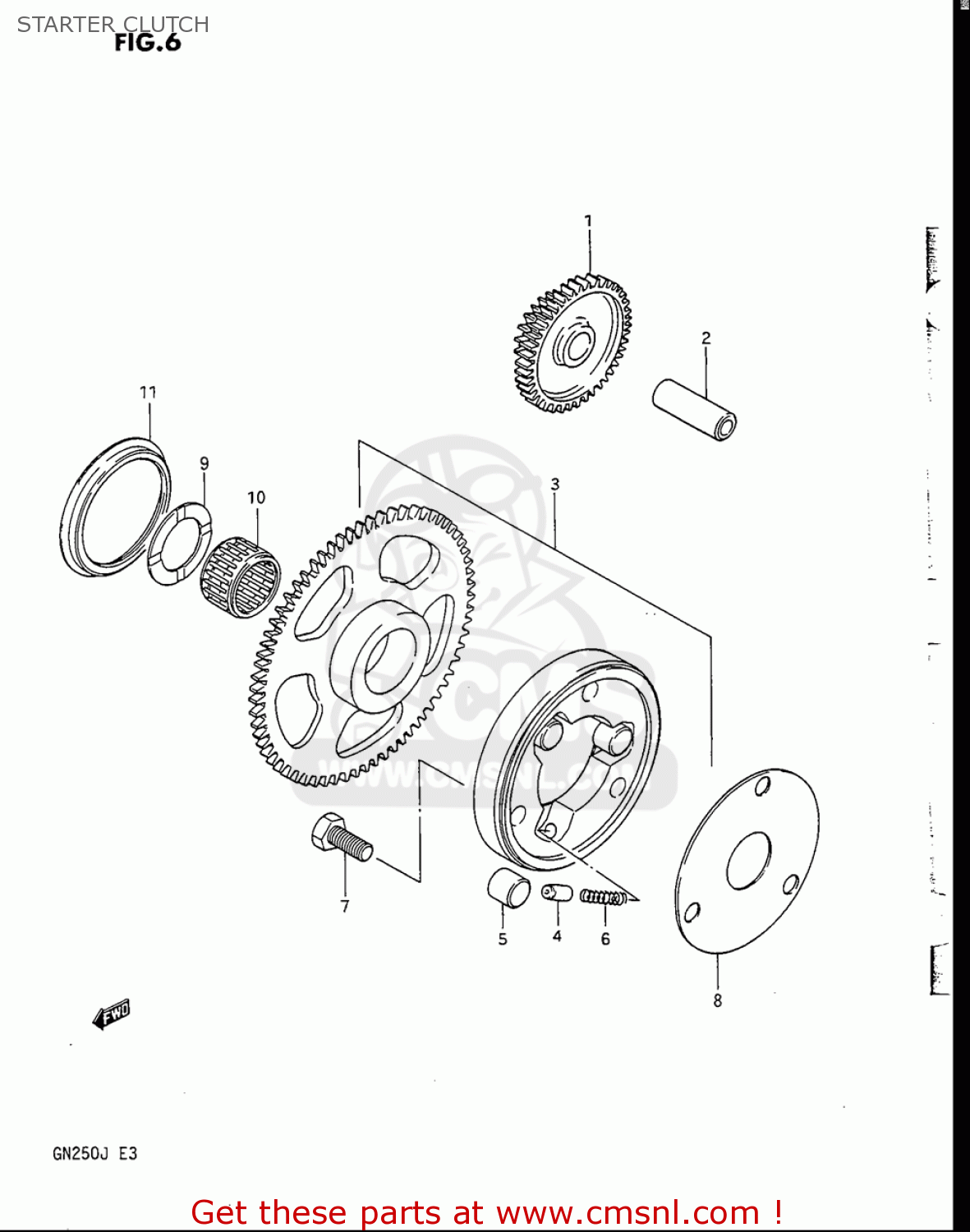

Starter clutch diagram GN250 1988 (J) USA (E03)

STARTER CLUTCH GN250 1988 (J) USA (E03)

STARTER CLUTCH GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261138300
ref: 1

GEAR,STARTER IDLE

€ 68.50

2

0920613007
ref: 2

PIN(7.4X13X40)

€ 9.00

3

1260038814
ref: 3

CLUTCH SET,STA

€ 158.00

4

1263331000
ref: 4

PIECE,PUSH

€ 9.00

5

0926114001
ref: 5

PIN(14X13)

€ 5.00

6

0944004015
ref: 6

SPRING

€ 2.50

7

015000820A
ref: 7

BOLT

€ 2.00

8

1264949300
ref: 8

SHIM,STARTER CLUTCH HUB

€ 13.50

9

0916027005
ref: 9

WASHER(27X40X2.5)

€ 10.00

10

0926327004
ref: 10

BEARING(27X32X21.8)

€ 23.00

11

0928952002
ref: 11

SEAL,OIL(52X62X6.8)

€ 62.00
