SEAT

GN250 1988 (J) USA (E03)

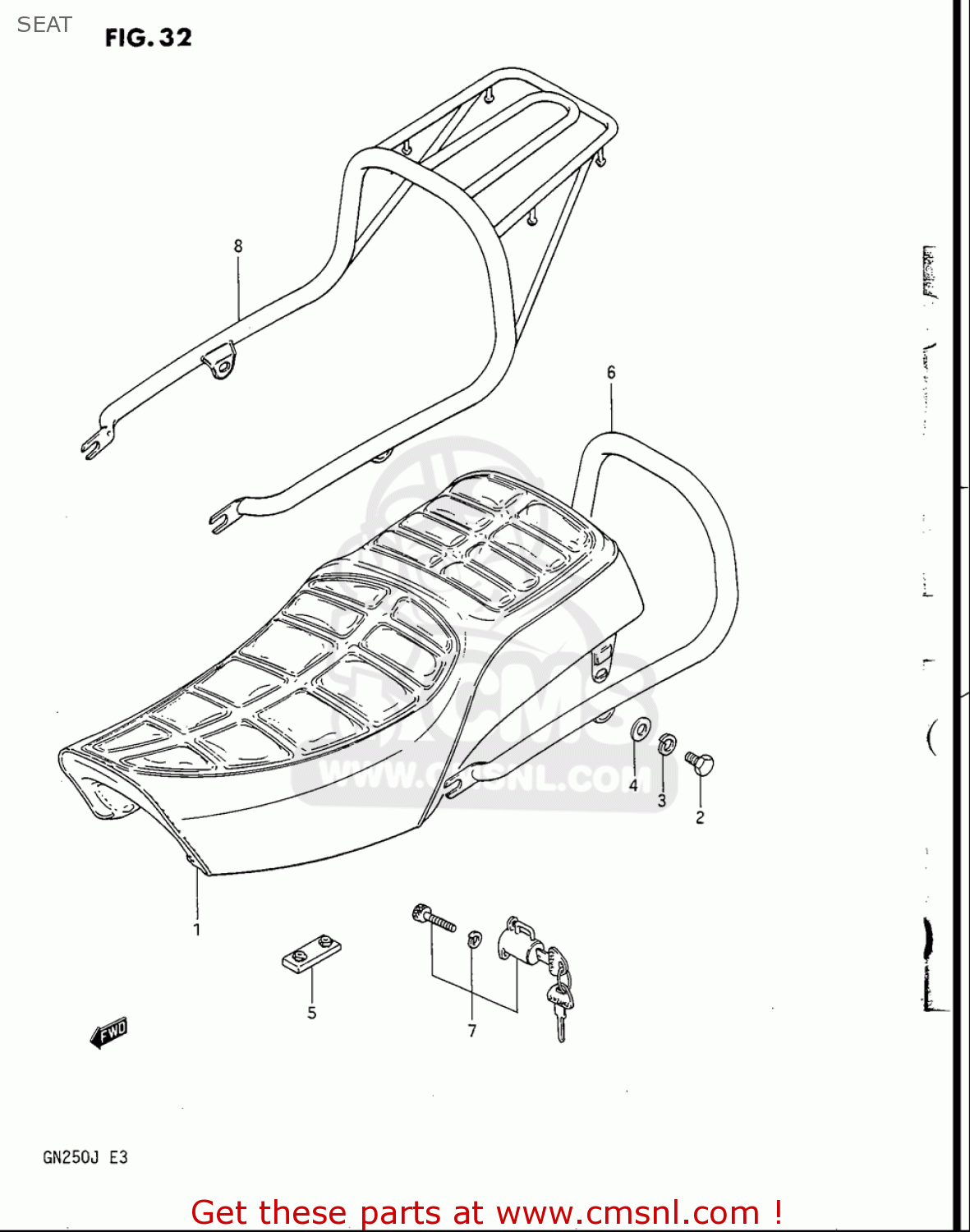

Seat diagram GN250 1988 (J) USA (E03)

SEAT GN250 1988 (J) USA (E03)

SEAT GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

451003831248H
ref: 1

SEAT ASSY

€ 288.50

2

0120408207
ref: 2

BOLT

€ 3.00

3

0832101087
ref: 3

WASHER,LOCK

€ 2.00

4

0832201087
ref: 4

WASHER

€ 2.00

5

0932108009
ref: 5

CUSHION

€ 4.00

6

4621038301
ref: 6

HANDLE,PILLION RIDER

€ 87.50

7

9570038840
ref: 7

LOCK SET,HELMET

€ 44.50
