HEADLAMP

GN250 1988 (J) USA (E03)

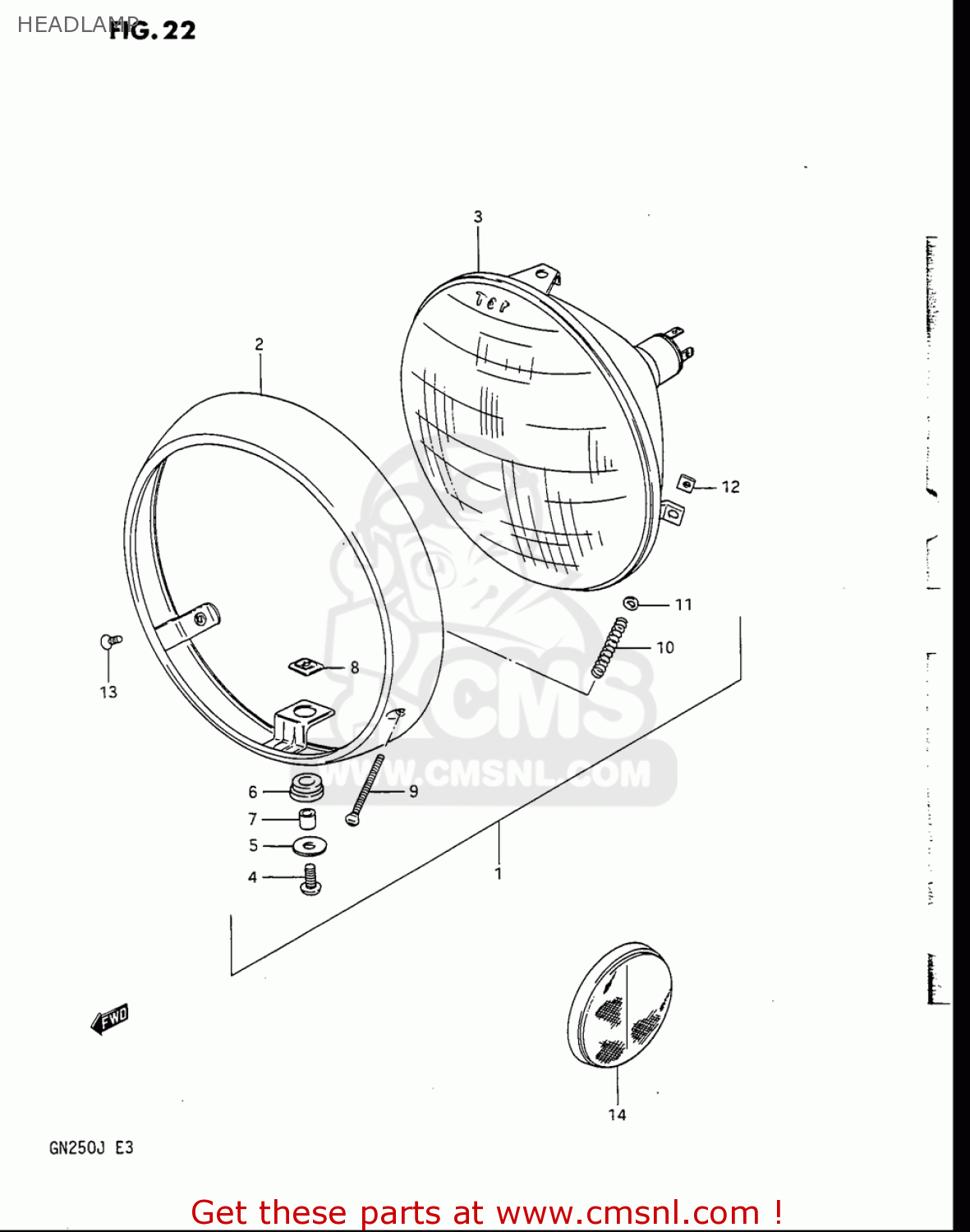

Headlamp diagram GN250 1988 (J) USA (E03)

HEADLAMP GN250 1988 (J) USA (E03)

HEADLAMP GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510038330
ref: 1

LAMP ASSEMBLY,HEAD

€ 0.00

2

3511145231
ref: 2

RIM

€ 50.00

3

3512144230
ref: 3

LAMP UNIT

€ 87.50

4

0211205167
ref: 4

SCREW

€ 2.50

5

0916005045
ref: 5

WASHER(5.5X18X1)

€ 2.00

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513345230
ref: 7

SPACER

€ 2.00

8

3515548510
ref: 8

NUT

€ 2.00

9

3515145230
ref: 9

SCREW

€ 3.50

10

3515448510
ref: 10

SPRING

€ 2.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3513545600
ref: 12

NUT

€ 3.00

13

0912705013
ref: 13

SCREW(5X12)

€ 2.50

14

3595049080
ref: 14

REFLEX REFLECTOR,RR

€ 17.50
