REAR BRAKE

GN250 1988 (J) USA (E03)

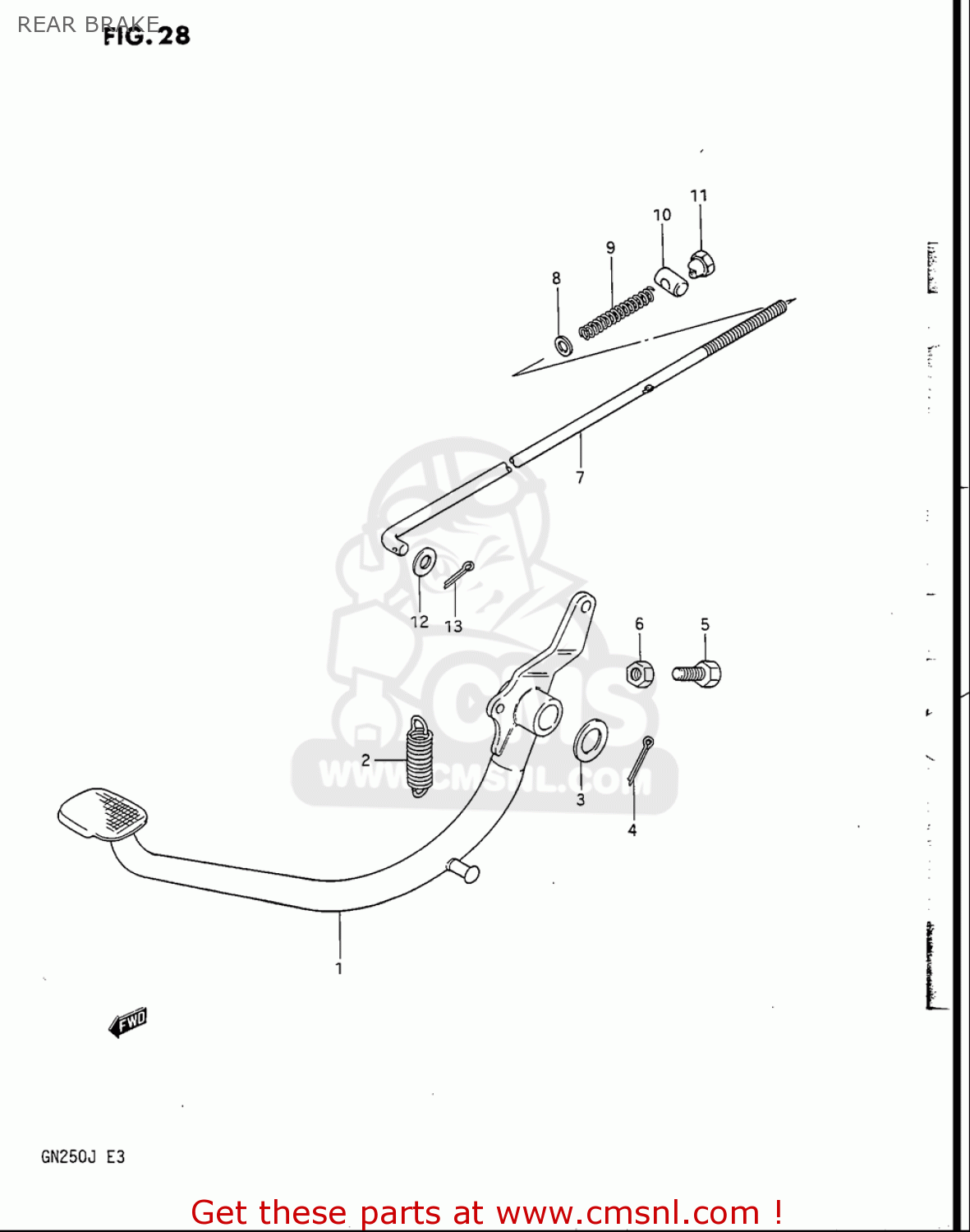

Rear brake diagram GN250 1988 (J) USA (E03)

REAR BRAKE GN250 1988 (J) USA (E03)

REAR BRAKE GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311038301
ref: 1

PEDAL,BRAKE

€ 104.00

2

0944314013
ref: 2

SPRING

€ 21.50

3

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

4

041113030A
ref: 4

PIN

€ 1.50

5

0912806028
ref: 5

SCREW(6X23)

€ 2.00

6

0831000067
ref: 6

NUT

€ 2.50

7

4330038300
ref: 7

ROD ASSY,RR BRAKE

€ 21.00

8

0832201067
ref: 8

WASHER

€ 2.00

9

0944009004
ref: 9

SPRING

€ 2.00

10

0920913018
ref: 10

PIN(13X18)

€ 3.50

11

0915006014
ref: 11

NUT

€ 3.50

12

0832201057
ref: 12

WASHER

€ 2.50

13

041112020A
ref: 13

PIN

€ 1.50
