BATTERY
GN250 1988 (J) USA (E03)

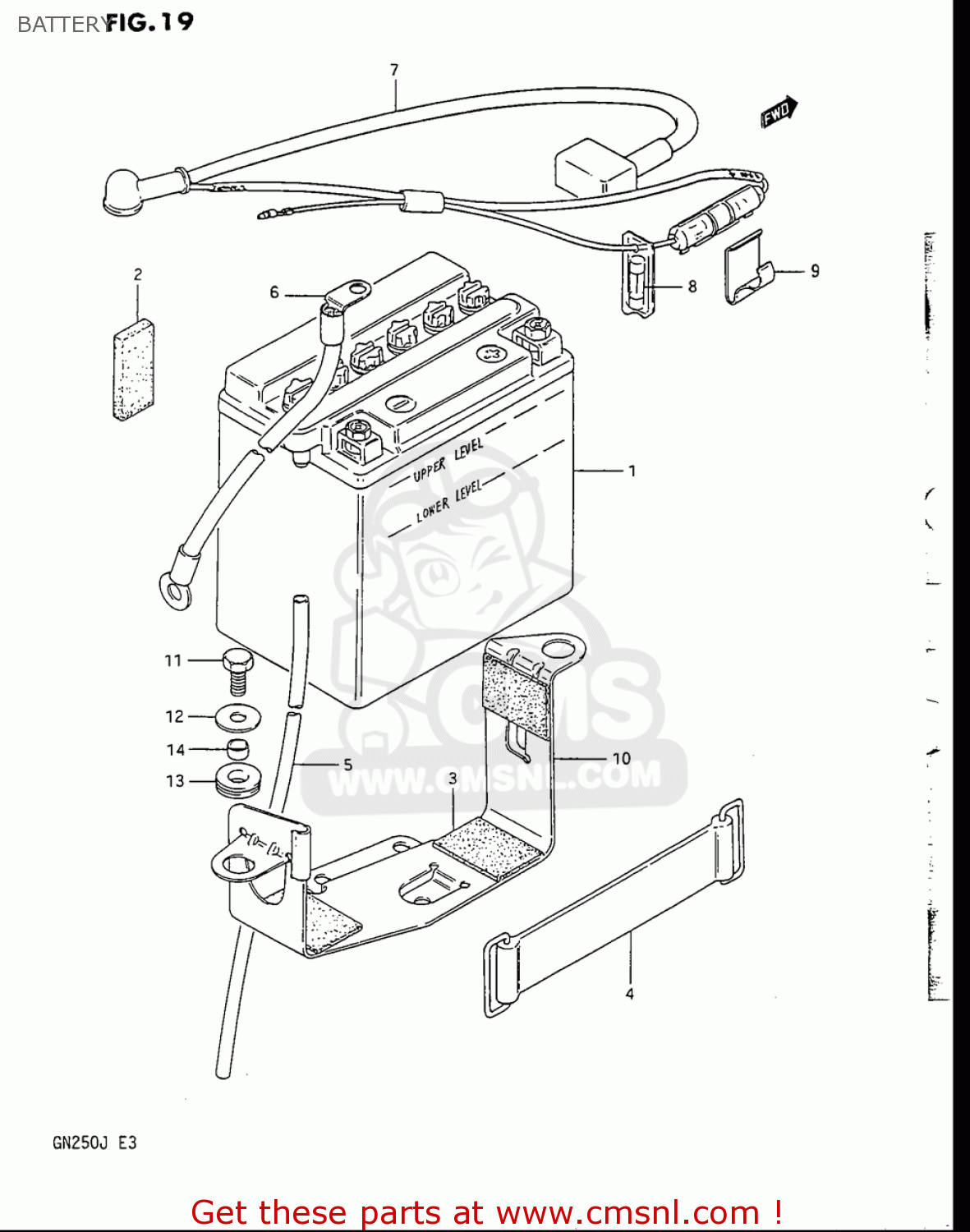

Battery diagram GN250 1988 (J) USA (E03)
BATTERY GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361044010
ref: 1
BATTERY ASSY (12V)
€ 74.50
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
4
0946200009
ref: 4
BAND
€ 6.50
5
3368016A10
ref: 5
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
6
3385049400
ref: 6
LEAD WIRE,BATTERY(-)
€ 14.50
7
3674038300
ref: 7
CASE ASSEMBLY,FUSE (WITH
€ 14.50
8
0948115001
ref: 8
FUSE(15A)
€ 3.00
9
3679146700
ref: 9
HOLDER,FUSE CASE
€ 9.00
10
4154038301
ref: 10
HOLDER,BATTERY
€ 18.50
11
0150006167
ref: 11
BOLT
€ 3.00
12
0916006077
ref: 12
WASHER(6.5X20X1.2)
€ 2.00
13
0932008021
ref: 13
CUSHION
€ 4.00
14
0918006038
ref: 14
SPACER(6.1X9X7.5)
€ 2.00
