GEAR SHIFTING
GN250 1988 (J) USA (E03)

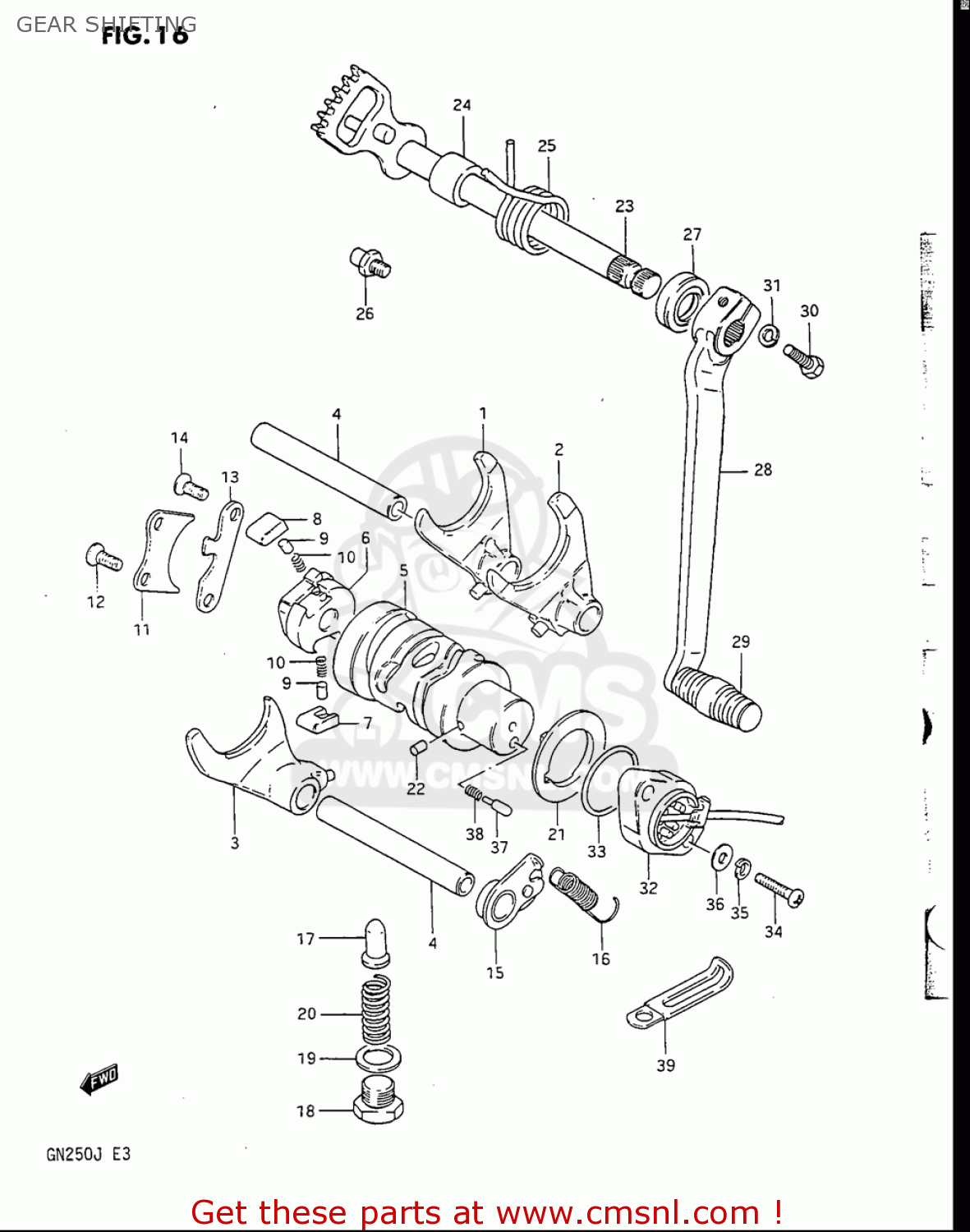

Gear shifting diagram GN250 1988 (J) USA (E03)
GEAR SHIFTING GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521132402
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522132403
ref: 2
FORK,GEAR SHIFT NO.2
€ 71.50
3
2523132402
ref: 3
FORK,GEAR SHIFT NO.3
€ 71.50
4
2541114331
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
6
2532231310
ref: 6
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
7-1
2532334201
ref: 7-1
PAWL,GEAR SHIFT NO.1
€ 6.00
7-2
2532334201
ref: 7-2
PAWL,GEAR SHIFT NO.1
€ 6.00
8-1
2532434201
ref: 8-1
PAWL,GEAR SHIFT NO.2
€ 6.00
8-2
2532434201
ref: 8-2
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138201
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12
0212206167
ref: 12
SCREW
€ 2.00
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206127
ref: 14
SCREW
€ 3.00
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
€ 10.50
16
0944308026
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
0924714026
ref: 18
PLUG(14X12)
€ 3.50
19
0916814004
ref: 19
GASKET(14X19.2X2) (NAS)
€ 2.50
20
0944011016
ref: 20
SPRING
€ 7.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0422104069
ref: 22
PIN
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
€ 83.50
24
0918012068
ref: 24
SPACER(12X20X15.3)
€ 3.00
25
0944426004
ref: 25
SPRING
€ 4.00
26
2567101011
ref: 26
STOPPER,GEAR SHIFT ARM
€ 3.00
27
0928512006
ref: 27
SEAL,OIL (12X22X9)
€ 7.00
28
2560005330
ref: 28
LEVER ASSY,GEAR SHIFT
€ 33.50
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 4.00
30-1
0150006207
ref: 30-1
BOLT
€ 2.00
30-2
0150006207
ref: 30-2
BOLT
€ 2.00
31
0832101067
ref: 31
WASHER,LOCK
€ 2.50
32-1
3772045100
ref: 32-1
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
32-2
3772044700
ref: 32-2
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
33
0928026005
ref: 33
O RING(D:2.4,ID:26.2)
€ 2.50
34
0211205203
ref: 34
SCREW
€ 2.50
35
0832101053
ref: 35
LOCK,WASHER
€ 3.00
36
083220105A
ref: 36
WASHER
€ 2.50
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0944004010
ref: 38
SPRING
€ 1.50
39
0940406432
ref: 39
CLAMP(L:65)
€ 2.50
