MASTER CYLINDER (MODEL J)

GN250 1988 (J) USA (E03)

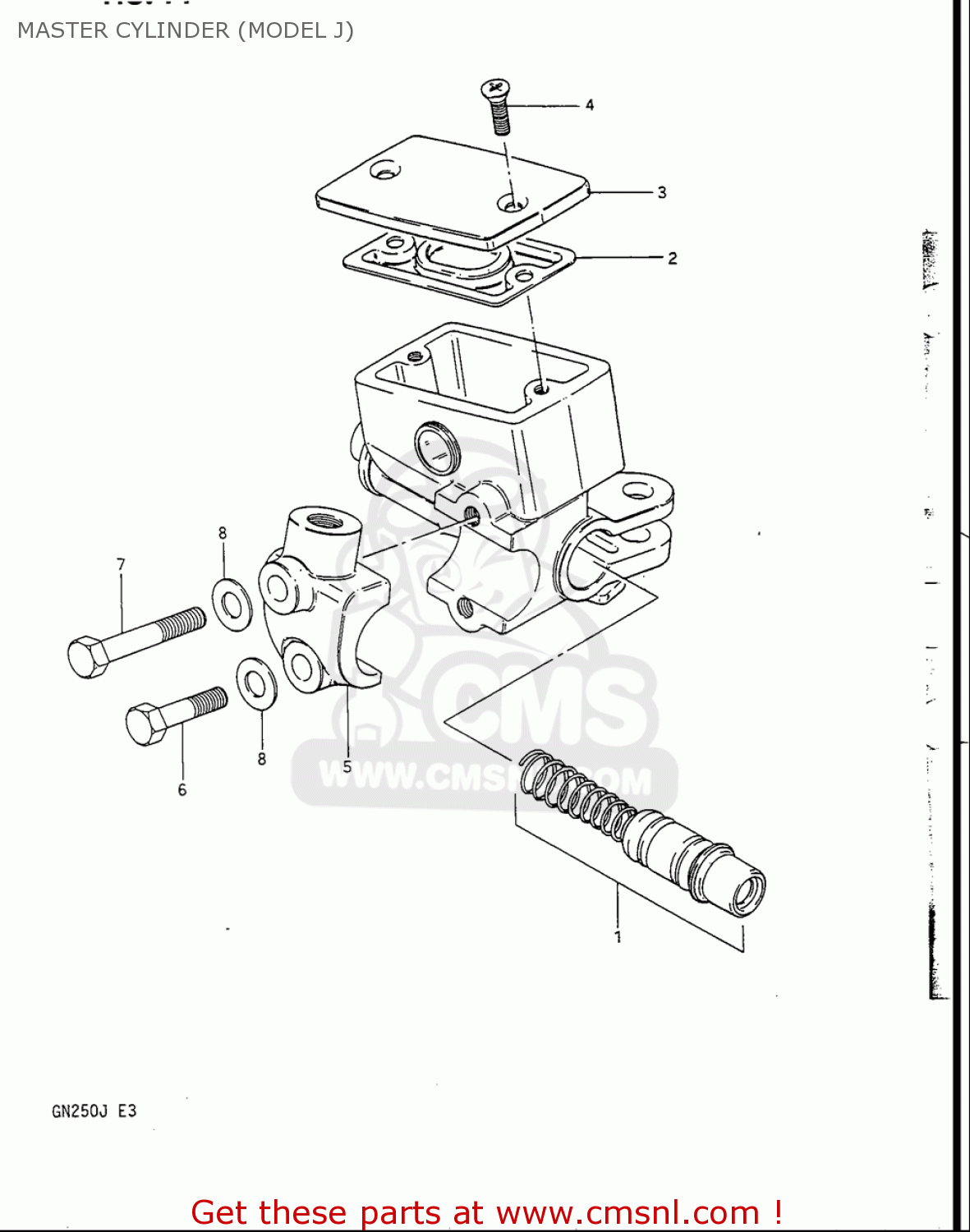

Master cylinder (model j) diagram GN250 1988 (J) USA (E03)

MASTER CYLINDER (MODEL J) GN250 1988 (J) USA (E03)

MASTER CYLINDER (MODEL J) GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

5960044X50
ref: 0

CYLINDER ASSY,MASTER

€ 206.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966749460
ref: 2

5966749460

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

015000625A
ref: 6

BOLT

€ 2.50

7

0150006403
ref: 7

BOLT

€ 2.00

8

083220106A
ref: 8

WASHER

€ 2.00
