REAR SWINGING ARM

GN250 1988 (J) USA (E03)

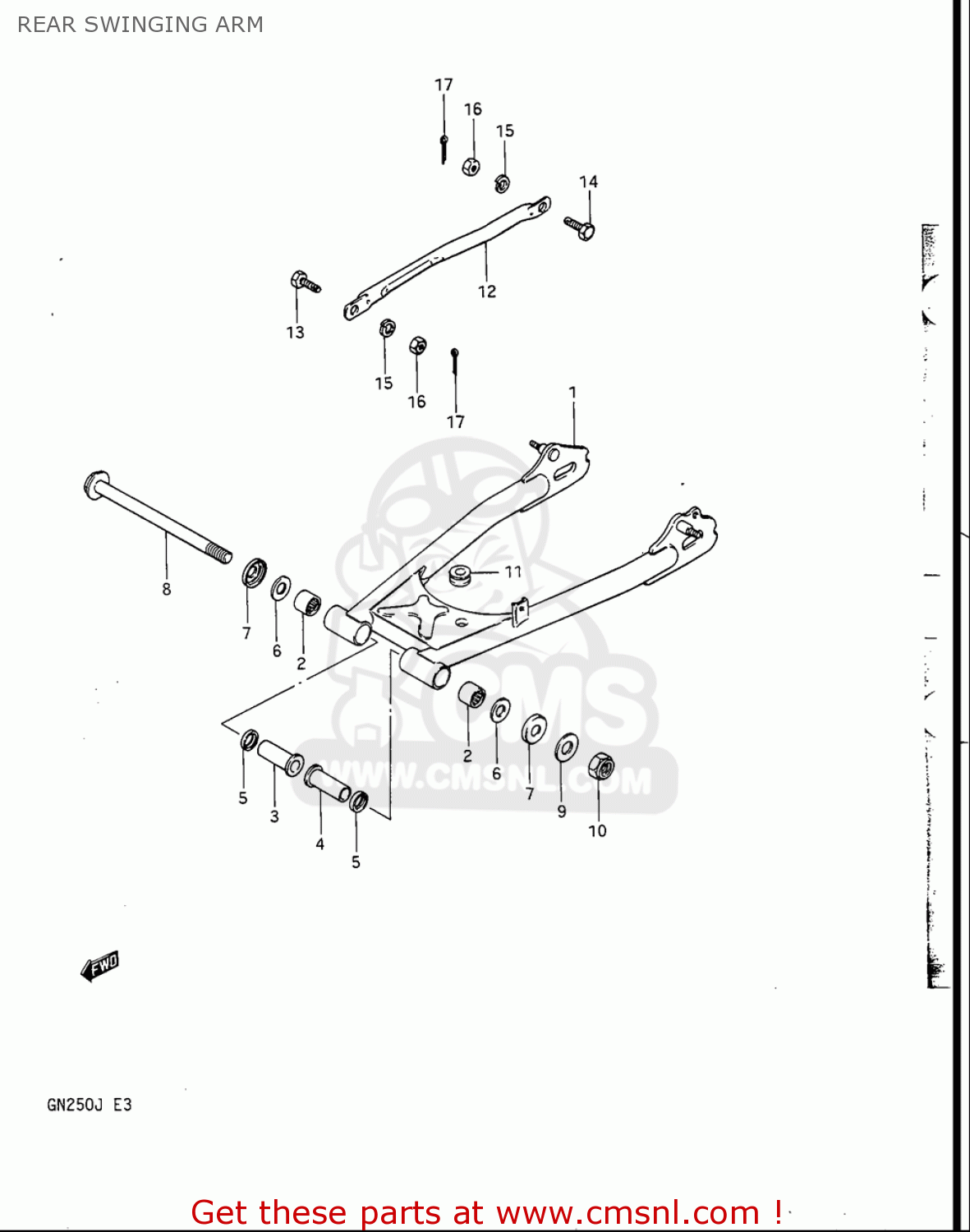

Rear swinging arm diagram GN250 1988 (J) USA (E03)

REAR SWINGING ARM GN250 1988 (J) USA (E03)

REAR SWINGING ARM GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100038300019
ref: 1

SWINGINGARM ASSY,RR

€ 210.00

2

0926320041
ref: 2

BEARING(20X27X20)

€ 15.00

5

0928620001
ref: 5

SEAL,OIL(20X27X5)

€ 2.50

8

6121138301
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 23.50

9

0832201147
ref: 9

WASHER

€ 2.00

10

0831921148
ref: 10

NUT 14MM

€ 3.00

11

0932008020
ref: 11

CUSHION

€ 3.00

13

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

14

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

15

0832101087
ref: 15

WASHER,LOCK

€ 2.00

16

0914008008
ref: 16

NUT

€ 1.50

17

041112020A
ref: 17

PIN

€ 1.50
