Buy Suzuki GN Parts Online
home
MUFFLER
GN250 1988 (J) USA (E03)

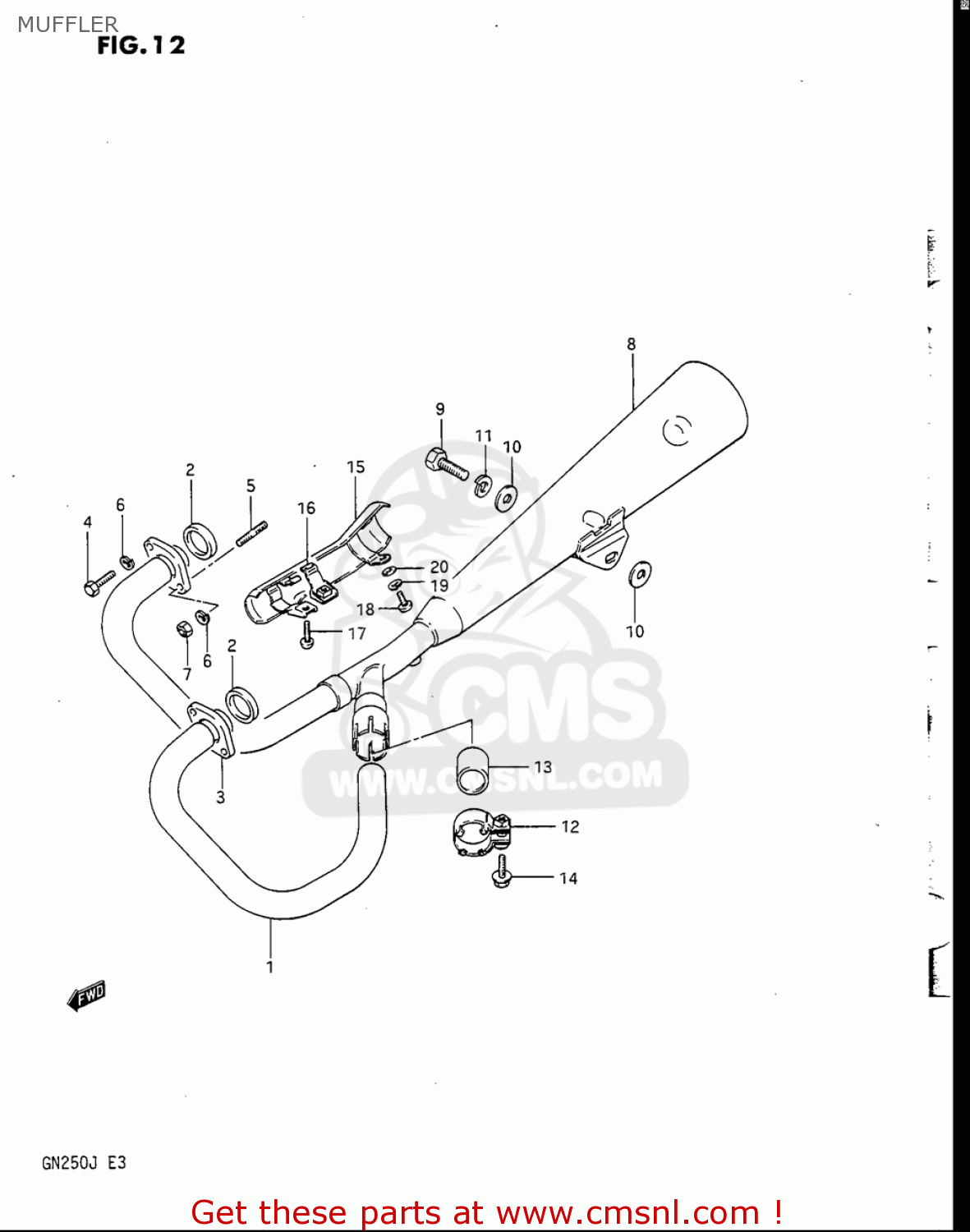

Muffler diagram GN250 1988 (J) USA (E03)
MUFFLER GN250 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1416038300
ref: 1
PIPE,EXHAUST,L
€ 95.00
2
1418137D00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 7.00
3
1418238300
ref: 3
CLAMP
€ 21.50
4
0150006257
ref: 4
BOLT
€ 2.00
5
014210620A
ref: 5
BOLT,STUD
€ 2.50
6
0832101067
ref: 6
WASHER,LOCK
€ 2.50
7
0831000067
ref: 7
NUT
€ 2.50
8-1
1430538304H01
ref: 8-1
BODY,MUFFLER
€ 239.50
8-2
1430538304H01
ref: 8-2
BODY,MUFFLER
€ 239.50
9
0150010257
ref: 9
BOLT
€ 3.00
10
0832201107
ref: 10
WASHER
€ 2.50
11
0832101107
ref: 11
WASHER,LOCK
€ 2.00
13
1477138301
ref: 13
CONNECTOR,MUFFLER
€ 19.50
14
0150008307
ref: 14
BOLT
€ 2.50
15
1478038303
ref: 15
COVER,MUFFLER
€ 46.00
16
1478538301
ref: 16
CLAMP,MUFFLER COVER
€ 5.00
17
0211205167
ref: 17
SCREW
€ 2.50
18
0211206107
ref: 18
SCREW
€ 1.50
19
0832101067
ref: 19
WASHER,LOCK
€ 2.50
20
0832201067
ref: 20
WASHER
€ 2.00
