CYLINDER

GN250 1988 (J) USA (E03)

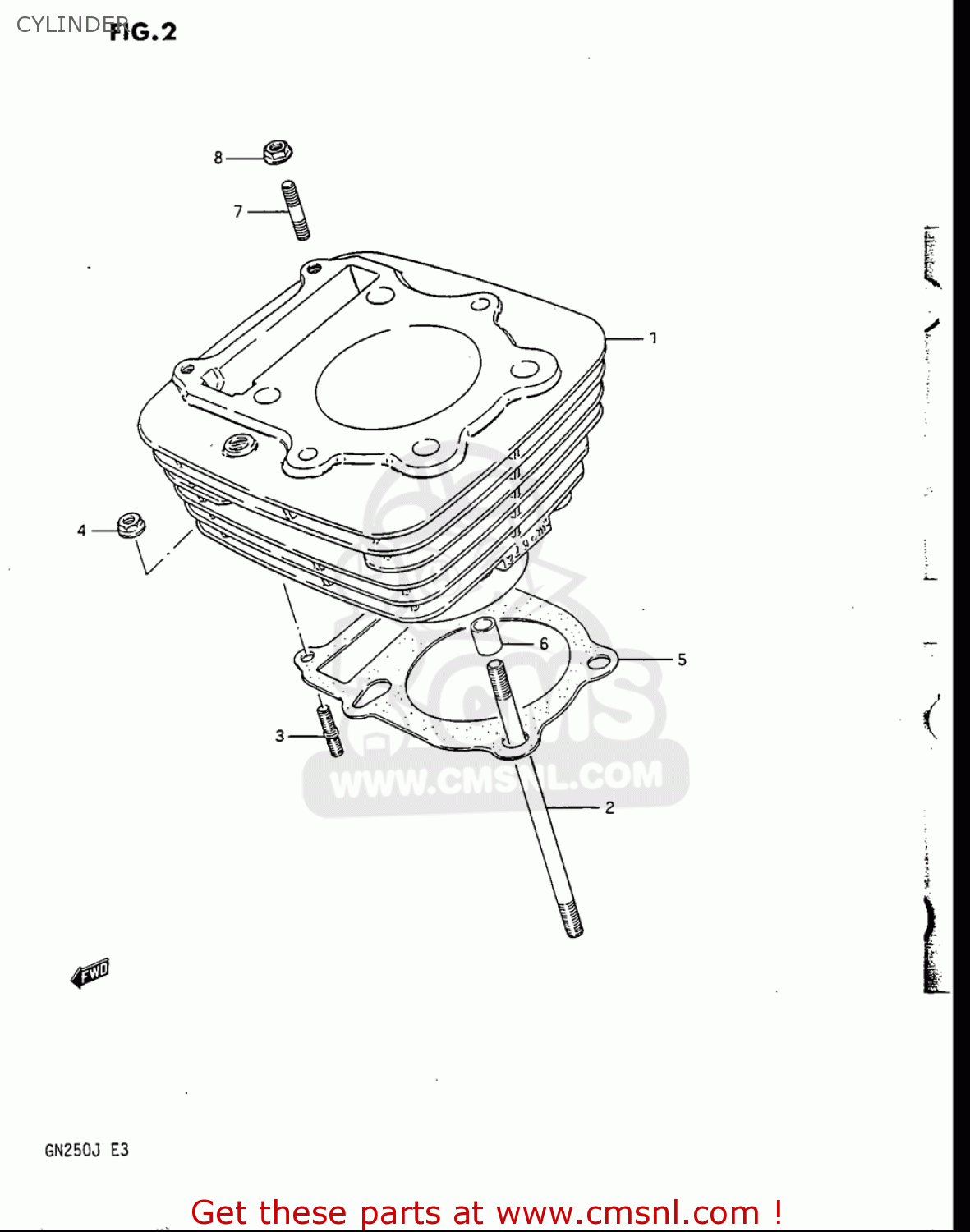

Cylinder diagram GN250 1988 (J) USA (E03)

CYLINDER GN250 1988 (J) USA (E03)

CYLINDER GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

11210382040F0
ref: 1

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106257
ref: 3

BOLT,STUD

€ 2.50

4

0831931067
ref: 4

NUT

€ 2.50

5

1124138301
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50

6

0421113189
ref: 6

PIN

€ 2.50

7

0142106307
ref: 7

BOLT,STUD

€ 2.50

8

0831931067
ref: 8

NUT

€ 2.50
