REAR FENDER

GN250 1988 (J) USA (E03)

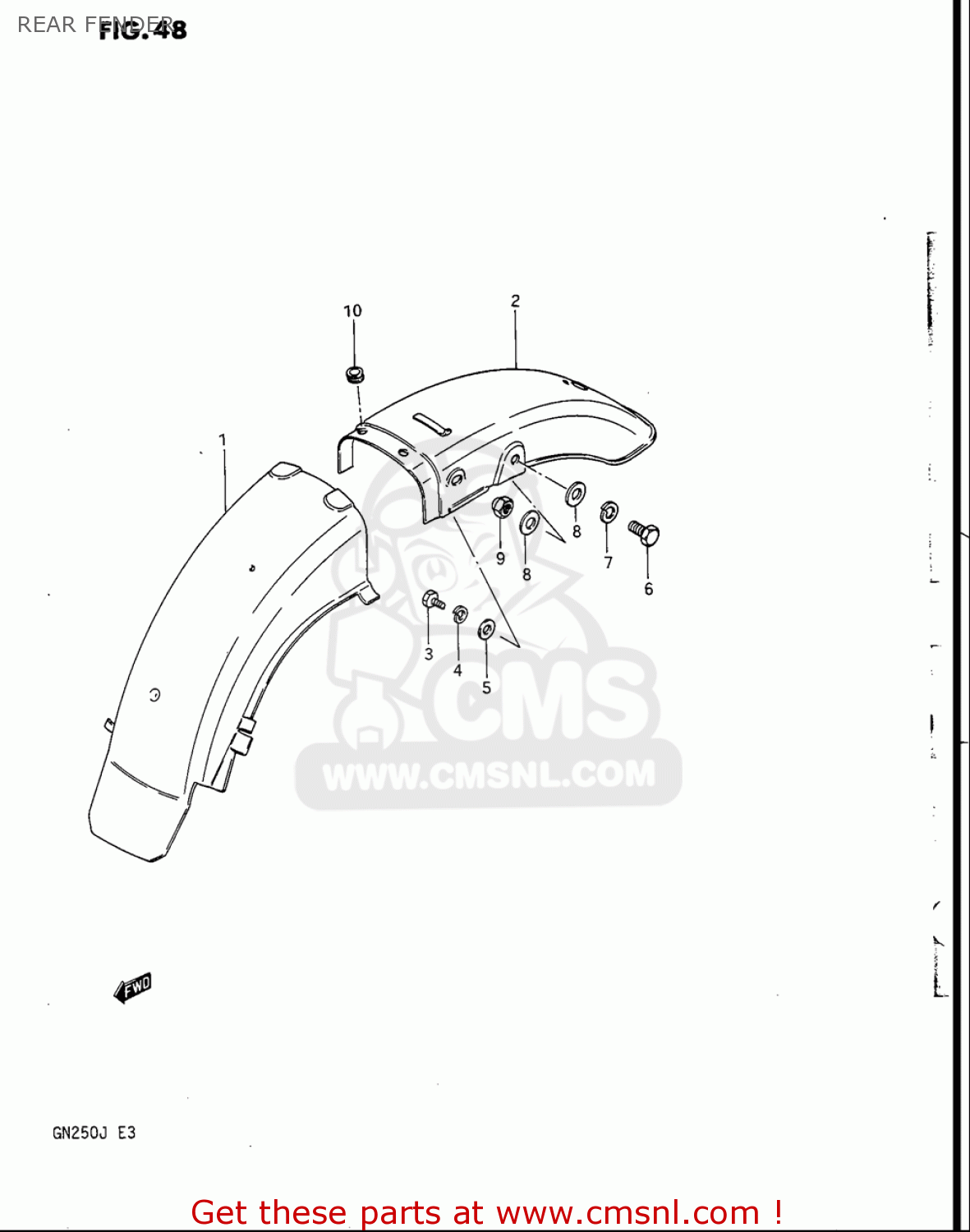

Rear fender diagram GN250 1988 (J) USA (E03)

REAR FENDER GN250 1988 (J) USA (E03)

REAR FENDER GN250 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311238302
ref: 1

BODY,FR

€ 33.50

2

6311038303
ref: 2

FENDER,RR

€ 136.50

3

0150006127
ref: 3

BOLT

€ 2.00

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

0832201067
ref: 5

WASHER

€ 2.00

6

0150008207
ref: 6

BOLT

€ 3.00

7

0832101087
ref: 7

WASHER,LOCK

€ 2.00

8

0832201087
ref: 8

WASHER

€ 2.00

9

0831310087
ref: 9

NUT

€ 2.50

10

0932006504
ref: 10

CUSHION

€ 4.00
