AIR CLEANER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

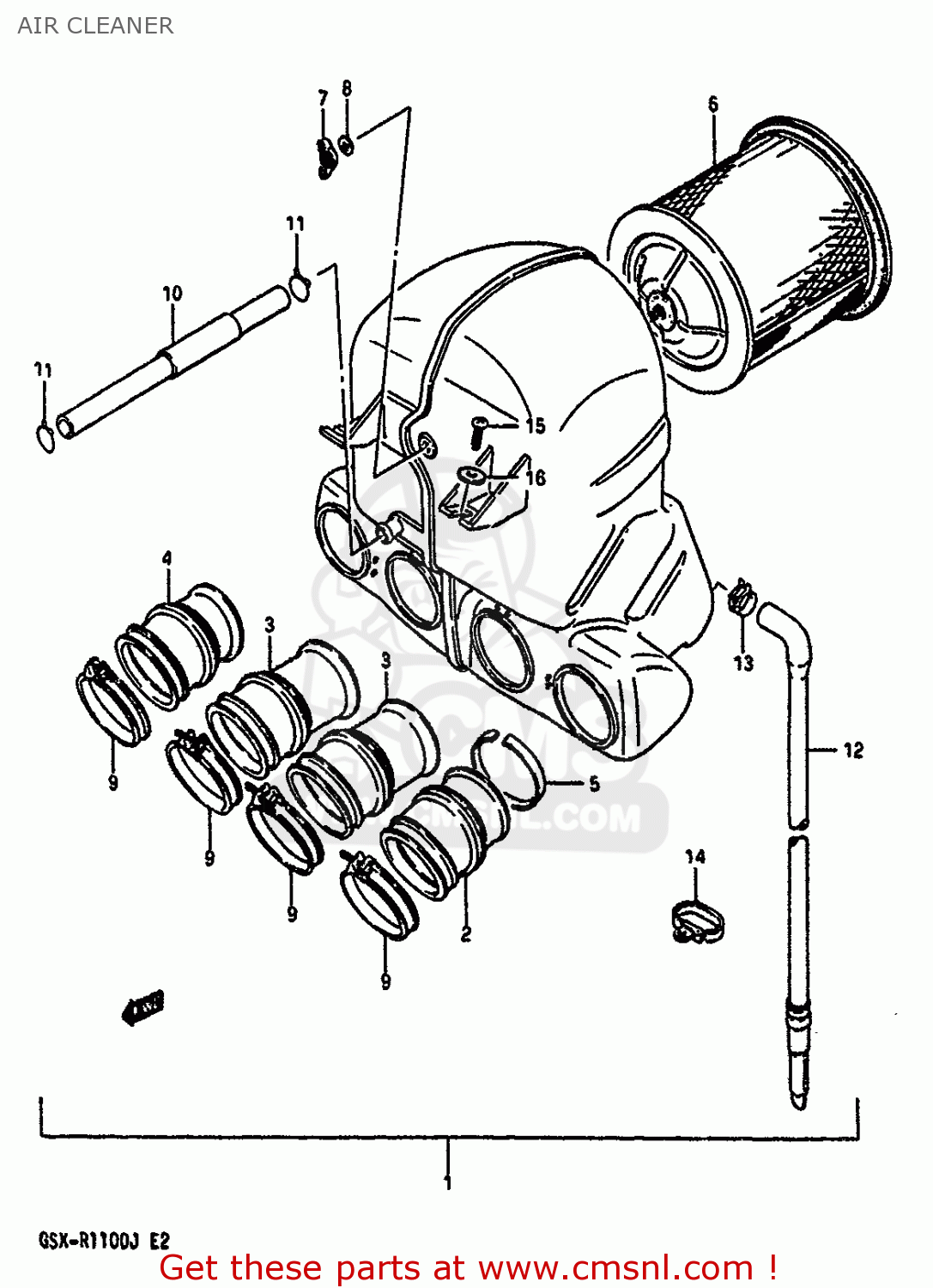

Air cleaner diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1370006B00
ref: 1

CLEANER ASSEMBLY,AIR

€ 245.50

1388106B00
ref: 2

TUBE,OUTLET,L

€ 20.00

1388206B00
ref: 3

TUBE,OUTLET MIDDLE,L/R

€ 31.00

1388306B00
ref: 4

TUBE,OUTLET,R

€ 28.50

1388545450
ref: 5

RING

€ 8.00

1378006B00
ref: 6

FILTER

€ 44.00

0831712058
ref: 7

NUT, WING

€ 2.00

0832211058
ref: 8

WASHER 5MM

€ 2.50

0940256208
ref: 9

CLAMP

€ 3.50

1385006B00
ref: 10

TUBE,BREATHER

€ 8.50

0940114301
ref: 11

CLIP

€ 2.00

1387021447
ref: 12

DRAIN TUBE

€ 23.50

1382543400
ref: 13

CLIP

€ 2.50

1387927A01
ref: 14

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

0211206208
ref: 15

SCREW

€ 2.00

0916006007
ref: 16

WASHER

€ 2.00
