OIL PUMP

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

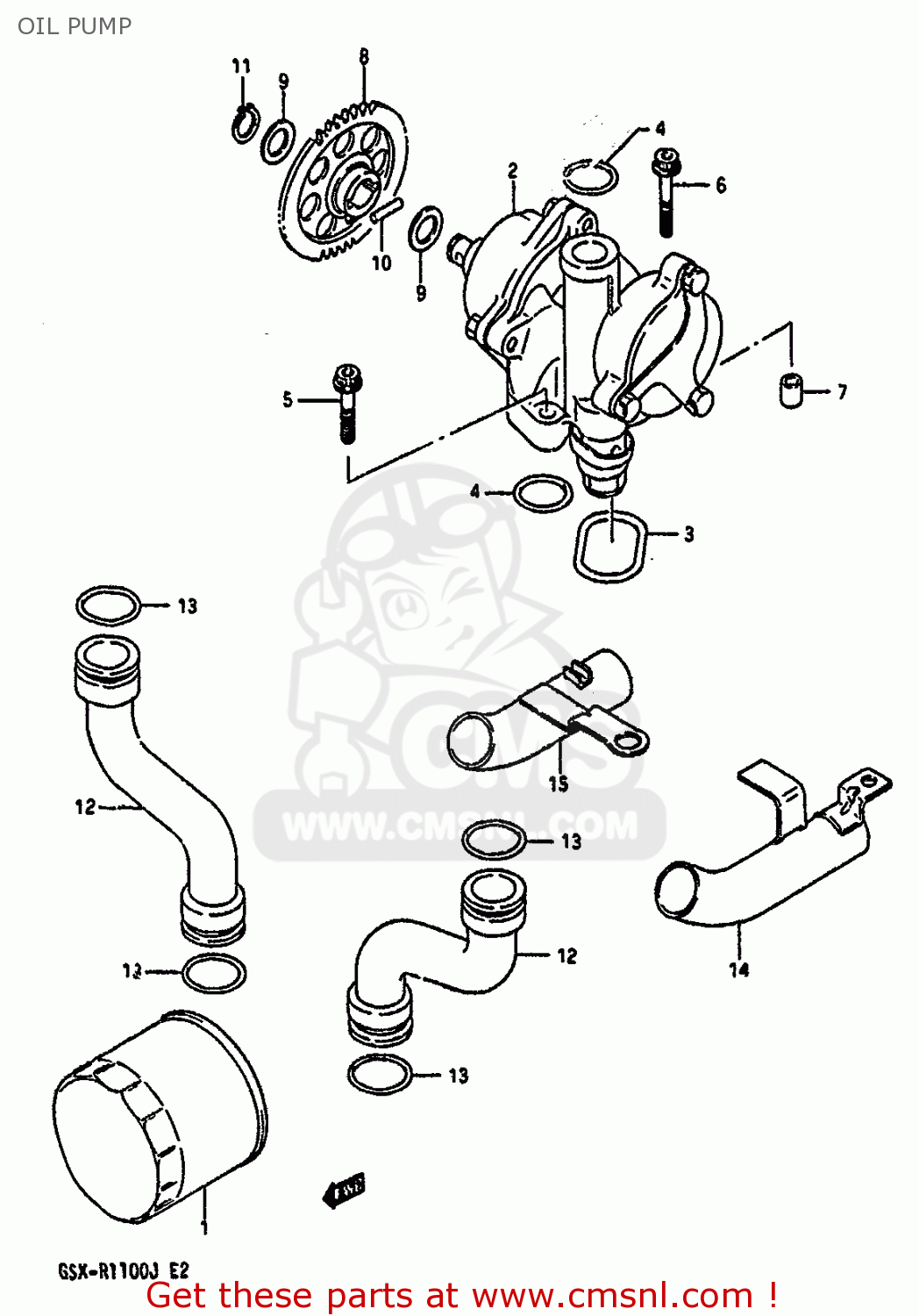

Oil pump diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1651006B00
ref: 1

FILTER,OIL

€ 12.50

1640006B01
ref: 2

PUMP ASSY,OIL

€ 348.50

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

0712006308
ref: 5

BOLT

€ 2.50

0712006358
ref: 6

BOLT

€ 3.50

0421109129
ref: 7

PIN

€ 2.00

1633106B010B0
ref: 8

GEAR,OIL PUMP DRIVEN

€ 37.00

0822112205
ref: 9

SHIM

€ 1.50

0926105006
ref: 10

PIN(5X18)

€ 1.50

0833131128
ref: 11

CIRCLIP

€ 2.00

1648006B02
ref: 12

PIPE COMP,OIL OUTLET

€ 39.00

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

1653027A01
ref: 14

PIPE,OIL,OUTLET,UNDER

€ 22.00

1654027A01
ref: 15

PIPE,OIL,OUTLET,UNDER

€ 23.00
