COWLING (MODEL J,13Z)

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

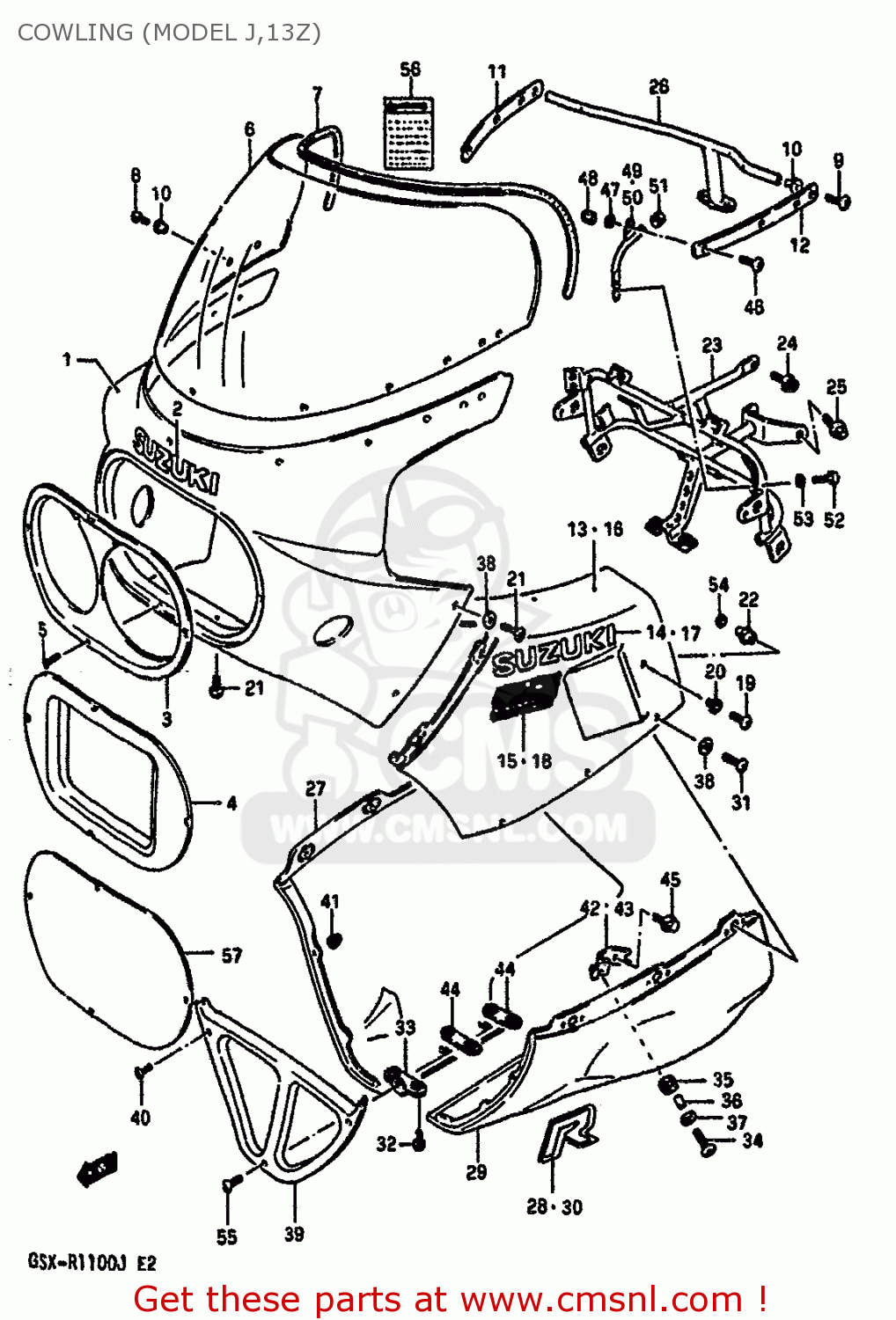

Cowling (model j,13z) diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL J,13Z) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J,13Z) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J,13Z) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440027B1013Z
ref: 1-1
BODY ASSY,COWLING (BLACK)
€ 832.50
1-2
9440006B8013Z
ref: 1-2
E18
BODY ASSY,COWLING (BLACK)
€ 0.00
2
6827104A0038Z
ref: 2
EMBLEM
€ 9.00
3
9443527A00291
ref: 3
COVER,COWLING FR
9443527A00291
€ 35.00
4
9443527A20291
ref: 4
E18
COVER,FRONT (BLACK)
€ 42.00
5
0354104125
ref: 5
SCREW
0354104125
€ 1.50
6-1
9461106B01
ref: 6-1
WINDSCREEN
€ 457.50
6-2
9461128A00
ref: 6-2
OPT HARD COATING
SCREEN,WIND (SMOKE)
€ 457.50
7-1
9463127A00
ref: 7-1
MOLDING,SCREEN
9463127A00
€ 15.00
7-2
9463127A10
ref: 7-2
E17
MOLDING
€ 14.00
8
0913905025
ref: 8
SCREW(5X14)
0913905025
€ 2.00
9
0913905032
ref: 9
SCREW(5X18)
0913905032
€ 2.50
10
9461927A00
ref: 10
NUT,COWLING SCREEN
9461927A00
€ 6.50
11
9452927A00
ref: 11
PLATE,RR VIEW MIRROR,R
9452927A00
€ 6.00
12
9453927A00
ref: 12
PLATE,RR VIEW MIRROR,L
9453927A00
€ 4.50
13-1
9443006B8013Z
ref: 13-1
COVER,SIDE RH (BLACK)
€ 319.00
13-2
9443006B9013Z
ref: 13-2
E39
COVER,SIDE RH (BLACK)
€ 0.00
14
6818132B0038Z
ref: 14
EMBLEM,COWLING SIDE
6818132B0038Z
€ 12.00
15
6868127B109WW
ref: 15
EMBLEM
€ 8.00
16-1
9444006B8013Z
ref: 16-1
COVER,SIDE LH (BLACK)
€ 247.00
16-2
9444006B9013Z
ref: 16-2
E39
COVER,SIDE LH (BLACK)
€ 0.00
17
6818132B0038Z
ref: 17
EMBLEM,COWLING SIDE
6818132B0038Z
€ 12.00
18
6868127B109WW
ref: 18
EMBLEM
€ 8.00
19
0913906027
ref: 19
SCREW(6X12)
0913906027
€ 3.00
20
0916906033
ref: 20
WASHER
0916906033
€ 1.50
21
0913906030
ref: 21
SCREW(6X16)
0913906030
€ 3.50
22
9457004A00
ref: 22
CUSHION,COWLING
9457004A00
€ 12.50
23
9451006B00
ref: 23
BRACE,COWLING FR
9451006B00
€ 116.50
24
0712008205
ref: 24
BOLT
0712008205
€ 3.00
25
0712008165
ref: 25
BOLT
€ 3.00
26
9453006B00
ref: 26
BRACE,COWLING BODY RR
9453006B00
€ 38.50
27
9447027B1013Z
ref: 27
COVER,LOWER RH (BLACK)
€ 626.00
28
6826127B1039B
ref: 28
EMBLEM,COWLING LWR
€ 20.00
29
9448027B1013Z
ref: 29
COVER,LOWER LH (BLACK)
€ 626.00
30
6826127B1039B
ref: 30
EMBLEM,COWLING LWR
€ 20.00
31
0913906030
ref: 31
SCREW(6X16)
0913906030
€ 3.50
32
0913906039
ref: 32
SCREW(6X16)
0913906039
€ 2.50
33
9449006B00
ref: 33
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
34
0913906028
ref: 34
SCREW(6X20)
0913906028
€ 3.50
35
0932009016
ref: 35
CUSHION
0932009016
€ 2.50
36
0918006152
ref: 36
SPACER
0918006152
€ 3.00
37
0916006056
ref: 37
WASHER(6.5X18X1)
0916006056
€ 2.00
38
0916107005
ref: 38
WASHER
0916107005
€ 3.00
39
9447506B01019
ref: 39
COVER,COWLING,LOWER,FRONT
9447506B01019
€ 121.50
40
0913905025
ref: 40
SCREW(5X14)
0913905025
€ 2.00
41
0831626055
ref: 41
NUT
0831626055
€ 2.00
42
9458006B00
ref: 42
BRACE,COWLING LWR,R
9458006B00
€ 5.00
43
9459006B00
ref: 43
BRACE,COWLING LWR,L
9459006B00
€ 5.50
44
9449306B00
ref: 44
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
45
0151706128
ref: 45
BOLT
€ 2.50
46
0913906030
ref: 46
SCREW(6X16)
0913906030
€ 3.50
47
0832121064
ref: 47
WASHER,LOCK
0832121064
€ 2.00
48
0831311065
ref: 48
NUT 6MM
0831311065
€ 2.00
49
9455006B00
ref: 49
BRACE,MIRROR,R
9455006B00
€ 19.00
50
9456006B00
ref: 50
BRACE,MIRROR,L
9456006B00
€ 17.00
51
0925008008
ref: 51
PLUG(OD:12)
0925008008
€ 3.50
52
0110706165
ref: 52
BOLT 6X16
0110706165
€ 2.00
53
0832121064
ref: 53
WASHER,LOCK
0832121064
€ 2.00
54
0832131064
ref: 54
WASHER
0832131064
€ 2.00
55
0913906030
ref: 55
SCREW(6X16)
0913906030
€ 3.50
56-1
6861248B00
ref: 56-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
56-2
6861248B10
ref: 56-2
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
57
9441927A00
ref: 57
OPT
COVER,HEADLAMP
9441927A00
€ 131.50
