CYLINDER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

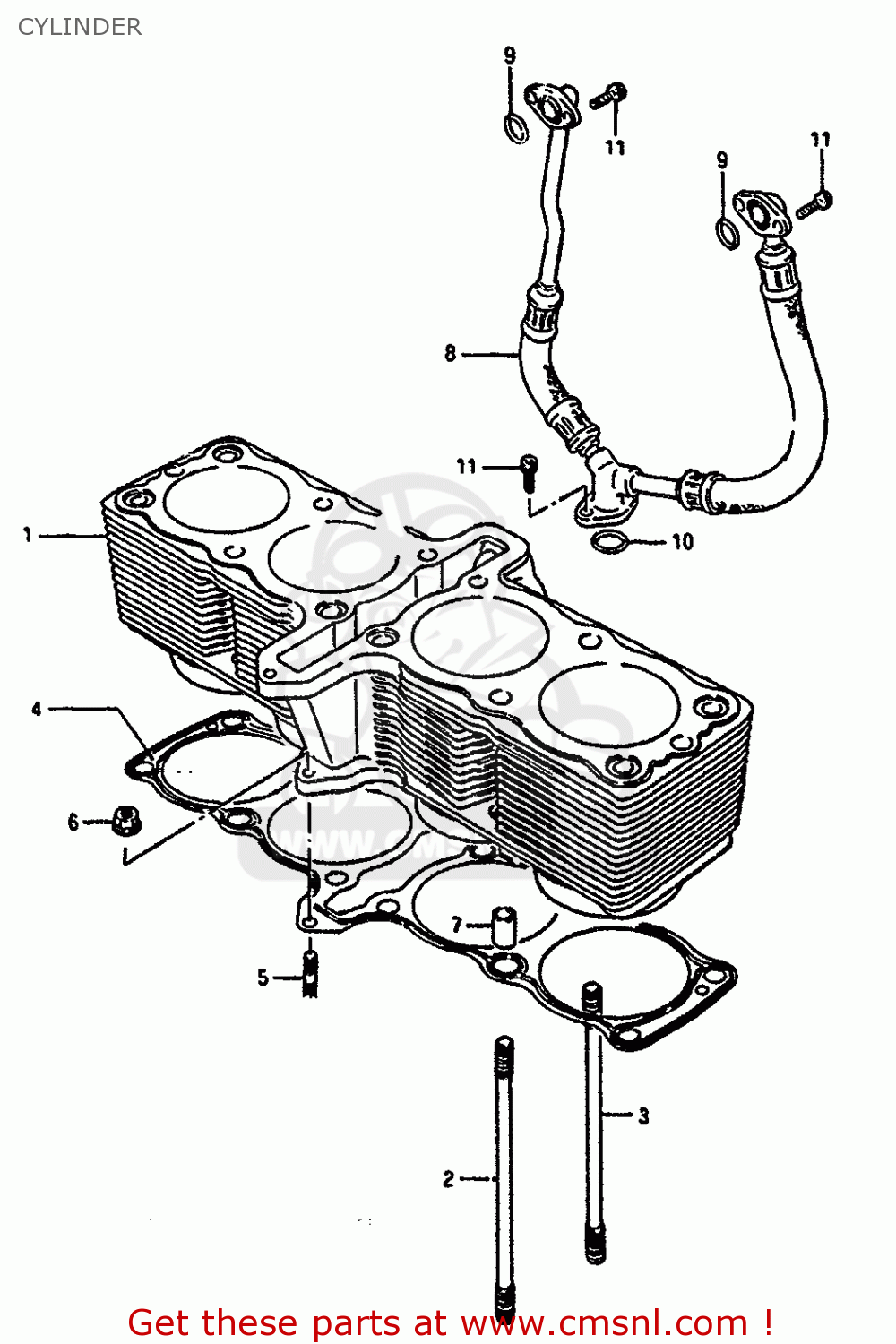

Cylinder diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1121006B02
ref: 1
FROM 11210-06B01

CYLINDER

€ 864.00

2

0910810081
ref: 2

BOLT,STUD

€ 12.50

3

0910810080
ref: 3

STUD

€ 15.50

4

1124127A02
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

5

0142106205
ref: 5

STUD BOLT L:20

€ 2.50

6

0831616064
ref: 6

NUT 6MM

€ 2.50

7

0920613006
ref: 7

PIN

€ 9.00

8-1

1132806B00
ref: 8-1
MODEL G

HOSE,OIL HEAD COOLER

€ 172.50

8-2

1132848B00
ref: 8-2
MODEL H/J

HOSE

€ 283.50

9

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0711006165
ref: 11

BOLT

€ 3.00
