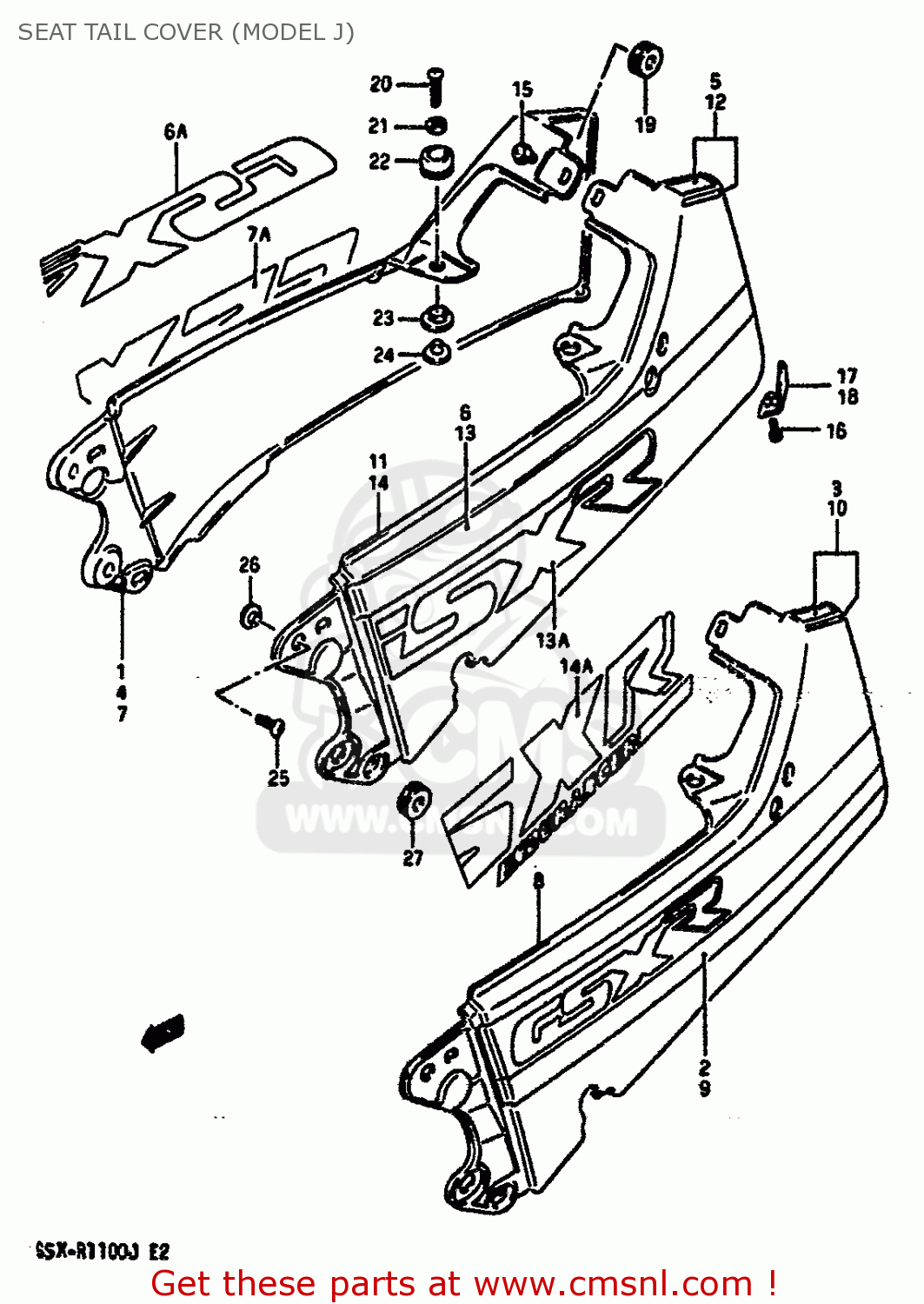

SEAT TAIL COVER (MODEL J)

ref

part #

description

quantity

1-1

4551006B5022P
ref: 1-1
FOR 9HD

COVER,SEAT TAIL RH (RED)

€ 267.50

1-2

4551006B6022P
ref: 1-2
E39,FOR 9HD

COVER COMP,SEAT TAIL

€ 91.50

2

6816506B002GL
ref: 2
FOR 22P

TAPE,SEAT TAIL COVER,RIGHT

€ 31.50

3

6816506B1013Z
ref: 3
FOR 22P

TAPE,SEAT TAIL COVER,RIGHT

€ 0.00

4-1

4551006B702FF
ref: 4-1
FOR 9SR

COVER,SEAT TAIL RH (BLUE/BLUE)

€ 267.50

4-2

4551006B802FF
ref: 4-2
E39,FOR 9SR

COVER COMP,SEAT TAIL

€ 91.50

5

6816506B1022R
ref: 5
FOR 2FF

TAPE,SEAT TAIL COVER,RIGHT

€ 0.00

6

6816506B2022R
ref: 6
FOR 2FF

TAPE,SEAT TAIL COVER,RIGHT

€ 0.00

6A

6816106B0022R
ref: 6A
FOR 2FF

EMBLEM,RIGHT

€ 17.00

7-1

4551027B1013Z
ref: 7-1

COVER SEAT TAI

€ 267.50

7-2

4551006B9013Z
ref: 7-2
E39

COVER,SEAT TAIL RH (BLACK)

€ 91.50

7A

6816127B1039B
ref: 7A
FOR 13Z

EMBLEM,RH (GOLD)

€ 10.00

8-1

4559006B5022P
ref: 8-1
FOR 9HD

COVER,SEAT TAIL LH (RED)

€ 216.00

8-2

4559006B6022P
ref: 8-2
E39,FOR 9HD

COVER,SEAT TAIL

€ 216.00

9

6824506B002GL
ref: 9
FOR 22P

TAPE,SEAT TAIL COVER,LEFT

€ 39.00

10

6824506B1013Z
ref: 10
FOR 22P

TAPE,SEAT TAIL COVER,LEFT

€ 0.00

11-1

4559006B702FF
ref: 11-1
FOR 9SR

COVER,SEAT TAIL LH (BLUE/BLUE)

€ 216.00

11-2

4559006B802FF
ref: 11-2
E39,FOR 9SR

COVER,SEAT TAIL

€ 216.00

12

6824506B1022R
ref: 12
FOR 2FF

TAPE,SEAT TAIL COVER,LEFT

€ 0.00

13

6824506B2022R
ref: 13
FOR 2FF

TAPE,SEAT TAIL COVER,LEFT

€ 0.00

13A

6824106B0022R
ref: 13A
FOR 2FF

EMBLEM,LEFT

€ 17.00

14-1

4559027B1013Z
ref: 14-1

COVER,SEAT TAIL LH (BLACK)

€ 216.00

14-2

4559006B9013Z
ref: 14-2
E39

COVER,SEAT TAIL LH (BLACK)

€ 216.00

14A

6824127B1039B
ref: 14A
FOR 13Z

EMBLEM,LH (GOLD)

€ 10.00

15

0940906307
ref: 15

CLIP

€ 3.00

16

0214205126
ref: 16

SCREW

€ 1.50

17

4553027A00
ref: 17

PLATE,SEAT TAIL COVER,RH

€ 5.50

18

4553027A10
ref: 18

PLATE,SEAT TAIL COVER,L

€ 5.50

19

0932008013
ref: 19

CUSHION

€ 4.00

20

0214206305
ref: 20

SCREW

€ 2.00

21

0916006069
ref: 21

WASHER

€ 2.00

22

4514904A00
ref: 22

CUSHION,TAIL COVER UPR

€ 2.00

23

4532604A00
ref: 23

CUSHION,TAIL COVER LWR

€ 2.50

24

4553704A00
ref: 24

SPACER,SEAT TAIL COVER

€ 1.50

25

0214206166
ref: 25

SCREW

€ 2.50

26

0916906031
ref: 26

WASHER

€ 2.00

27

0932008018
ref: 27

CUSHION

€ 4.00

22

0214206166
ref: 22

SCREW

€ 2.50

23

0916006057
ref: 23
MODEL G

WASHER

€ 2.00

24

0916906031
ref: 24

WASHER

€ 2.00

25

0932008018
ref: 25

CUSHION

€ 4.00

all assemblies
