FRONT BRAKE HOSE

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

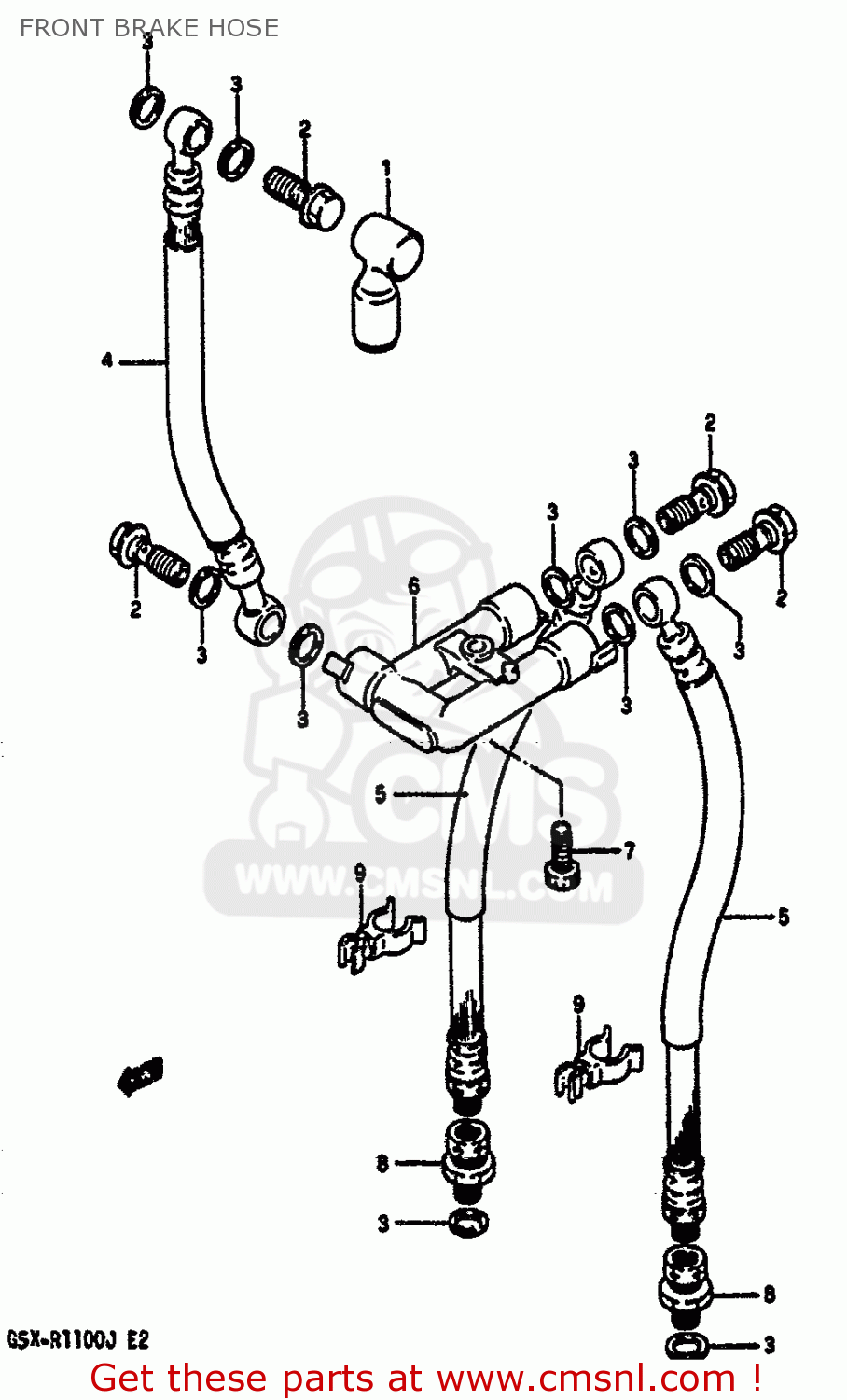

Front brake hose diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

FRONT BRAKE HOSE GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

FRONT BRAKE HOSE GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948006B00
ref: 4

HOSE,FRONT BRAKE NO.1

€ 56.50

5

5924006B00
ref: 5

HOSE,FRONT BRAKE NO.2

€ 56.50

6

5949127A00
ref: 6

JOINT,BRAKE HOSE

€ 35.00

7

0711006165
ref: 7

BOLT

€ 3.00

8

5929043500
ref: 8

ADAPTER,BRAKE HOSE

€ 34.50

9

0940800091
ref: 9

CLAMP

€ 3.00
