STARTER CLUTCH

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

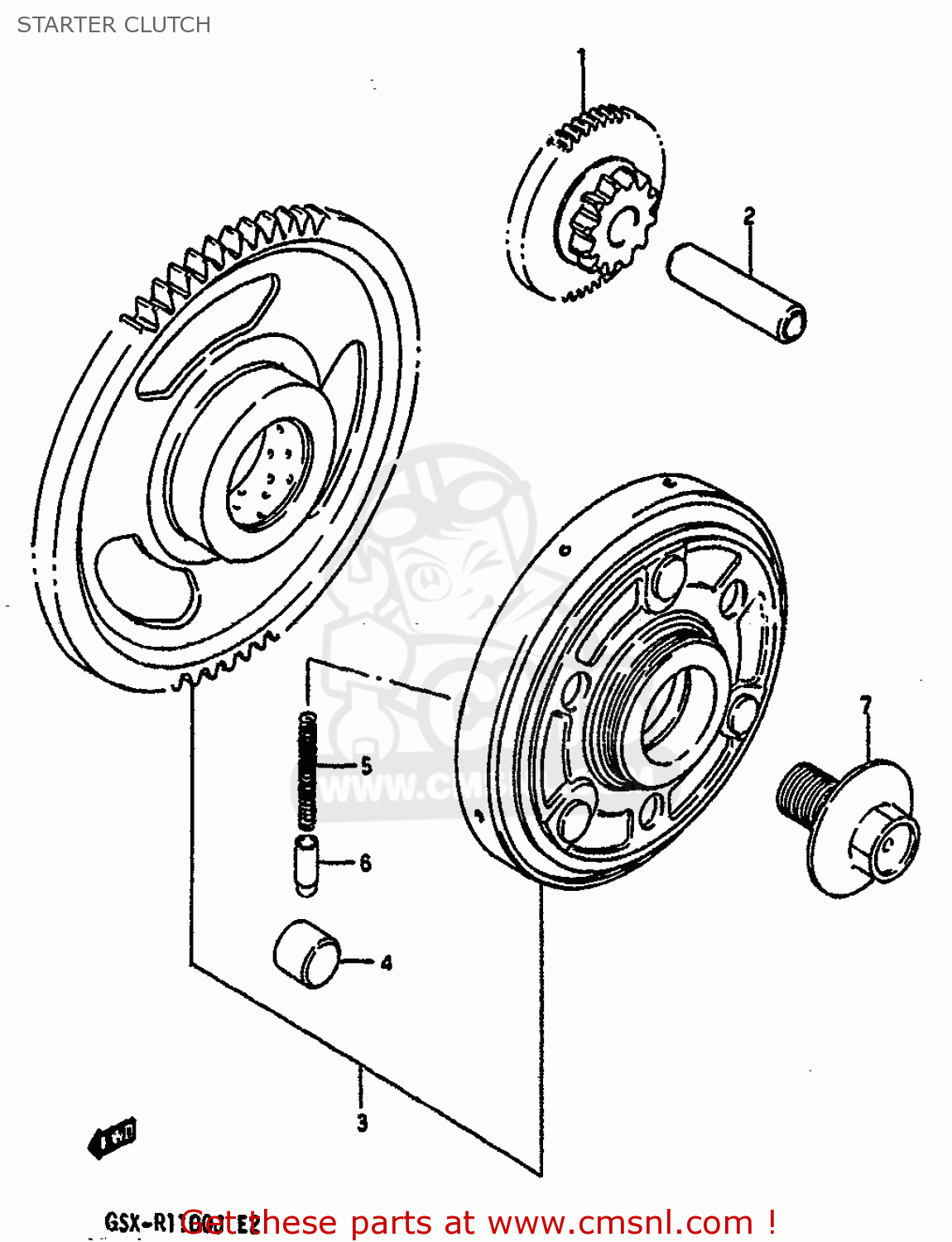

Starter clutch diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

STARTER CLUTCH GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

STARTER CLUTCH GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260006841
ref: 3
FROM 12600-06840

CLUTCH SET,STARTER

€ 281.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910314005
ref: 7

BOLT(14X21)

€ 17.00
