HANDLE SWITCH

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

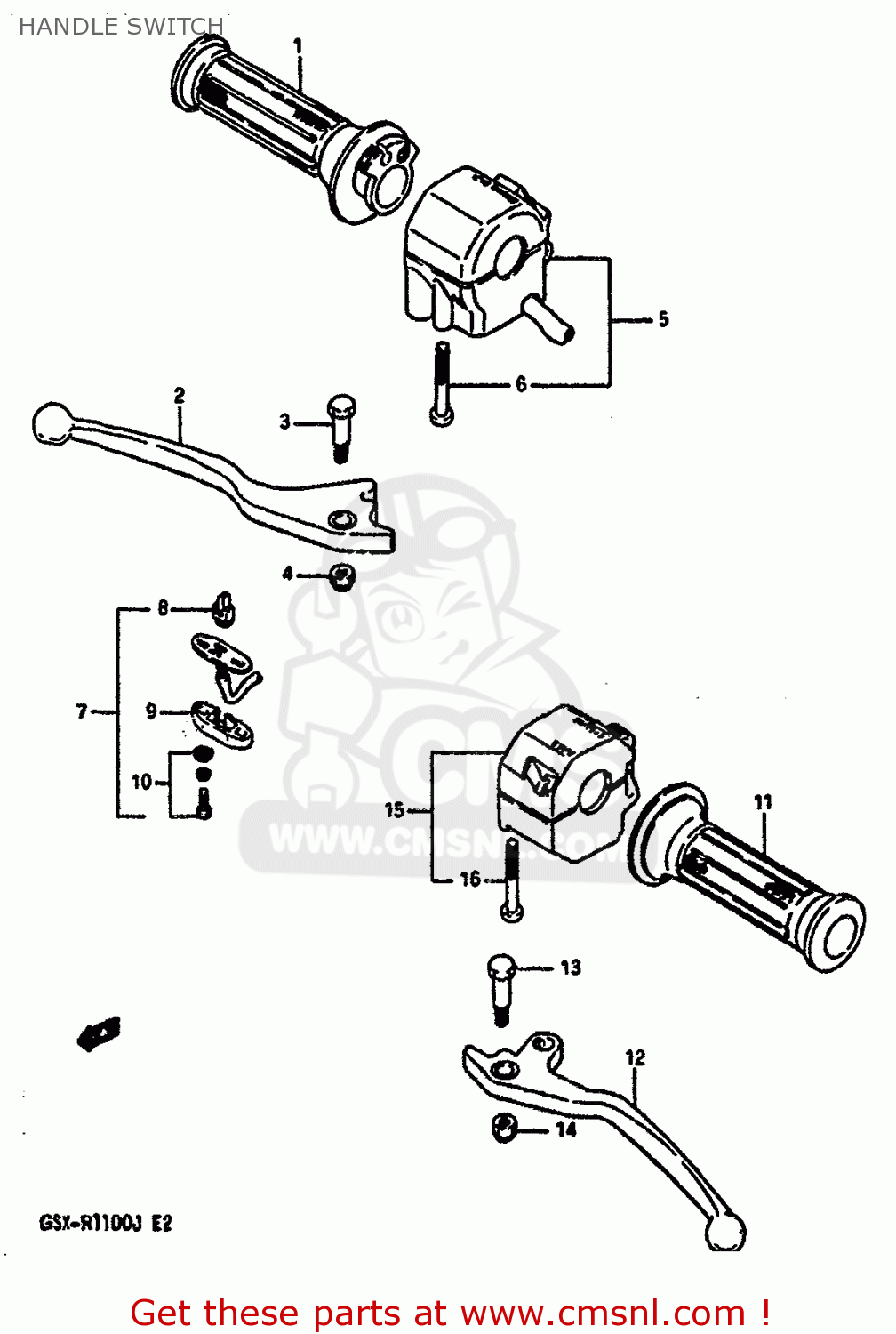

Handle switch diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

5711049500
ref: 1

GRIP,THROTTLE

€ 26.00

5742005A10
ref: 2

LEVER,BRAKE

€ 16.50

5743105A00
ref: 3

BOLT,LEVER

€ 8.50

0831921065
ref: 4

NUT

€ 2.50

5-1

3720006B10
ref: 5-1
E1,E6,E24

SWITCH ASSY,HANDLE RH

€ 118.50

5-2

3720006B00
ref: 5-2
E2,E4,E15,E16,E17,E1

SWITCH ASSY,R

€ 136.50

0211205455
ref: 6

SCREW, 5X45

€ 4.00

5746033700
ref: 7

SWITCH ASSY,STOP

€ 38.50

5746518601
ref: 8

CONTACT,SWITCH

€ 4.50

5748133010
ref: 9

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 10

SCREW

€ 2.50

5721149500
ref: 11

GRIP,L

€ 9.00

5762008A00
ref: 12

LEVER,CLUTCH (BLACK)

€ 31.50

5743105A00
ref: 13

BOLT,LEVER

€ 8.50

0831921065
ref: 14

NUT

€ 2.50

3740006B00
ref: 15

SWITCH ASSY, HANDLE LH

€ 130.00

0211205405
ref: 16

SCREW

€ 2.00
