FOOTREST

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

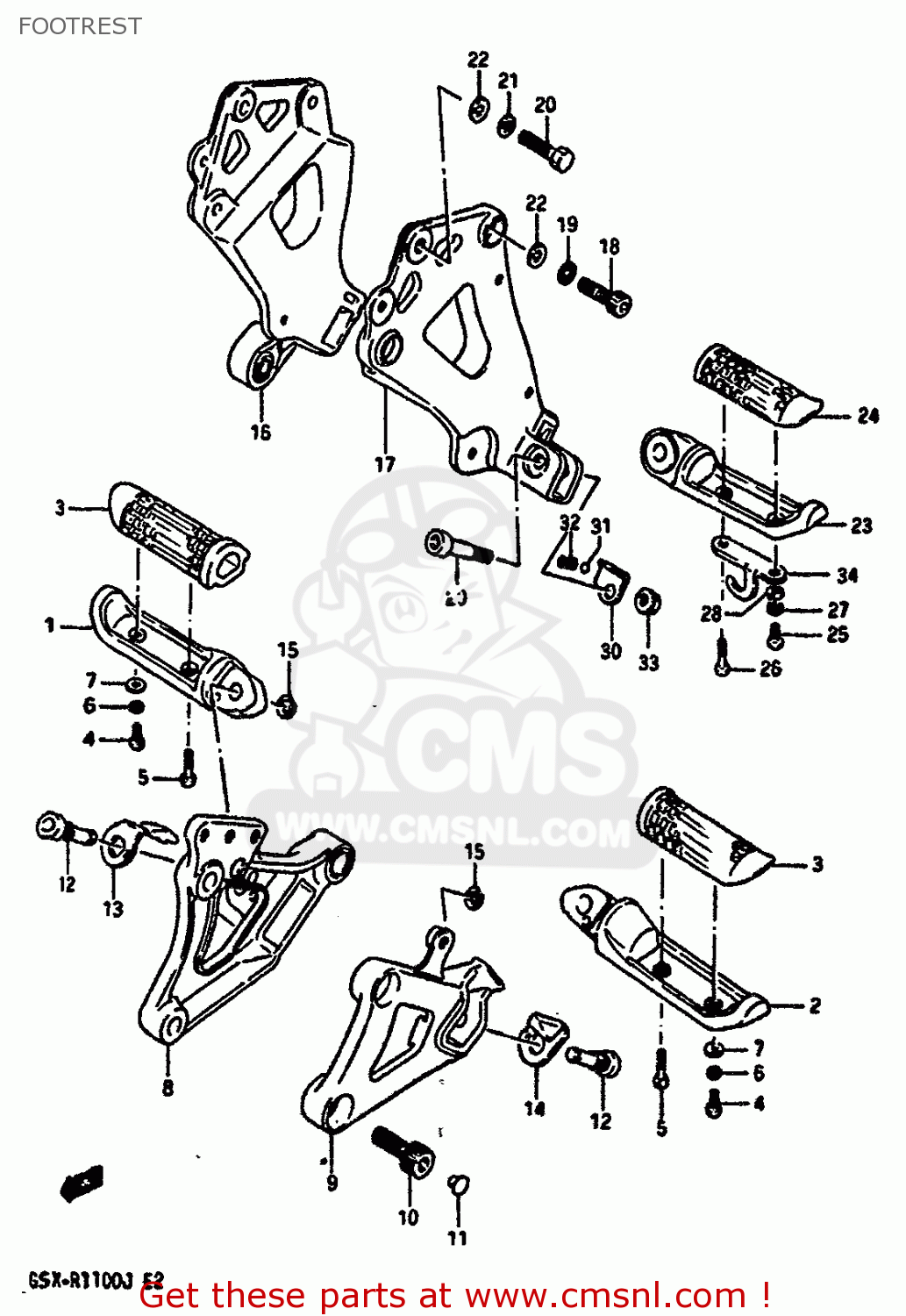

Footrest diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

FOOTREST GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4350106B00
ref: 1
FOOTREST ASSY,FR,R
4350106B00
€ 86.00
2
4350206B00
ref: 2
FOOTREST ASSY,FR,L
4350206B00
€ 46.50
3
4355006B00
ref: 3
RUBBER ASSY,FR FOOTREST
4355006B00
€ 15.50
4
0211205168
ref: 4
SCREW
0211205168
€ 2.50
5
0211205208
ref: 5
SCREW 5X20
0211205208
€ 3.00
6
0832121057
ref: 6
LOCK WASHER
0832121057
€ 2.00
7
0832221057
ref: 7
WASHER
0832221057
€ 2.50
8
4351027A00
ref: 8
BRACKET,FOOTREST,R
4351027A00
€ 115.50
9
4352227A00
ref: 9
BRACKET,FOOTREST,L
4352227A00
€ 85.00
10
0711010258
ref: 10
BOLT
€ 3.00
11
4357534500
ref: 11
CAP
4357534500
€ 1.50
12
4352927A00
ref: 12
BOLT,FR FOOTREST
4352927A00
€ 6.50
13
4358006B00
ref: 13
CUSHION,FR FOOTREST,R
4358006B00
€ 10.50
14
4359006B00
ref: 14
CUSHION,FR FOOTREST,L
4359006B00
€ 10.50
15
0833211068
ref: 15
E RING 6MM
0833211068
€ 2.00
16-1
4381027A00
ref: 16-1
MODEL G
BRACKET
€ 100.50
16-2
4381027A01
ref: 16-2
MODEL H/J
BRACKET,PILLION FOOTREST
4381027A01
€ 100.50
17-1
4382127A00
ref: 17-1
MODEL G
BRACKET
€ 71.50
17-2
4382127A01
ref: 17-2
MODEL H/J
BRACKET,PILLION FOOTREST
4382127A01
€ 71.50
18
0711006257
ref: 18
BOLT
€ 2.50
19
0916406009
ref: 19
WASHER
€ 2.50
20
0110706307
ref: 20
BOLT 6X30
€ 2.50
21
0832121067
ref: 21
WASHER,LOCK
0832121067
€ 2.50
22
0832211068
ref: 22
WASHER 6MM
€ 2.00
23-1
4360106B00
ref: 23-1
FOOTREST ASSEMBLY,PILLION
4360106B00
€ 57.00
23-2
4360206B00
ref: 23-2
FOOTREST ASSY,PILLION,L
4360206B00
€ 52.00
24
4361006B00
ref: 24
RUBBER,PILLION FOOTREST
4361006B00
€ 16.00
25
0211205205
ref: 25
SCREW 5X20
0211205205
€ 2.50
26
0912505066
ref: 26
SCREW(5X25)
0912505066
€ 2.00
27
0832121055
ref: 27
WASHER,LOCK
0832121055
€ 3.00
28
0832221055
ref: 28
WASHER,5MM
0832221055
€ 2.50
29
4364204A00
ref: 29
BOLT,PILLION FOOTREST
4364204A00
€ 4.50
30-1
4363504A00
ref: 30-1
PLATE,SPRING STOP,RIGHT
4363504A00
€ 9.50
30-2
4373504A00
ref: 30-2
PLATE,SPRING STOP LH
4373504A00
€ 4.00
31
0611207004
ref: 31
BALL
€ 1.50
32
0944005003
ref: 32
SPRING
0944005003
€ 1.50
33
0831931065
ref: 33
NUT
0831931065
€ 2.50
34-1
4361906B00
ref: 34-1
HOOK RH
4361906B00
€ 6.00
34-2
4362906B00
ref: 34-2
HOOK,LH
€ 6.00
