CLUTCH

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

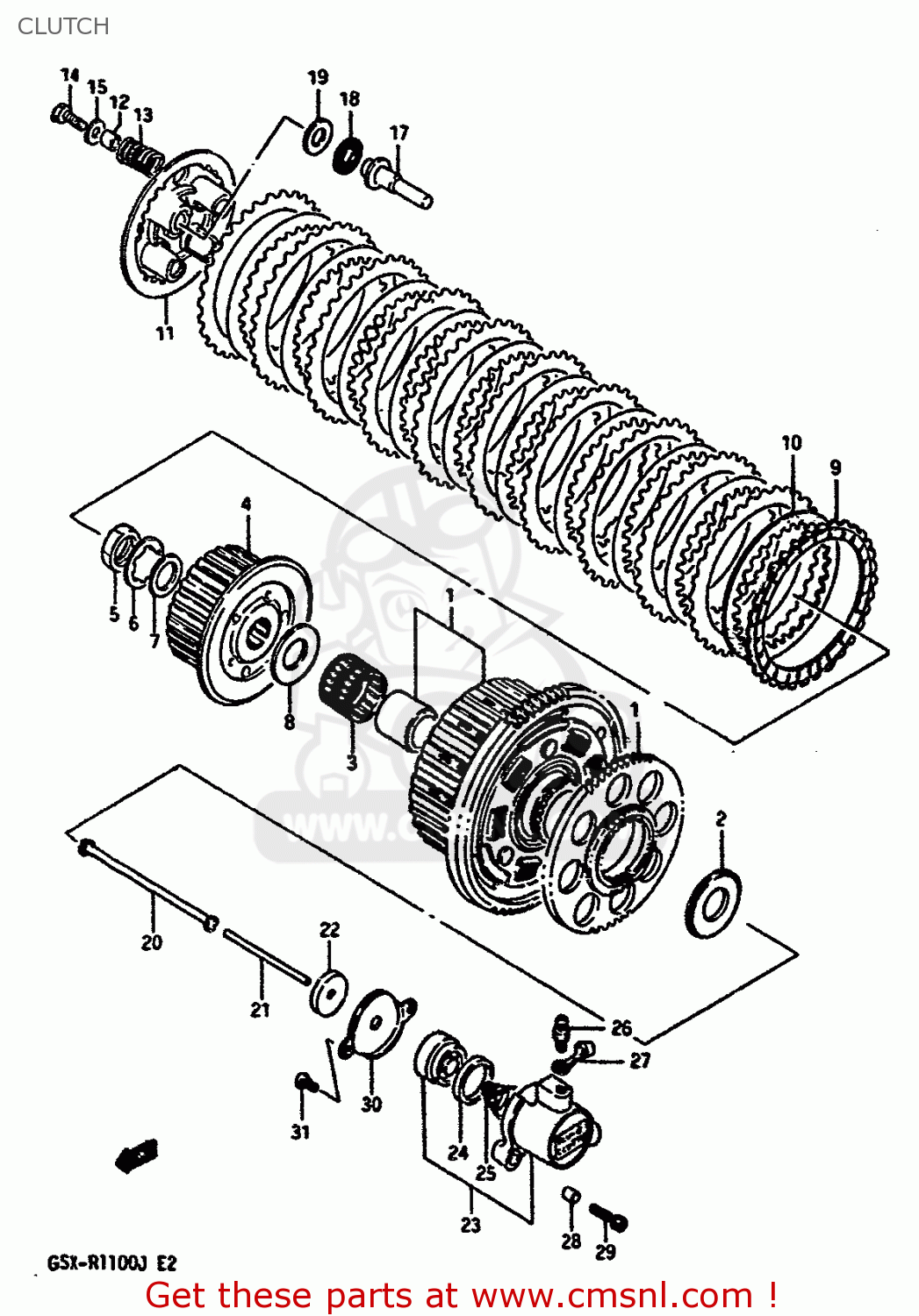

Clutch diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2120006844
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
2120006844
€ 379.00
2
0916025062
ref: 2
WASHER
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4-1
2141006B02
ref: 4-1
MODEL G/H
HUB,CLUTCH SLEEVE
2141006B02
€ 112.50
4-2
2141006B03
ref: 4-2
MODEL J
HUB,CLUTCH SLEEVE
€ 112.50
5
0914024007
ref: 5
NUT
0914024007
€ 4.50
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7
0916424006
ref: 7
WASHER
0916424006
€ 4.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
0916025056
€ 9.50
9-1
2144106B00
ref: 9-1
MODEL G
PLATE,CLUTCH DRIVE (MCA)
2144106B00
€ 18.50
9-2
2144106B01
ref: 9-2
MODEL H/J
PLATE,CLUTCH DRIVE (NAS)
2144106B01
€ 18.50
10
2145106B00
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145106B00
€ 10.50
11
2146206B00
ref: 11
DISC,CLUTCH PRESSURE
2146206B00
€ 83.00
12
0918006174
ref: 12
SPACER(6.2X12X14)
0918006174
€ 5.50
13
0944020013
ref: 13
SPRING
0944020013
€ 5.00
14
0110706307
ref: 14
BOLT 6X30
€ 2.50
15
0916006020
ref: 15
WASHER
0916006020
€ 2.00
16-1
2272106B01
ref: 16-1
MODEL G
GEAR,GENERATOR DRIVE
2272106B01
€ 161.50
16-2
2272106B02
ref: 16-2
MODEL H/J
GEAR,GENERATOR DRIVE
€ 161.50
17
2312106B00
ref: 17
PIECE,CLUTCH PUSH
€ 19.50
18
0926315003
ref: 18
BEARING(15X28X2)
0926315003
€ 7.00
19
0916015015
ref: 19
WASHER
€ 4.00
20
2311027A00
ref: 20
ROD,CLUTCH
2311027A00
€ 17.00
21
2311115501
ref: 21
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
22
0928506015
ref: 22
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
23
2316006B00
ref: 23
CYLINDER,CLUTCH RELEASE
2316006B00
€ 122.50
24
2316306B00
ref: 24
CUP
2316306B00
€ 5.50
25
2316405A00
ref: 25
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
26
5912101A00
ref: 26
BLEEDER
5912101A00
€ 8.50
27
5912201A00
ref: 27
CAP,BLEEDER
5912201A00
€ 4.50
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29
0711006255
ref: 29
BOLT
0711006255
€ 3.00
30
2311727A02
ref: 30
PLATE,CLUTCH PUSH ROD
€ 6.50
31
0211206106
ref: 31
SCREW
€ 1.50
