TRANSMISSION

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

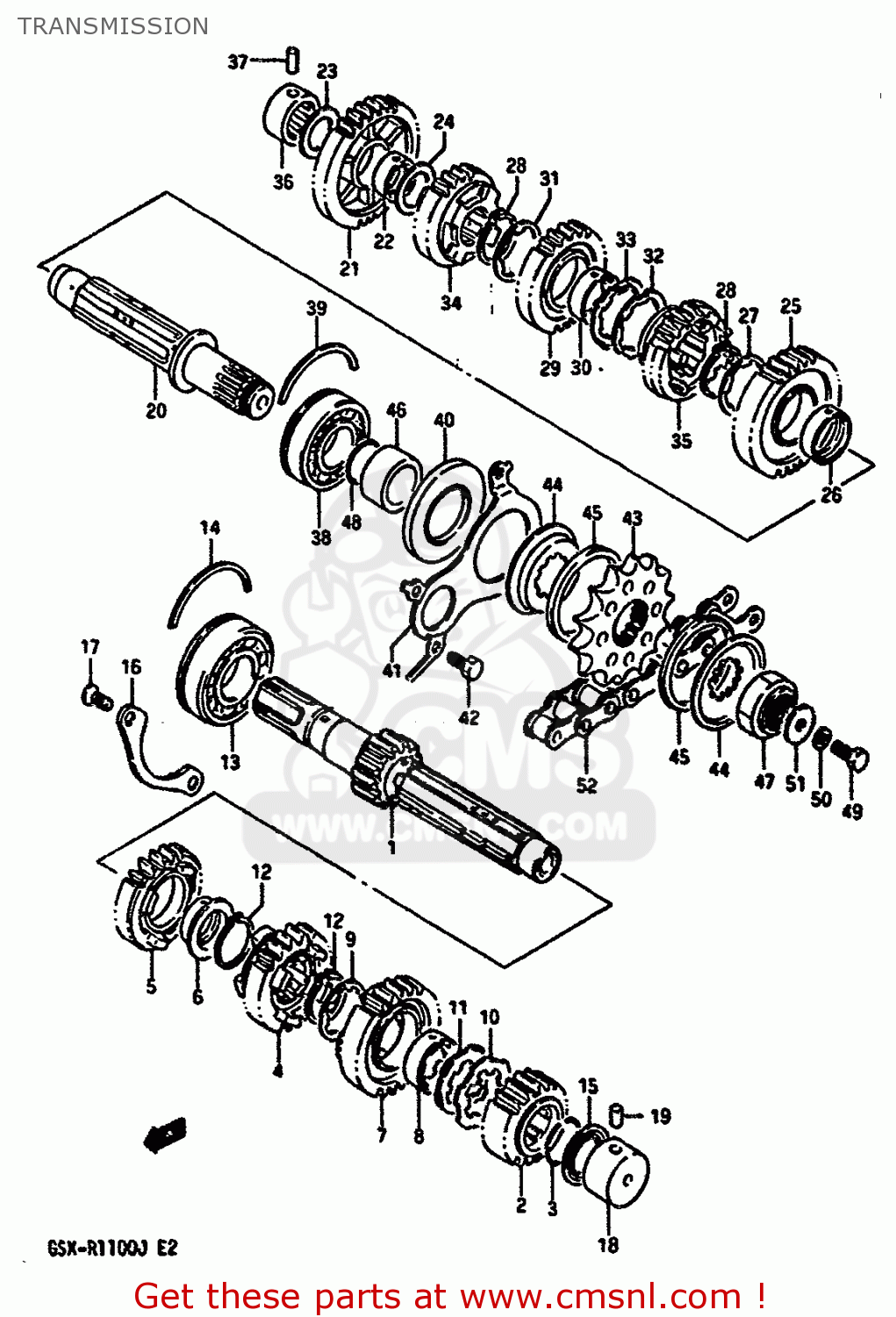

Transmission diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

TRANSMISSION GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2412106B02
ref: 1
FROM 24121-06B01
SHAFT,COUNTER
2412106B02
€ 180.50
2
2422106B01
ref: 2
GEAR,SECOND DRIVE
2422106B01
€ 90.00
3
0938025006
ref: 3
RING,SNAP
0938025006
€ 2.00
4-1
2423106B00
ref: 4-1
MODEL G,TO 24231-06B
GEAR,THIRD DRIVE
€ 174.50
4-2
2423106B01
ref: 4-2
~E.NO.U703-109133/U7
GEAR,THIRD DRIVE
€ 174.50
4-3
2423106B02
ref: 4-3
E.NO.U703-109134/U70
GEAR,THIRD DRIVE
€ 174.50
5
2424106B00
ref: 5
GEAR,FOURTH DRIVE
€ 162.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
2425106B01
ref: 7
GEAR,FIFTH DRIVE
2425106B01
€ 115.50
8
2425238A00
ref: 8
BUSHING
€ 10.50
9
0916725021
ref: 9
WASHER,LOCK
0916725021
€ 3.00
10
0916725013
ref: 10
WASHER,LOCK
0916725013
€ 2.50
11
0916925001
ref: 11
WASHER
0916925001
€ 2.00
12
0938025003
ref: 12
RING,SNAP
0938025003
€ 3.00
13
0926225051
ref: 13
BEARING(25X62X17)
0926225051
€ 59.50
14
0939062006
ref: 14
C-RING
0939062006
€ 5.00
15
0928520006
ref: 15
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
16
2474127A00
ref: 16
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
17
0212206167
ref: 17
SCREW
0212206167
€ 2.00
18
0926320049
ref: 18
BEARING(20X34X17.5)
0926320049
€ 58.00
19
0422107129
ref: 19
PIN
0422107129
€ 1.50
20-1
2413106B04
ref: 20-1
MODEL G/H FROM 24131
DRIVESHAFT
€ 226.00
20-2
2413106B05
ref: 20-2
MODEL J
SHAFT,DRIVE
€ 226.00
21
2431106B00
ref: 21
GEAR,FIRST DRIVEN
€ 109.00
22
0930022005
ref: 22
BUSHING
€ 19.50
23
0821120341
ref: 23
WASHER
0821120341
€ 2.00
24
0821122341
ref: 24
WASHER
0821122341
€ 3.00
25-1
2432106B00
ref: 25-1
MODEL G
GEAR,SECOND DRIVEN
€ 131.50
25-2
2432106B01
ref: 25-2
MODEL H/J
GEAR,2ND DRIVEN
2432106B01
€ 131.50
26
0930028002
ref: 26
BUSH(28X32X11)
0930028002
€ 15.50
27
0821128361
ref: 27
WASHER
0821128361
€ 3.50
28
0833111289
ref: 28
CIRCLIP
€ 2.50
29-1
2433106B01
ref: 29-1
MODEL G,TO 24331-06B
GEAR,THIRD DRIVEN
€ 113.00
29-2
2433106B02
ref: 29-2
~E.NO.U703-109140/U7
GEAR,THIRD DRIVEN
€ 113.00
29-3
2433106B03
ref: 29-3
E.NO.U703-109141/U70
GEAR,THIRD DRIVEN
2433106B03
€ 113.00
30
2433207A00
ref: 30
BUSH
2433207A00
€ 9.50
31
0916728001
ref: 31
WASHER,LOCK
0916728001
€ 3.00
32
0916728002
ref: 32
WASHER,LOCK
0916728002
€ 3.00
33
0916928001
ref: 33
WASHER
0916928001
€ 3.00
34
2434106B01
ref: 34
GEAR,FOURTH DRIVEN (NT:23)
2434106B01
€ 136.00
35
2435106B01
ref: 35
GEAR,5TH DRIVEN
2435106B01
€ 90.00
36
0926320040
ref: 36
BEARING(20X34X20)
0926320040
€ 42.50
37
0422107209
ref: 37
PIN
0422107209
€ 1.50
38
0926225095
ref: 38
BEARING
€ 76.50
39
0939062006
ref: 39
C-RING
0939062006
€ 5.00
40
0928334005
ref: 40
SEAL,OIL(34X62X6)
0928334005
€ 14.50
41
2475127A00
ref: 41
RETAINER,DRIVESHAFT O
2475127A00
€ 8.00
42
0110706108
ref: 42
BOLT
€ 2.00
43-1
2751106B10
ref: 43-1
MODEL G/H
SPROCKET,ENGINE
2751106B10
€ 25.00
43-2
2751106B12
ref: 43-2
MODEL J
SPROCKET,ENGINE(NT:14)
2751106B12
€ 25.00
43-3
2751148B01
ref: 43-3
OPT
SPROCKET,ENGINE (NT:15)
€ 21.00
44
2751631301
ref: 44
HOLDER,SPROCKET DAMPER
2751631301
€ 3.50
45
2751706B00
ref: 45
DAMPER,ENGINE SPROCKET
2751706B00
€ 14.50
46
0918025081
ref: 46
SPACER (25X34X18.1)
€ 23.50
47
0915920004
ref: 47
NUT
0915920004
€ 12.00
48
0928025001
ref: 48
O RING(D:1,ID:24.5)
0928025001
€ 2.50
49
0110706167
ref: 49
BOLT
0110706167
€ 3.00
50
0832131067
ref: 50
WASHER,LOCK
0832131067
€ 2.50
51
0821206222
ref: 51
WASHER
0821206222
€ 1.50
52
2760006B11114
ref: 52
CHAIN ASSEMBLY,DRIVE
2760006B11114
€ 307.50
