STEERING STEM

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

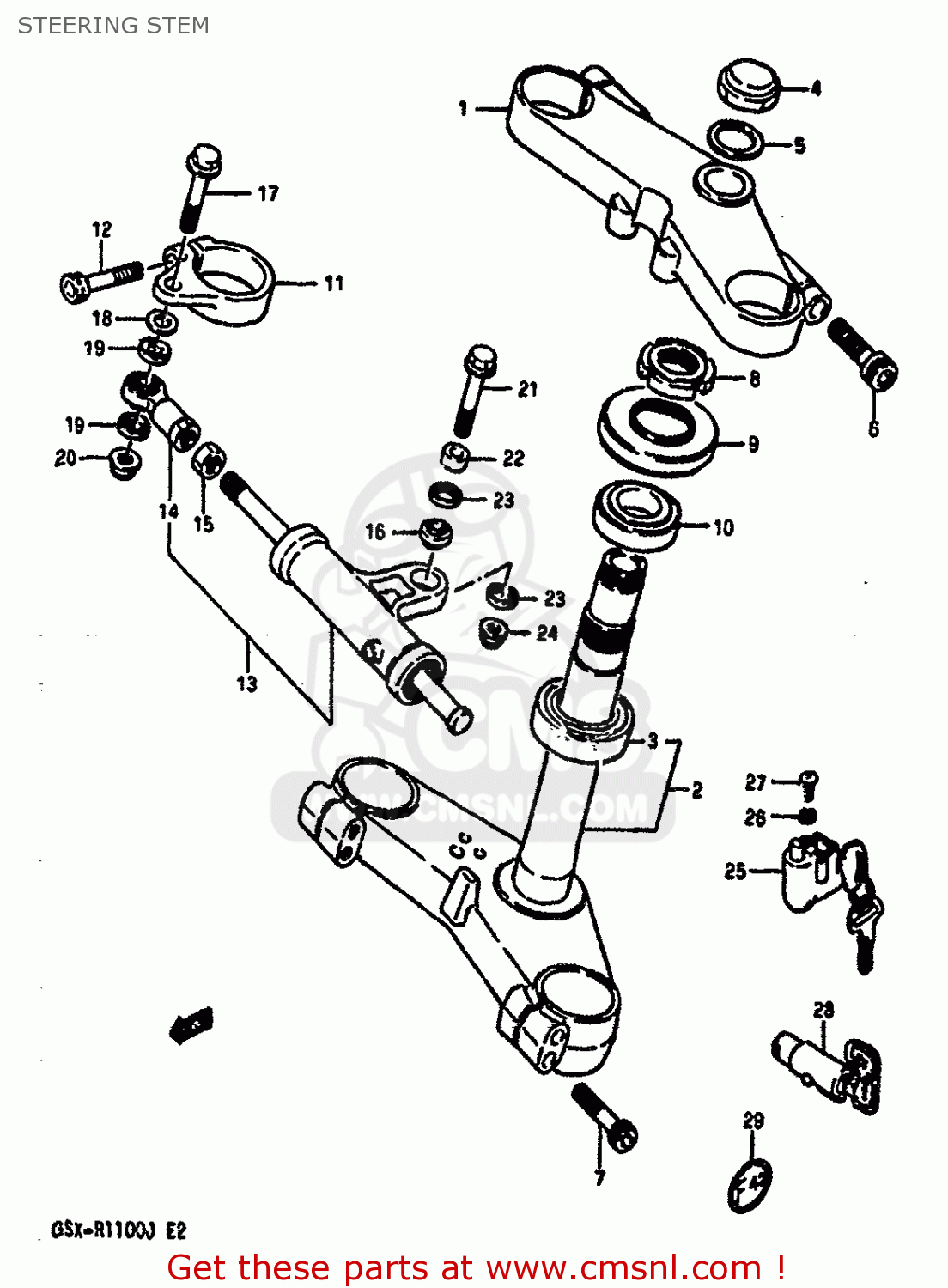

Steering stem diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

STEERING STEM GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
STEERING STEM GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
STEERING STEM GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
5131106B00291
ref: 1
STEM HEAD,STEERING
5131106B00291
€ 233.50
2
5141006B10
ref: 2
STEM,STEERING
5141006B10
€ 357.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4-1
5135327A00
ref: 4-1
MODEL G
NUT,STEM HEAD
5135327A00
€ 30.00
4-2
5135327A80
ref: 4-2
MODEL H/J
NUT,STEM HEAD
€ 30.00
5
5135627A00
ref: 5
WASHER,STEERING STEM
5135627A00
€ 3.00
6
5135200A00
ref: 6
BOLT,FORK INNER TUBE FITTING
5135200A00
€ 6.00
7
0711008408
ref: 7
BOLT
€ 3.50
8
5163128000
ref: 8
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
9
0928534006
ref: 9
SEAL OIL
€ 16.50
10
0926525008
ref: 10
TAPER,ROLLER BEARING
0926525008
€ 48.50
11-1
5175627A30
ref: 11-1
MODEL G/H
BRACKET,STEERING DAMPER
€ 119.00
11-2
5175627A31
ref: 11-2
MODEL J
BRACKET,STEERING DAMPER
5175627A31
€ 119.00
12
0711008408
ref: 12
BOLT
€ 3.50
13
5175027A60
ref: 13
FROM 51750-27A32
DAMPER ASSY, STEERING
5175027A60
€ 547.50
14
5175427A31
ref: 14
BEARING, LOD END
5175427A31
€ 111.50
15
0831011108
ref: 15
NUT
0831011108
€ 2.50
16
0926908002
ref: 16
BEARING(8X18X11)
0926908002
€ 39.50
17
0910308107
ref: 17
BOLT(8X33)
0910308107
€ 2.50
18
0832211088
ref: 18
WASHER
0832211088
€ 2.00
19
6433940410
ref: 19
6433940410
20
0831931087
ref: 20
NUT
0831931087
€ 2.50
21
0910308043
ref: 21
BOLT(8X45)
0910308043
€ 4.50
22
0918008132
ref: 22
SPACER (8.5X15X10)
€ 3.50
23
6433940410
ref: 23
6433940410
24
0831931087
ref: 24
NUT
0831931087
€ 2.50
25
5190008014KEY
ref: 25
LOCK ASSY,STEERING
5190008014KEY
€ 30.50
26
0832121057
ref: 26
LOCK WASHER
0832121057
€ 2.00
27
0211205208
ref: 27
SCREW 5X20
0211205208
€ 3.00
28
5190022662
ref: 28
E15,E17,E22
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
29
5191545000
ref: 29
E17
LABEL,STEERING LOCK
5191545000
€ 1.50
