REAR WHEEL (MODEL J)

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

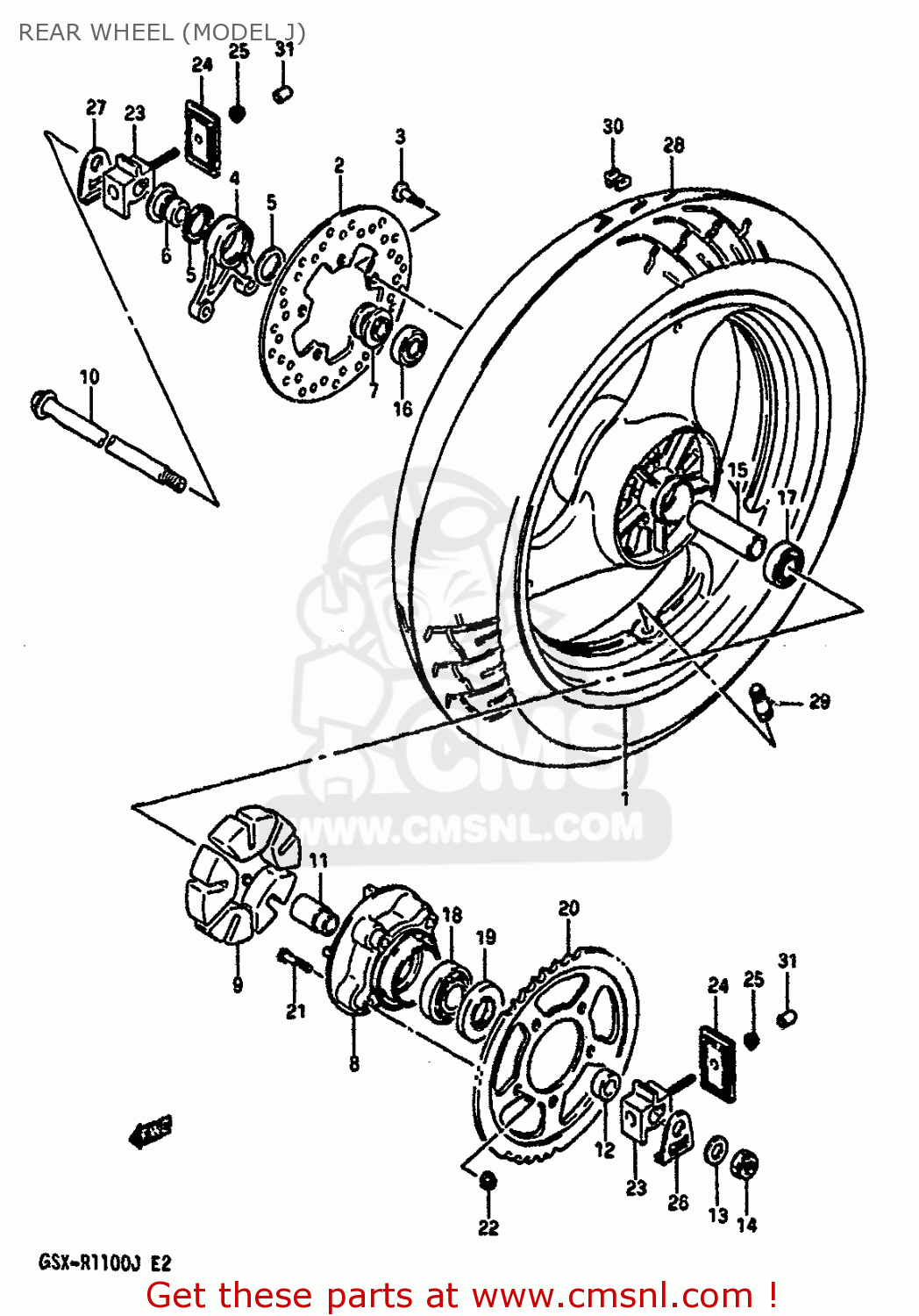

Rear wheel (model j) diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

REAR WHEEL (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
REAR WHEEL (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
REAR WHEEL (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
6411106B1028W
ref: 1-1
FOR 9HD,9SR
WHEEL,REAR (18XMT4.50)
€ 784.50
1-2
6411106B10291
ref: 1-2
FOR 13Z
WHEEL,REAR (18XMT4.50) BLACK
€ 784.50
2
6921127A00
ref: 2
DISC,RR BRAKE
6921127A00
€ 389.00
3
0910608062
ref: 3
BOLT
0910608062
€ 6.00
4
6972027A01
ref: 4
BRACKET,RR CALIPER
6972027A01
€ 86.50
5
0928528002
ref: 5
SEAL,OIL(28X35X5)
0928528002
€ 9.50
6
6941227A00
ref: 6
SPACER,RR CALIPER BRACKET
6941227A00
€ 45.50
7
6474048B00
ref: 7
SPACER,RR AXLE,R
6474048B00
€ 43.00
8
6461117C00
ref: 8
DRUM,REAR SPROCKET MOUNT
€ 159.00
9
6465127A01
ref: 9
ABSORBER,RR HUB SHOCK
6465127A01
€ 6.00
10
6471106B10
ref: 10
AXLE,REAR
6471106B10
€ 67.50
11
6473327A00
ref: 11
RETAINER,RR HUB BEARING
6473327A00
€ 18.50
12
6475127A00
ref: 12
SPACER,RR AXLE,L
6475127A00
€ 21.50
13
0832211188
ref: 13
WASHER
0832211188
€ 2.50
14
0915918009
ref: 14
NUT 18MM
€ 23.00
15
0918020104
ref: 15
SPACER(20.8X27.2X97)
0918020104
€ 22.50
16
0812362047
ref: 16
BEARING
0812362047
€ 17.00
17
0926220042
ref: 17
BEARING(20X47X14)
0926220042
€ 21.00
18
0926225073
ref: 18
BEARING(25X62X17)
0926225073
€ 21.50
19
0928535001
ref: 19
SEAL,OIL(35X62X8)
0928535001
€ 9.00
20-1
6451106B30
ref: 20-1
E2,E18,E21,E22,E25,E
SPROCKET,RR(45T)
€ 65.00
20-2
6451106B10
ref: 20-2
E4,E6,E15,E16,E17,E2
SPROCKET,REAR
6451106B10
€ 78.00
21
0910510007
ref: 21
BOLT(10X44)
0910510007
€ 3.00
22
0831931107
ref: 22
NUT
0831931107
€ 3.00
23
6141006B00
ref: 23
ADJUSTER,CHAIN
6141006B00
€ 31.00
24
6142106B00
ref: 24
PLATE,CHAIN ADJUSTER GUIDE
6142106B00
€ 17.00
25
0831931087
ref: 25
NUT
0831931087
€ 2.50
26
6144506B00
ref: 26
WASHER,CHAIN ADJUSTER
€ 6.00
27
6145506B00
ref: 27
WASHER,CHAIN ADJUSTER
6145506B00
€ 6.00
28
6510006B30
ref: 28
DUNLOP
TIRE COMP,TUBELESS 160
€ 0.00
29
4313075150
ref: 29
VALVE,TIRE
€ 14.50
30-1
5541100A00
ref: 30-1
BALANCER,WHEEL (10G)
€ 6.50
30-2
5541200A00
ref: 30-2
BALANCER,WHEEL
€ 7.00
30-3
5541300A00
ref: 30-3
BALANCER,WHEEL
€ 4.00
31
6144233300
ref: 31
E22
CAP,CHAIN ADJUSTER
6144233300
€ 6.00
32-4
5541100A00
ref: 32-4
MODEL H
BALANCER,WHEEL (10G)
€ 6.50
32-5
5541200A00
ref: 32-5
MODEL H
BALANCER,WHEEL
€ 7.00
32-6
5541300A00
ref: 32-6
MODEL H
BALANCER,WHEEL
€ 4.00
33
6144233300
ref: 33
E22
CAP,CHAIN ADJUSTER
6144233300
€ 6.00
