CYLINDER HEAD COVER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

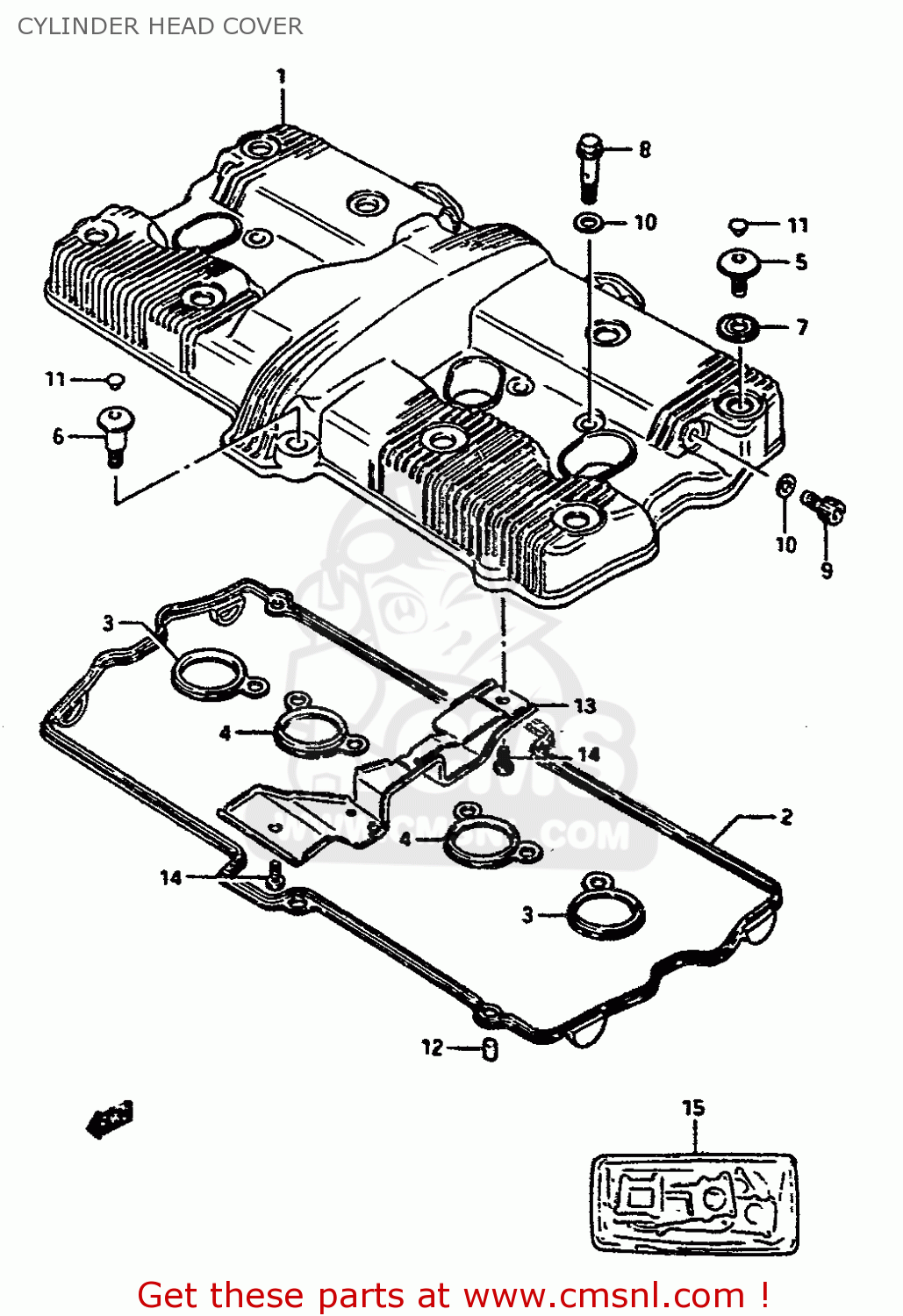

Cylinder head cover diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1117006B05
ref: 1

COVER,CYLINDER HEAD

€ 367.50

1117306B01
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.50

1117827A00
ref: 3

GASKET (NAS)

€ 5.50

1117927A01
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

0916111006
ref: 7

WASHER

€ 4.50

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

0711008125
ref: 9

PLUG, HEAD COVER

€ 2.50

0916808008
ref: 10

GASKET 8.2X14X1 (NAS)

€ 1.00

0925006008
ref: 11

CAP(OD:10)

€ 3.00

0422108129
ref: 12

PIN

€ 2.00

1118006B00
ref: 13

COVER,BREATHER

€ 8.50

0110705127
ref: 14

BOLT 5X12

€ 2.00

15-1

1140006850
ref: 15-1
OPT,MODEL G

GASKET SET (MCA)

€ 292.50

15-2

1140006854
ref: 15-2
OPT,MODEL H

GASKET SET

€ 292.50

15-3

1140006855
ref: 15-3
OPT,MODEL J

GASKET SET

€ 292.50
